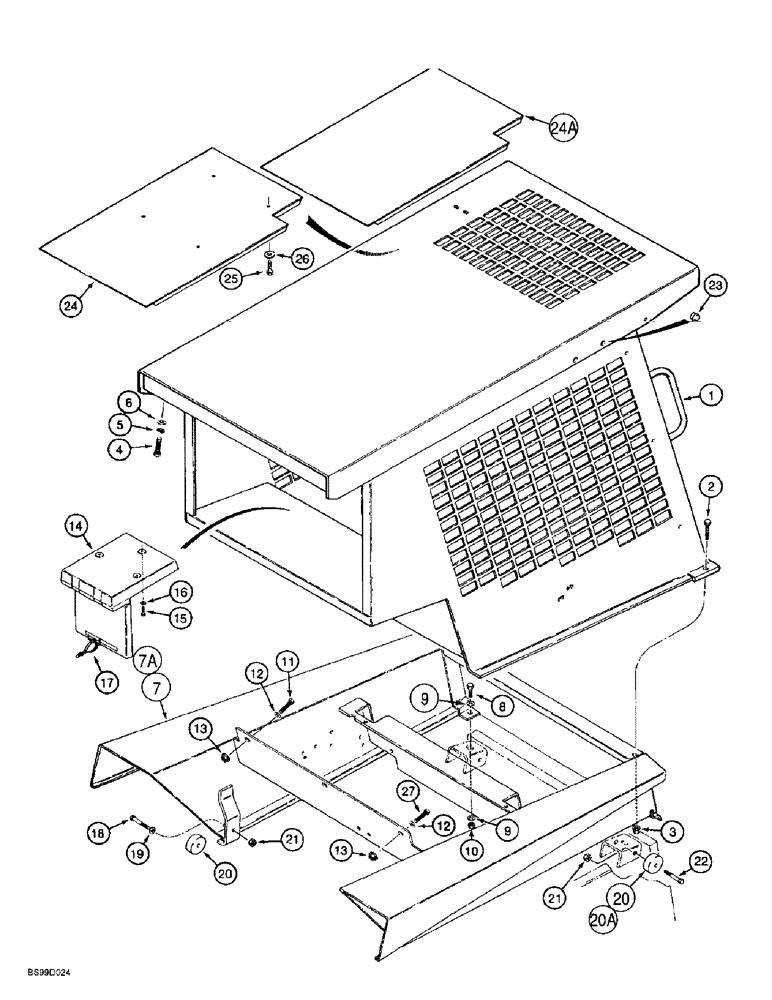

Запчасти Case 1838 (9-28) - ROPS (09) - CHASSIS/ATTACHMENTS

1

132853A1

FRAME ASSY

FRAME ROPS, see kits below

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

flat, hardened, 17/32 x 1-1/4 x 3/16 inch

2шт.

7

131280A1

ROD ASSY.

POD ROPS frame, no longer used, order 131280A2

1шт.

7a

131280A2

FRAME

POD ROPS frame, Replaces: 131280A1

1шт.

8

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

10

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

11

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

12

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

flat, hardened, 11/32 x 11/16 x 1/16 inch, Replaces H426775

3шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

3шт.

14

R46464

CASE

BOX operators manual

1шт.

15

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

hex, 1/4 NC x 1 inch

3шт.

16

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

20

H439107

ROLLER

ROPS support, white plastic, no longer used, order 237575A1

4шт.

20a

237575A1

ROLL

ER ROPS support, white plastic, 44.8 OD x 19 mm thick, Replaces: H439107

4шт.

21

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

22

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, 3/8 NC x 2-1/2 inch

2шт.

23

353-405

PLUG,Dome, .562" hole, Nylon

button, 9/16 inch, if used

2шт.

24

H438906

PANEL

HEADLINER ROPS, brown, no longer used, order 179278A3

1шт.

24a

179278A3

INSULATOR

HEADLINER ROPS, gray, Replaces: H438906, 179278A1 and 179278A2

1шт.

25

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Use with Ref. 24, if used Hex, 1/4"-20 x 1 1/2", G5

4шт.

26

D136108

WASHER

special, hardened, use with Ref. 24, if used

4шт.

27

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

137957A1

KIT service, ROPS, brown, order from Machinery Price List, Includes: Ref. 1 above, manual storage box, and 8 decals listed on Figures 9-32 and 9-34I

1шт.

189619A1

KIT service, ROPS, gray, order from Machinery Price List, Includes: Ref. 1 above, manual storage box, and 8 decals listed on Figures 9-32 and 9-34

1шт.
