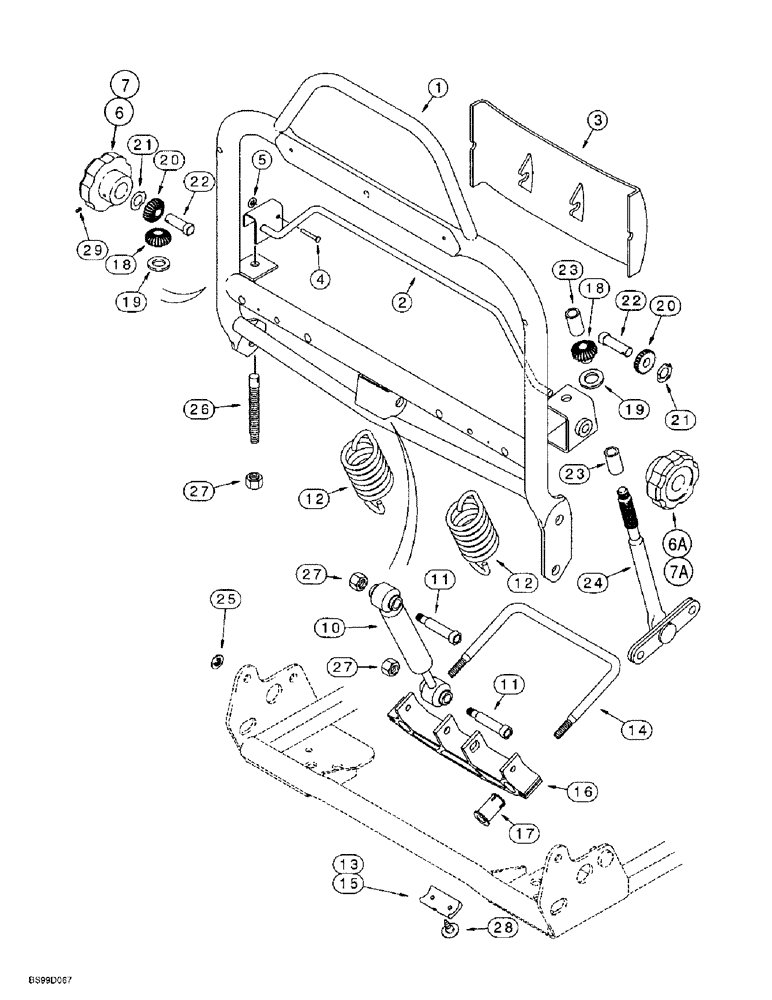

Запчасти Case 1838 (9-27A) - DELUXE OPERATORS SEAT, BASE AND ADJUSTING PARTS (09) - CHASSIS/ATTACHMENTS

308307A1

SEAT

ASSEMBLY, operators, deluxe, gray, Includes: Figures 9-23A and 9-27E, Includes Ref. 1, 6, 6A, 26-29 and P/N 291765A1, 291756A1, 291748A1, 291749A1, 291761A1, 291754A1, 291766A1

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME backrest

1шт.

291765A1

ASSEMBLY

KIT lumbar, Includes Ref. 2-5

1шт.

2

NSS

NOT SOLD SEPARAT

CRANK

1шт.

3

NSS

NOT SOLD SEPARAT

SUPPORT lumbar

1шт.

4

NSS

NOT SOLD SEPARAT

PIN

1шт.

5

NSS

NOT SOLD SEPARAT

NUT special

1шт.

6

361107A1

KIT

knob, lumbar adjustment, used with seats prior to seat serial number 29436

1шт.

Seat serial number is found on a gray decal, with black lettering, on the lower portion of the backrest.

1шт.

6a

361106A1

KIT

knob, recliner, used with seats prior to seat serial number 29436

1шт.

Seat serial number is found on a gray decal, with black lettering, on the lower portion of the backrest.

1шт.

291756A1

ASSEMBLY

KIT knob, used with seat serial number 29436 and after, Includes Ref. 7-9

1шт.

Seat serial number is found on a gray decal, with black lettering, on the lower portion of the backrest.

1шт.

7

NSS

NOT SOLD SEPARAT

KNOB lumbar adjustment

1шт.

7a

NSS

NOT SOLD SEPARAT

KNOB recliner

1шт.

291767A1

ASSEMBLY

KIT emblem

1шт.

8

NSS

NOT SOLD SEPARAT

EMBLEM lumbar, not shown

1шт.

9

NSS

NOT SOLD SEPARAT

EMBLEM recliner, not shown

1шт.

291748A1

ASSEMBLY

KIT shock, Includes Ref. 10-11

1шт.

10

NSS

NOT SOLD SEPARAT

SHOCK

1шт.

11

NSS

NOT SOLD SEPARAT

PIN

2шт.

291749A1

ASSEMBLY

KIT spring, Includes Ref. 12-13

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING

2шт.

13

NSS

NOT SOLD SEPARAT

BUSHING spring arm

2шт.

291761A1

ASSEMBLY

KIT spring, Includes Ref. 14-17

1шт.

14

NSS

NOT SOLD SEPARAT

ARM spring

1шт.

15

NSS

NOT SOLD SEPARAT

BUSHING spring arm

2шт.

16

NSS

NOT SOLD SEPARAT

SADDLE

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING saddle

2шт.

REF

INSTRUCTION

SEAT ASSEMBLY, operators, deluxe, gray

1шт.

291754A1

ASSEMBLY

KIT gear, Includes Ref. 18-23

2шт.

18

NSS

NOT SOLD SEPARAT

NUT

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER thrust

1шт.

20

NSS

NOT SOLD SEPARAT

GEAR bevel

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER spring

1шт.

22

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

23

NSS

NOT SOLD SEPARAT

BUSHING if equipped

2шт.

291766A1

ASSEMBLY

KIT, Includes Ref. 24-25

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW ASSY

1шт.

25

NSS

NOT SOLD SEPARAT

NUT special

1шт.

26

291771A1

ADJUSTMENT SCREW

adjuster

1шт.

27

NSS

NOT SOLD SEPARAT

NUT

3шт.

28

NSS

NOT SOLD SEPARAT

BOLT special

4шт.

29

NSS

NOT SOLD SEPARAT

SETSCREW if used

2шт.
