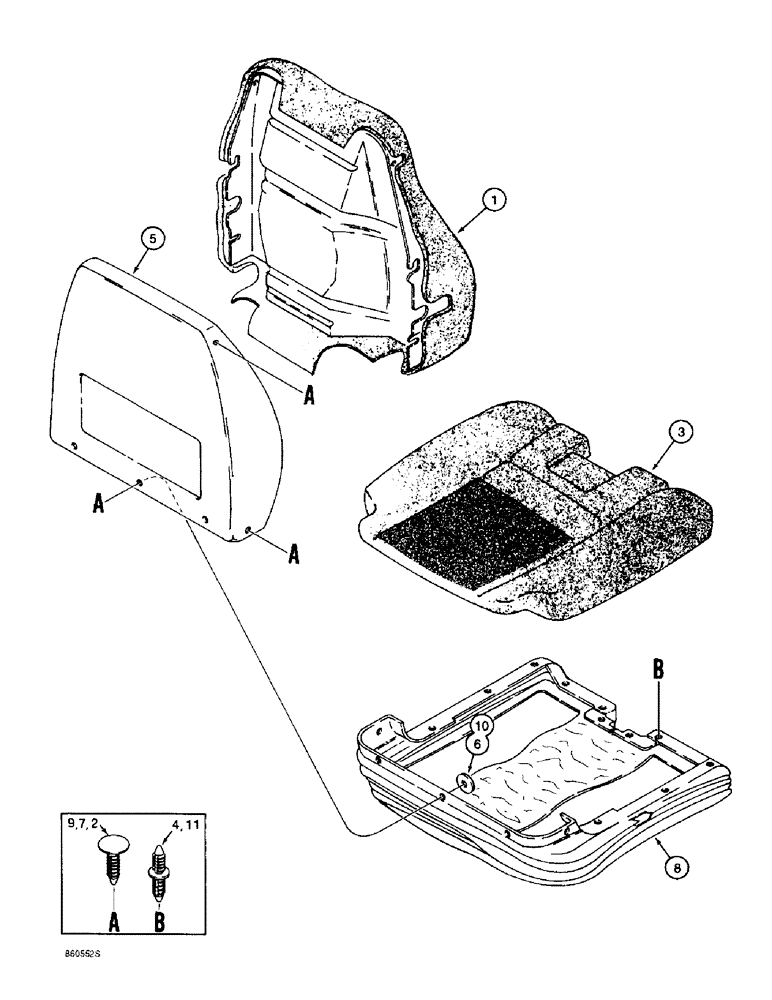

Запчасти Case 1838 (9-22) - DELUXE OPERATORS SEAT, CUSHIONS AND SHELL (09) - CHASSIS/ATTACHMENTS

D129790

SEAT

ASSEMBLY, operators, deluxe, brown vinyl, Includes: mechanical parts on Figures 9-25 and 9-27

1шт.

178764A1

SEAT

ASSEMBLY, operators, deluxe, gray vinyl, Includes: mechanical parts on Figures 9-25 and 9-27, if used, Includes P/N N13724, N13723, 222260A1, N13729, N13727

1шт.

N13724

SET OF PARTS

KIT backrest cushion, brown, Includes instruction sheet

1шт.

222261A1

BACKREST COVER

KIT backrest cushion, gray, Includes instruction sheet1-2

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION backrest

1шт.

2

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

2шт.

N13723

SET OF PARTS

KIT seat cushion, brown, Includes instruction sheet

1шт.

222260A1

CUSHION, SEAT

KIT seat cushion, gray, Includes instruction sheet, Includes Ref. 3-4

1шт.

3

NSS

NOT SOLD SEPARAT

CUSHION seat

1шт.

4

N13712

CLIP,ELECTRICAL

CLIP rubber cover, retaining

12шт.

N13729

SET OF PARTS

KIT shell, backrest, Includes instruction sheet, Includes Ref. 5-7

1шт.

5

NSS

NOT SOLD SEPARAT

SHELL backrest

1шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

5шт.

7

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

7шт.

N13727

SET

KIT rubber cover, lower seat, Includes instruction sheet, Includes Ref. 8-11

1шт.

8

NSS

NOT SOLD SEPARAT

COVER lower seat

1шт.

9

N13703

CLIP,ELECTRICAL

CLIP backrest shell, retaining

5шт.

10

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

5шт.

11

N13712

CLIP,ELECTRICAL

CLIP rubber cover, retaining

12шт.
