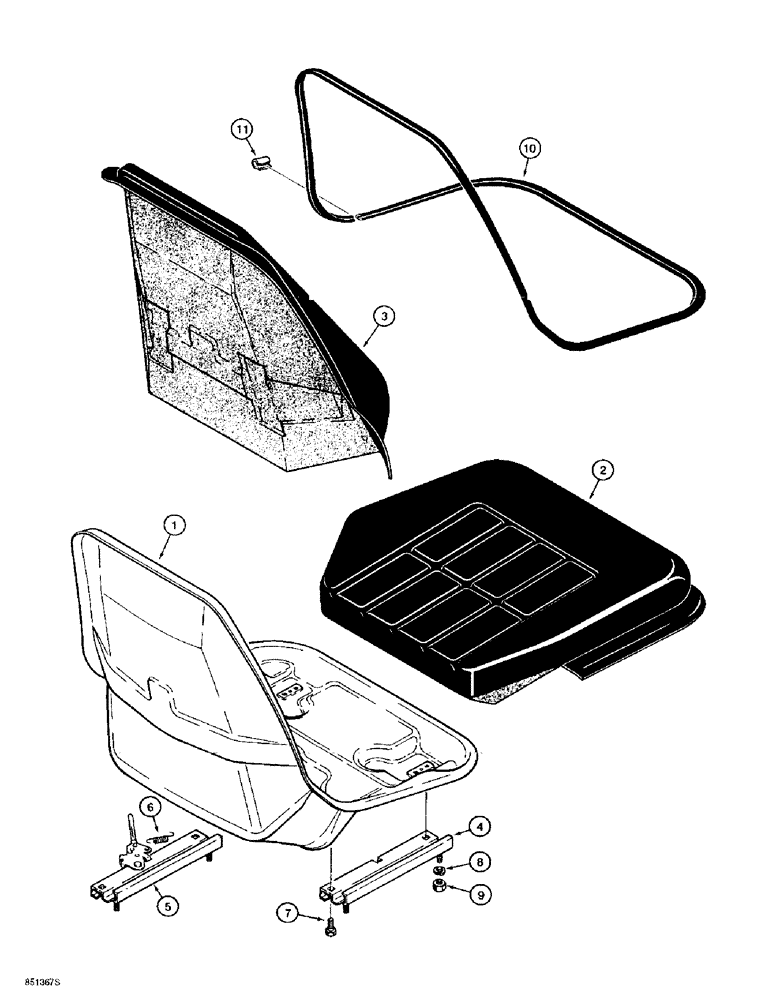

Запчасти Case 1838 (9-20) - STANDARD OPERATORS SEAT (09) - CHASSIS/ATTACHMENTS

D124515

SEAT ASSY.

SEAT ASSEMBLY, operators, brown vinyl, molded shell, standard

1шт.

178763A1

SEAT

ASSEMBLY, operators, gray vinyl, molded shell, standard, no longer used, order 302139A1

1шт.

302139A1

SEAT

ASSEMBLY, operators, gray vinyl, molded shell, production only, service with 308306A1, Includes Ref. 1-11

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL seat

1шт.

2

N8462

CUSHION

KIT seat cushion, brown vinyl, Includes: N7802 clip kit

1шт.

2a

190875A1

CUSHION, SEAT

KIT seat cushion, gray vinyl, Includes: N7802 clip kit, same in appearance as Ref. 2

1шт.

3

N8461

CUSHION

KIT backrest cushion, brown vinyl, Includes: N7802 clip kit

1шт.

3a

190874A1

BACKREST COVER

KIT backrest cushion, gray vinyl, Includes: N7802 clip kit, same in appearance as Ref. 3

1шт.

4

N13607

ADJUSTER

SLIDE seat, right hand

1шт.

N13606

ADJUSTER

SLIDE seat, left hand, adjustment side, Includes Ref. 5-6

1шт.

5

NSS

NOT SOLD SEPARAT

SLIDE seat

1шт.

6

D56889

SPRING

adjustment lever

1шт.

7

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

hex, 5/16 NC x 5/8 inch

4шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

10

N14614

GASKET

TRIM edge

1шт.

11

NSS

NOT SOLD SEPARAT

CLIP retainer, order N7802 clip kit, see below

1шт.

Part of clip kit N7802

1шт.

308306A1

SEAT

ASSEMBLY, operators, gray vinyl, molded shell, with operator presence switch, Includes Ref. 12

1шт.

12

242306A2

SWITCH

operator presence, not shown

1шт.

13

302137A2

HARNESS

seat, operator presence switch, not shown

1шт.

345-44

ADHESIVE

spray can, 3M No. 74, 23 ounce, not shown

1шт.

N7802

CLIP

KIT clip, Includes: Ref. 11 clip above plus 6 additional narrow clips

1шт.

See Figures 9-22 through 9-27E for the deluxe operators seat.
