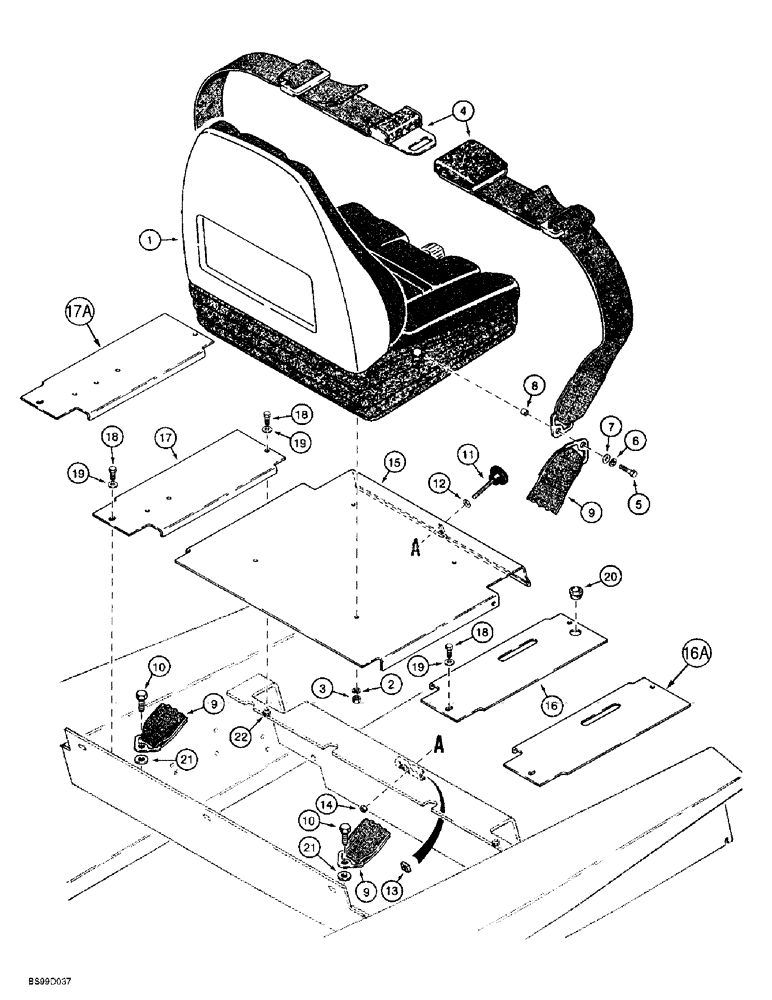

Запчасти Case 1838 (9-18) - DELUXE SEAT MOUNTING AND SEAT BELTS, PRIOR TO P.I.N. JAF0222205 (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT ASSEMBLY, operators, deluxe, see Figures 9-22 thru 9-27E for seat options and components

1шт.

2

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

4

H438265

SAFETY BELT

SAFETY BELT, Non-retractable, 76 mm, 3 inch wide

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

8

D34242

SPACER

belt mounting

2шт.

9

D127382

SAFETY BELT

SAFETY BELT, Support to seat, 238 mm, 9-3/8 inch long

2шт.

10

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

11

D133068

KNOB

seat adjusting

1шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

13

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

1шт.

14

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

15

H435910

PLATE

seat mounting

1шт.

16

121042A1

COVER

PANEL right hand closure, Prior to P.I.N. JAF0130838

1шт.

16a

133620A1

COVER

PANEL right hand closure, P.I.N. JAF0130838 and After

1шт.

17

121043A1

COVER

PANEL left hand closure, Prior to P.I.N. JAF0130838

1шт.

17a

133621A1

COVER

PANEL left hand closure, P.I.N. JAF0130838 and After

1шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

19

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

flat, hardened, 11/32 x 11/16 x 1/16 inch, Replaces H426775

4шт.

20

F64486

GROMMET

BUSHING snap, closure panels, 3/4 inch ID, used with Ref. 16 only

1шт.

21

495-21069

WASHER,5/8"

flat, 11/16 x 1-3/4 x 9/64 inch

2шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.
