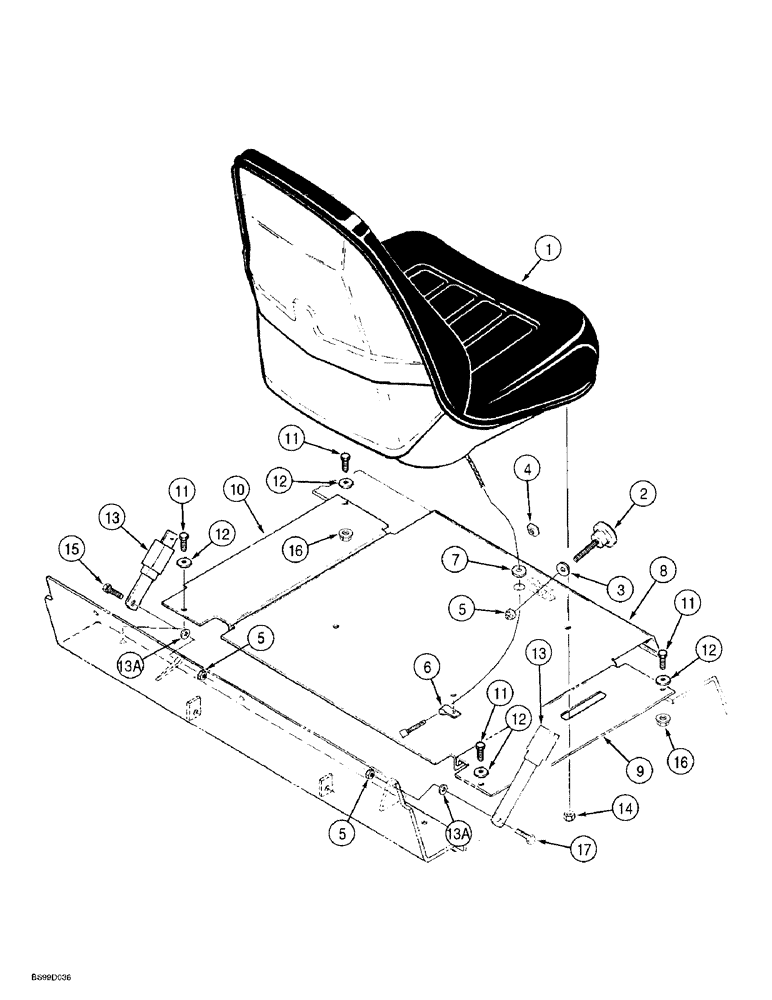

Запчасти Case 1838 (9-17A) - STANDARD SEAT MOUNTING AND SEAT BELTS, P.I.N. JAF0222205 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT ASSEMBLY, operators, standard, molded shell, see Figure 9-20 for seat options and component parts

1шт.

2

D133068

KNOB

seat adjusting

1шт.

3

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

4

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

1шт.

5

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

3шт.

6

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type 3/8", Insul, 5/16" Bolt

1шт.

7

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

Rubber 1/4" ID x 1" Groove Dia, Diag Cut

1шт.

8

295896A2

LARGE PLATE

PLATE seat mounting, Replaces: 295896A1

1шт.

9

133620A1

COVER

PANEL right hand closure

1шт.

10

133621A1

COVER

PANEL left hand closure

1шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

12

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

flat, hardened, 11/32 x 11/16 x 1/16 inch

4шт.

13

249116A1

SAFETY BELT ,50.80 mm W

SAFETY BELT, , Retractable, Includes Ref. 13A 50.80 mm W

1шт.

13a

NSS

NOT SOLD SEPARAT

WASHER supplied with seat belt

2шт.

14

832-41308

NUT,M8 x 1.25, Cl 10

hex, self locking, 8 mm, 1.25 inch, class 10.9

4шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

1шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.
