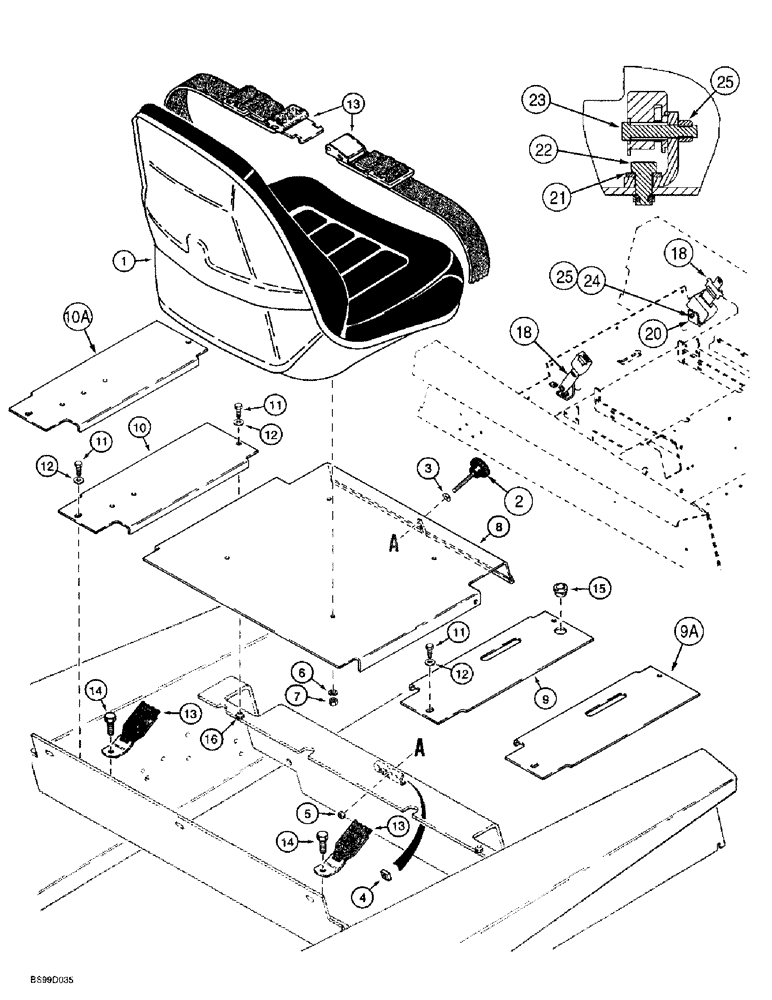

Запчасти Case 1838 (9-16) - STANDARD SEAT MOUNTING & SEAT BELTS PRIOR TO P.I.N. JAF0222205 (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SEAT ASSEMBLY, operators, standard, molded shell, see Figure 9-20 for seat options and component parts

1шт.

2

D133068

KNOB

seat adjusting

1шт.

3

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

4

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

1шт.

5

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

8

H435910

PLATE

seat mounting

1шт.

9

121042A1

COVER

PANEL right hand closure, Prior to P.I.N. JAF0130838

1шт.

9a

133620A1

COVER

PANEL right hand closure, P.I.N. JAF0130838 and After

1шт.

10

121043A1

COVER

PANEL left hand closure, Prior to P.I.N. JAF0130838

1шт.

10a

133621A1

COVER

PANEL left hand closure, P.I.N. JAF0130838 and After

1шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

12

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

flat, hardened, 11/32 x 11/16 x 1/16 inch, Replaces H426775

4шт.

13

D133868

SAFETY BELT ,2.00" W

Non retractable 2.00" W

1шт.

13a

H438265

SAFETY BELT

SAFETY BELT, Non-retractable, Not shown, 76 mm, 3 inch wide

1шт.

14

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

15

F64486

GROMMET

BUSHING snap, closure panels, 3/4 inch ID, used with Ref. 9 only

1шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.

17

495-21069

WASHER,5/8"

flat, not shown, 11/16 x 1-3/4 x 9/64 inch, if used

2шт.

321827A1

SET OF PARTS

KIT retractable seat belt, installation instructions included, Includes Ref. 18, 20-25

1шт.

18

249116A1

SAFETY BELT ,50.80 mm W

SAFETY BELT, , Retractable, Includes Ref. 19 50.80 mm W

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER supplied with seat belt, not shown

1шт.

20

321289A1

WELDABLE LUG

LUG mounting

2шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

flat, hardened, 17/32 x 1-1/16 x 1/8 inch

2шт.

22

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

1шт.

25

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.
