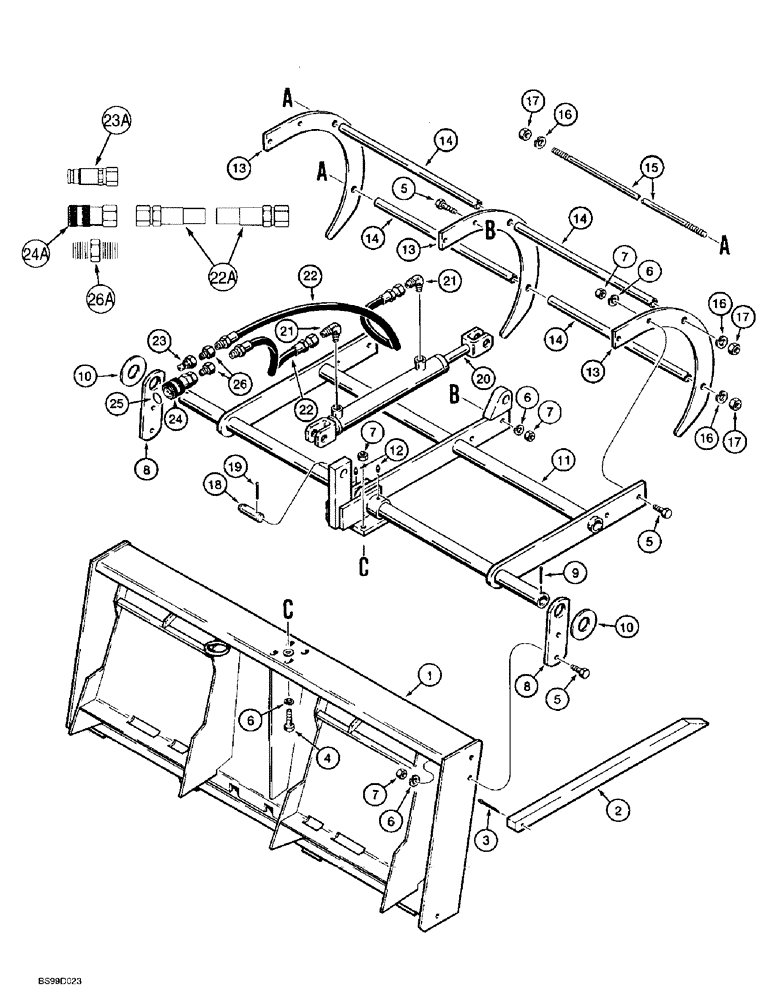

Запчасти Case 1838 (9-14) - MANURE FORK & GRAPPLE (09) - CHASSIS/ATTACHMENTS

1

H673761

FORK

FRAME manure fork, Case coupler

1шт.

2

D64911

TINE

manure

11шт.

3

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

11шт.

4

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Grapple attachment Hex, 1/2"-13 x 1 3/4", G5

4шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Grapple attachment Hex, 1/2"-13 x 1 1/2", G5, Full Thd

10шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Grapple attachment 1/2"

14шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Grapple attachment 1/2"-13, G5

14шт.

8

D64908

BRACE

pivot, grapple attachment

2шт.

9

432-1640

COTTER PIN,1/4" x 2 1/2"

grapple attachment 1/4" x 2 1/2"

2шт.

10

495-31175

WASHER 1.750 x 3.750 x .180, grapple attachment

2шт.

11

H673248

FRAME

grapple, attachement

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch, grapple attachment

2шт.

13

D64909

FORK

grapple, attachment

3шт.

14

D64907

BUSHING

SPACER fork, grapple attachment

4шт.

15

D64912

ROD

tie, fork, grapple attachment

2шт.

16

492-11075

LOCK WASHER,3/4"

grapple attachment 3/4"

4шт.

17

425-1012

NUT,3/4"-10, G5

Grapple attachment 3/4"-10, G5

4шт.

18

D61036

PIN

pivot, grapple attachment

2шт.

19

432-1024

COTTER PIN,5/32" x 1 1/2"

grapple attachment 5/32" x 1 1/2"

4шт.

20

D61075

CYLINDER

ASSEMBLY, 51 mm, 2 inch ID x 203 mm, 8 inch stroke, parts list Figure 8-30, grapple attachment

1шт.

21

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

90 degree, 3/4-16 flare x 1/2 inch PT, grapple attachment

2шт.

22

D66596

HOSE

rod end of cylinder, 1676 mm, 66 inch long, if used, grapple attachment

2шт.

22a

D51685

HOSE

rod end of cylinder, 1676 mm, 66 inch long, Replaces: D66596, grapple attachment

2шт.

23

1272770C2

COUPLING, BREAK AWAY

COUPLING quick disconnect, male, use with Ref. 22, if used, grapple attachment

1шт.

23a

238243A1

COUPLING, BREAK AWAY

COUPLING quick disconnect, male, use with Ref. 22A, if used, Replaces: 1272770C2 and 122180A1, grapple attachment

2шт.

24

H436396

COUPLING

COUPLER self sealing, female, use with Ref. 22, if used, Includes Ref. 25, grapple attachment

1шт.

25

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Use with Ref. 22, if used, Replaces: 350684R1, grapple attachment -210, 70 Duro, .734" ID x .139" Thk

1шт.

24a

143431A1

COUPLING, QUICK, FEM

COUPLING quick disconnect, female, use with Ref. 22A, if used, Replaces: H436396 and 238-5210, grapple attachment

1шт.

26

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

pipe, 1/2 male x 3/8 inch female, use with Ref. 22, if used, grapple attachment

2шт.

26a

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, use with Ref 22A, if used, Replaces 221-89, grapple attachment 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.
