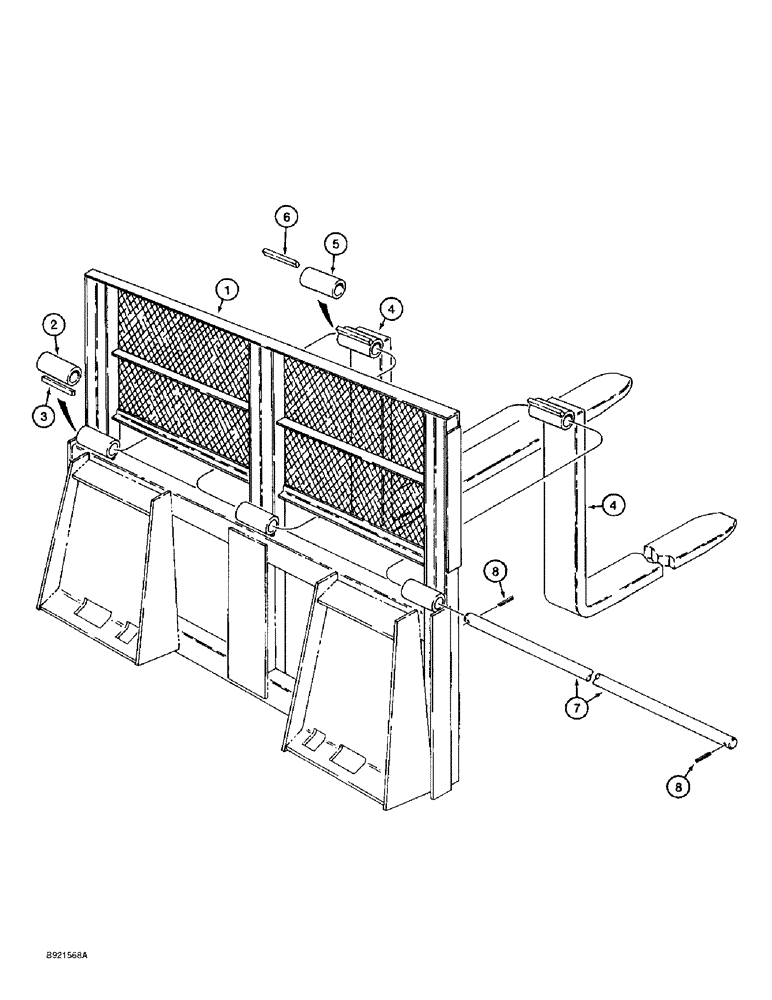

Запчасти Case 1838 (9-12) - PALLET FORK, BRICK GUARD AND FRAME, MODELS WITH CASE COUPLER (09) - CHASSIS/ATTACHMENTS

1

H673629

FRAME

pallet fork, with brick guard, 42 inch, Includes Ref. 2-3

1шт.

2

T41518

BUSHING

fork mounting rod

3шт.

3

T40765

SPACER

, Serial Range: bushing-frame

3шт.

4

H673833

FORK

pallet, 42 inch, Includes Ref. 5-6

2шт.

5

T41518

BUSHING

fork mounting rod

1шт.

6

H438017

STOP

SPACER fork bushing

1шт.

7

T41522

ROD

fork mounting

1шт.

8

38-11632

LOCK PIN,1/4" x 2", Slotted

PIN, LOCK, , Replaces 138-41 1/4" x 2", Slotted

2шт.
