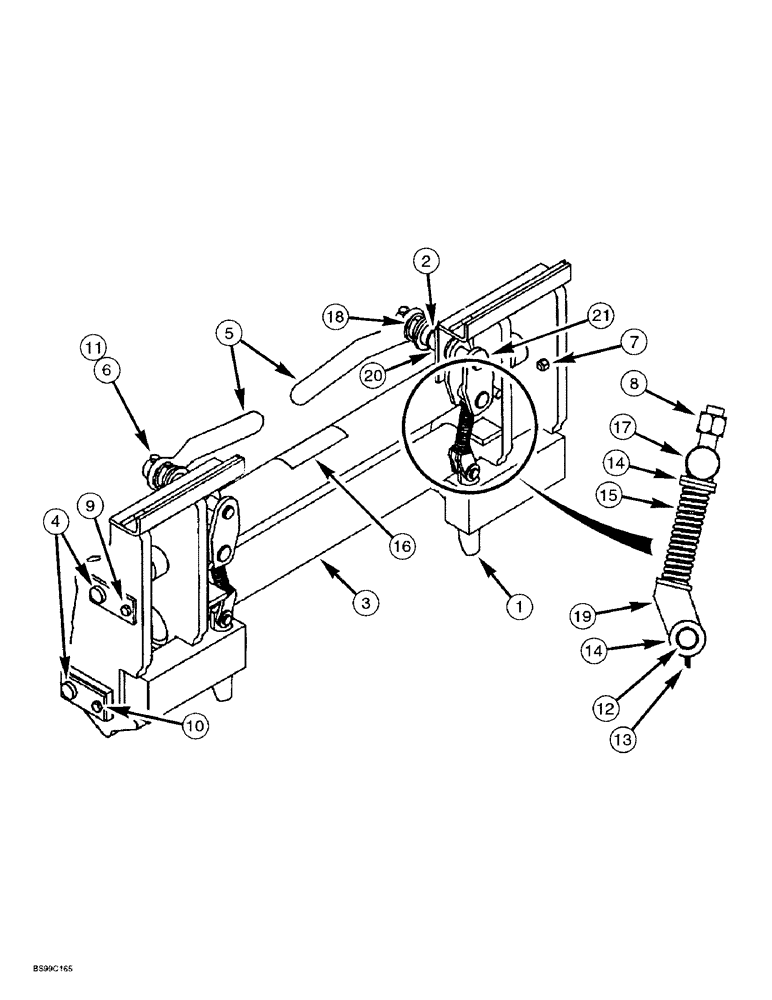

Запчасти Case 1838 (9-11A) - CASE COUPLER, P. I. N. JAF0183047 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

181772A1

WEDGE,31.83mm OD x 158mm L

WEDGE lock

2шт.

2

219-86

LUBE NIPPLE,1/8" NPTF

FITTING grease, straight, self tap 1/8 PT x 5/8 inch

4шт.

3

222424A1

FRAME

coupler

1шт.

4

222432A1

PIVOT PIN

PIN coupler

4шт.

5

227873A1

LEVER

coupler

2шт.

6

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

7

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

8

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

11

426-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

hex, 5/16 NC x 1-3/4 inch, grade 8

2шт.

12

427-8168

CLEVIS PIN,12.7mm OD x 42.88mm L

PIN clevis, hardened, 1/2 x 1-11/16 inch

2шт.

13

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

flat, hardened, 17/32 x 1-1/16 x 1/8 inch

10шт.

15

D124197

SPRING

coupler lever

2шт.

16

D137186

DECAL

Caution, always inspect coupler and latch pin engagement, not shown, see Figures 9-32 and 9-34 for decals

1шт.

17

H436001

TRUNNION

crank

2шт.

18

H436051

SPRING

crank

2шт.

19

H673349

ROD

clevis

2шт.

20

H673583

SLEEVE

crank

2шт.

21

H673856

CRANK

coupler

2шт.
