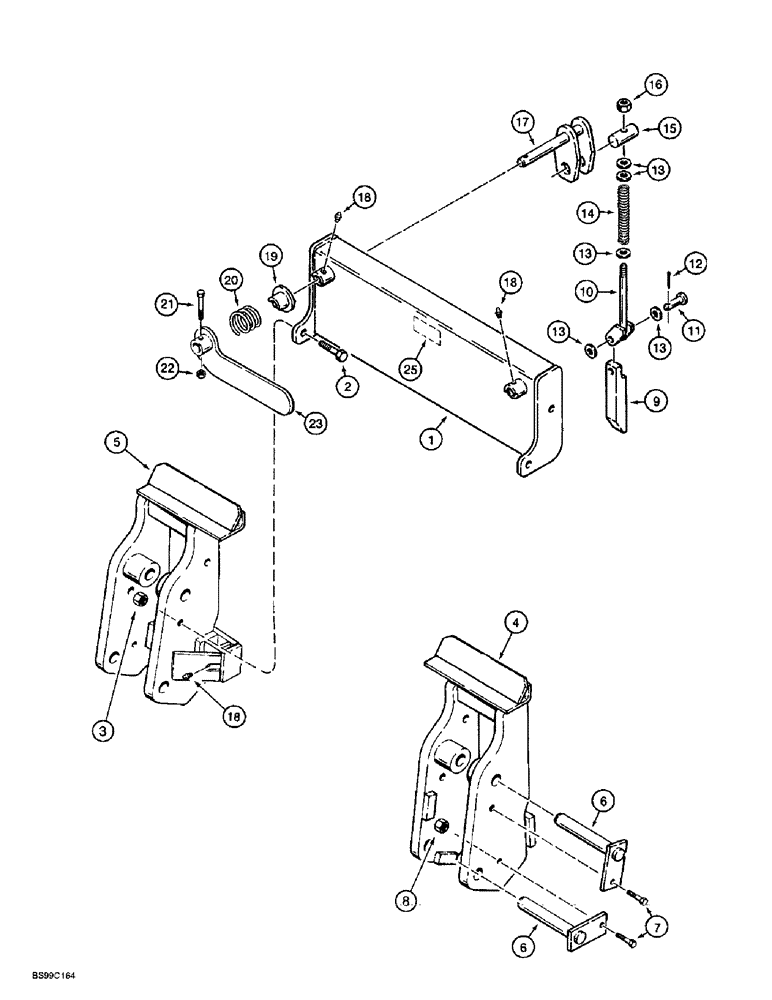

Запчасти Case 1838 (9-10) - CASE COUPLER, PRIOR TO P. I. N. JAF0183047 (09) - CHASSIS/ATTACHMENTS

1

H673348

CROSSMEMBER

torque, coupler

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

3

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

4шт.

4

H674801

COUPLING

COUPLER frame, right hand

1шт.

5

H674802

COUPLING

COUPLER frame, left hand

1шт.

6

H673520

PIN

coupler

4шт.

7

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

4шт.

8

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

9

H436000

WEDGE

lock

2шт.

10

H673349

ROD

clevis

2шт.

11

427-8168

CLEVIS PIN,12.7mm OD x 42.88mm L

PIN clevis, hardened, 1/2 x 1-11/16 inch

2шт.

12

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

flat, hardened, 17/32 x 1-1/16 x 1/8 inch

10шт.

14

D124197

SPRING

coupler lever

2шт.

15

H436001

TRUNNION

crank

2шт.

16

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

17

H673856

CRANK

coupler

2шт.

18

219-86

LUBE NIPPLE,1/8" NPTF

FITTING grease, straight, self tap 1/8 PT x 5/8 inch

4шт.

19

H673583

SLEEVE

crank

2шт.

20

H436051

SPRING

crank

2шт.

21

426-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

hex, 5/16 NC x 1-3/4 inch, grade 8

2шт.

22

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

23

H436936

LEVER

coupler, left hand

1шт.

24

H436937

LEVER

coupler, right hand, not shown

1шт.

25

D137186

DECAL

Caution, always inspect coupler and latch pin engagement, not shown, see Figures 9-32 and 9-34 for decals

1шт.
