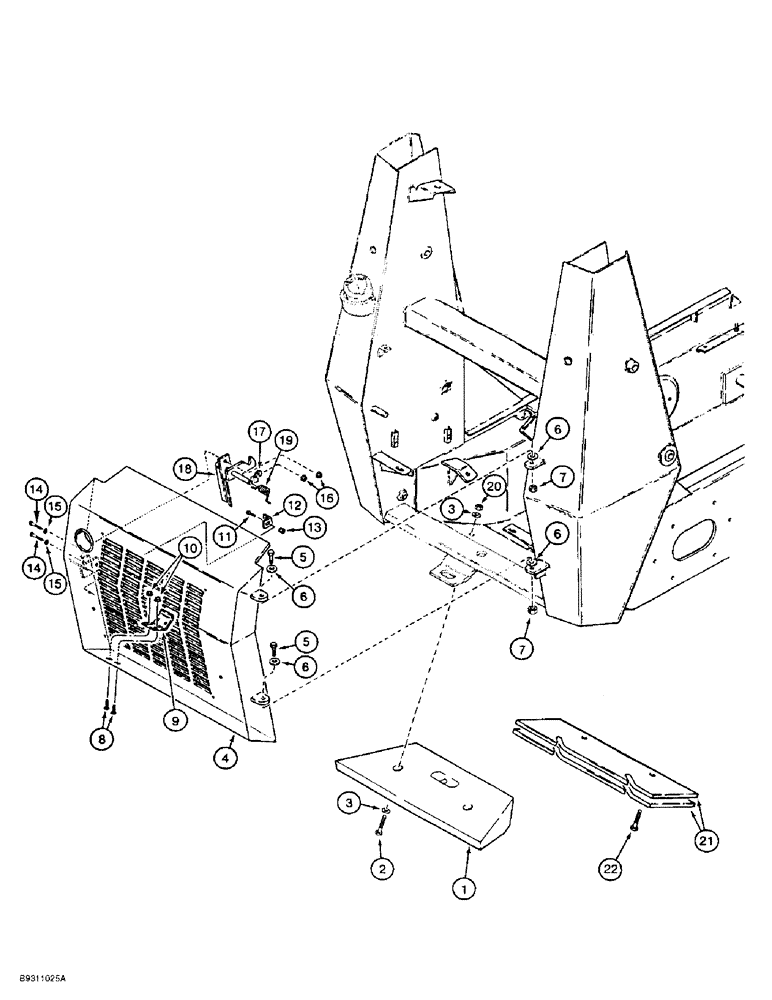

Запчасти Case 1838 (9-08) - REAR COUNTERWEIGHT AND SWING OUT DOOR (09) - CHASSIS/ATTACHMENTS

1

132895A1

WEIGHT

COUNTERWEIGHT rear

2шт.

2

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex, 1/2 NC x 2-3/4 inch

2шт.

3

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

4

H673388

DOOR

rear swing out, no longer available, order 228259A2

1шт.

4

228259A2

DOOR ASSY.

DOOR rear swing out, Replaces: H673388

1шт.

5

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

6

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

7

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

8

411-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

BOLT carriage, 3/8 NC x 1-1/4 inch, grade 2

2шт.

9

D128034

BRACKET

rear door, lower

1шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

1шт.

12

D124776

BRACKET

ANGLE latch positioning, outer

1шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

1шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

2шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

16

231-5146

FLANGE NUT,3/8"-16

2шт.

17

D95097

RING, SNAP

RING retaining

1шт.

18

D131975

LATCH

rear door

1шт.

19

D132020

SPRING

rear door latch

1шт.

20

231-4148

NUT,1/2"-13, GB

NUT hex, self locking, 1/2 inch NC

2шт.

21

108380A1

WEIGHT

COUNTERWEIGHT rear, 13 mm, 1/2 inch x 152 6 inch x 755 mm, 29.7 inch, 25 pounds

2шт.

22

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

hex, 1/2 NC x 3-1/2 inch, plated, used with Ref. 21 only

2шт.
