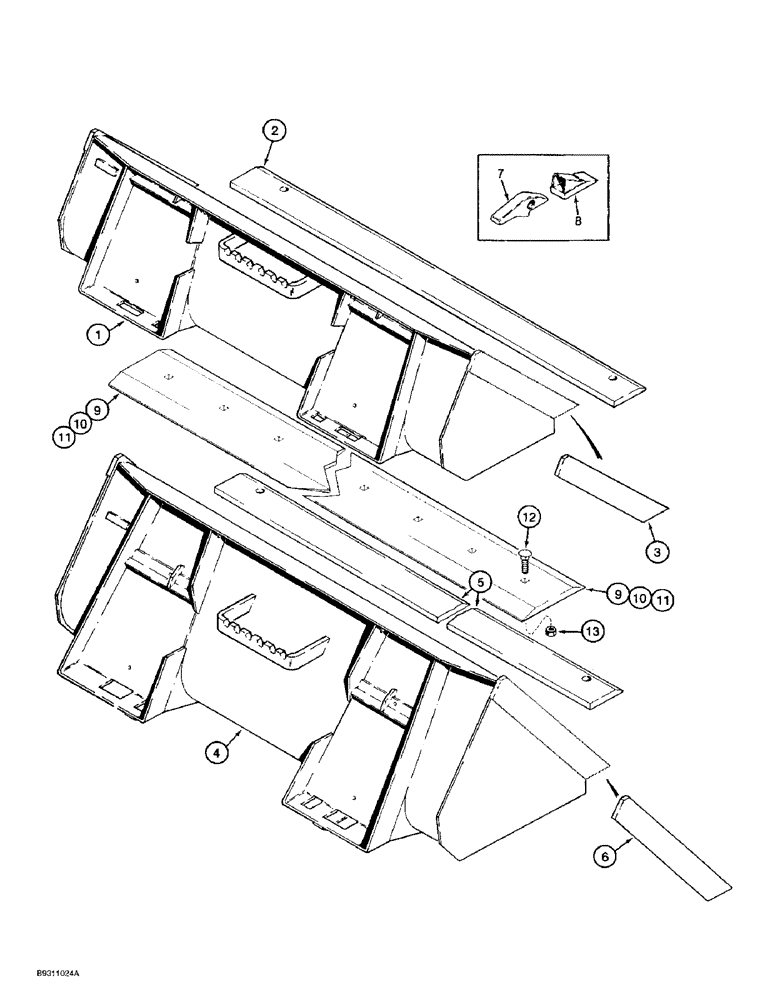

Запчасти Case 1838 (9-06) - BUCKETS, DIRT BUCKET, UTILITY BUCKET, BUCKET TEETH, OPT BOLT ON REVERSIBLE BLADES (09) - CHASSIS/ATTACHMENTS

H674860

BUCKET

ASSEMBLY, dirt, order from Machinery Price List, 1372 mm, 54 inch wide, Includes Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET dirt, 1372 mm, 54 inch wide

1шт.

2

H438890

EDGE, CUTTING

EDGE cutting, straight, bucket, 152 mm, 6 inch wide

1шт.

3

H438259

EDGE

side cutting, bucket

2шт.

H674861

BUCKET

ASSEMBLY, dirt, order from Machinery Price List, 1600 mm, 63 inch wide, Includes Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET dirt, 1600 mm, 63 inch wide

1шт.

2

H438542

EDGE, CUTTING

EDGE cutting, straight, bucket, 152 mm, 6 inch wide

1шт.

3

H438259

EDGE

side cutting, bucket

2шт.

H674884

BUCKET

ASSEMBLY, utility, order from Machinery Price List, 1372 mm, 54 inch wide, Includes Ref. 4-6

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET utility, 1372 mm, 54 inch wide

1шт.

5

H438890

EDGE, CUTTING

EDGE cutting, straight, bucket, 152 mm, 6 inch wide, utility bucket

1шт.

6

H438927

EDGE

side cutting, utility bucket

2шт.

H674885

BUCKET

ASSEMBLY, utility, order from Machinery Price List, 1600 mm, 63 inch wide, Includes Ref. 4-6

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET utility, 1600 mm, 63 inch wide

1шт.

5

H438542

EDGE, CUTTING

EDGE cutting, straight, bucket, 152 mm, 6 inch wide, utility

1шт.

6

H438927

EDGE

side cutting, bucket, utility

2шт.

H674886

BUCKET

ASSEMBLY, utility, order from Machinery Price List, 1854 mm, 73 inch wide, Includes Ref. 4-6

1шт.

4

NSS

NOT SOLD SEPARAT

BUCKET utility, 1854 mm, 73 inch wide

1шт.

5

H438919

EDGE, CUTTING

EDGE cutting, straight, utility bucket, 152 mm, 6 inch wide

1шт.

6

H438927

EDGE

side cutting, utility bucket

2шт.

D127919

TOOTH

ASSEMBLY, bucket, used only on dirt buckets with a 152 mm, 6 inch cutting edge, Includes Ref. 7-13, bucket teeth

8шт.

7

D127918

SHANK, BUCKET TOOTH

SHANK bucket tooth, bucket teeth

1шт.

8

T41166

TOOTH

POINT tooth, bucket teeth

1шт.

9

H439027

EDGE, CUTTING

EDGE cutting, bucket, 152 mm, 6 inch wide, bucket, used with 54 inch buckets only, optional bolt on reversible blades, bucket teeth

1шт.

10

H439028

EDGE, CUTTING

EDGE cutting, bucket, 152 mm, 6 inch wide, bucket, used with 63 inch buckets only, optional bolt on reversible blades, bucket teeth

1шт.

11

H439029

EDGE, CUTTING

EDGE cutting, bucket, 152 mm, 6 inch wide, bucket, used with 73 inch buckets only, optional bolt on reversible blades, bucket teeth

1шт.

12

420-21036

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT plow, 5/8 NC x 2-1/4 inch, grade 8, optional bolt on reversible blades, bucket teeth

9-12шт.

13

329-1010

NUT,5/8"-11, G8

Optional bolt on reversible blades, bucket teeth 5/8"-11, G8

9-12шт.
