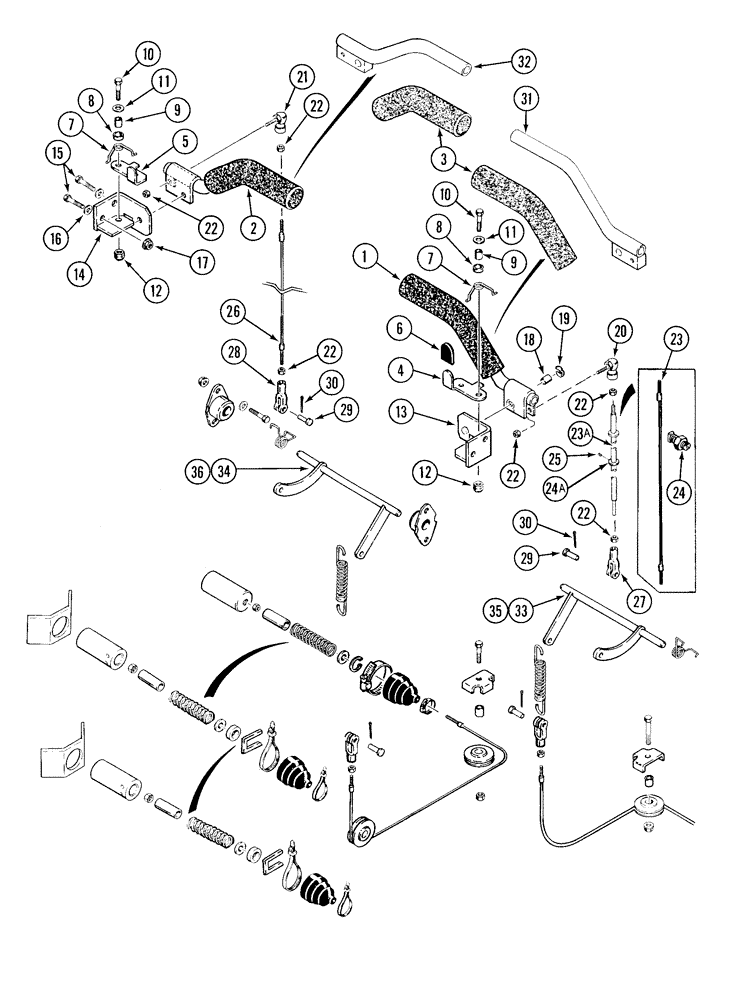

Запчасти Case 1835C (7-08) - PARKING LATCH AND SEAT BARS USED ON MODELS WITH DUAL SEAT BARS AND ONE PULLEY PER SIDE (07) - BRAKES

1

H435960

BAR ASSY.

BAR right-hand restraint, includes cushion, no longer available, order P/N H673609 bar, Serial Range: JAF0037077-JAF0097243

1шт.

2

H435959

BAR

left-hand restraint, includes cushion, no longer available, order P/N H673608 bar, Serial Range: JAF0037077-JAF0097243

1шт.

3

H436484

GRIP

CUSHION grip, restraint bar

2шт.

4

D131228

LATCH

parking, right-hand

1шт.

5

D131229

LATCH

parking, left-hand

1шт.

6

D134924

HANDLE

GRIP latch, vinyl

2шт.

7

D134464

SPRING

latch

2шт.

8

D44352

BUSHING

at latch

2шт.

9

H270777

SPACER

tubular

2шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

2шт.

12

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

13

H435879

BRACKET

mounting, right-hand, used with Ref. 1 or 31 bar

1шт.

14

H435880

BRACKET

mounting, left-hand, used with Ref. 2 or 32 bar

1шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

16

H426775

WASHER

flat, special, hardened

4шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

4шт.

18

H435837

BUSHING,12.7mm ID x 14.45mm OD x 19.05mm L

nylon

2шт.

19

D143415

SNAP RING,0.50” ID, Klipring

RING retaining

2шт.

20

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ball, 1/4 inch NF, Replaces: P/N H358374 joint

1шт.

21

H358374

PIVOT,1/4" - 28 x 1-1/3"

JOINT ball, female, 1/4 inch NF, Replaces: P/N H169920 joint

2шт.

22

425-114

NUT,1/4"-28, G5

6шт.

23

H438179

CABLE ASSY.

CABLE at latch, upper, no longer available, order P/N 120923A1 kit, see Figure 6-12 for component parts

1шт.

23a

123236A1

ROD

seat bar, Replaces: P/N H438179 cable

1шт.

24

102411A1

RETAINER

STOP cable, no longer available, order P/N 120923A1kit, see Figure 6-12 for component parts

1шт.

24a

120777A1

COLLAR

COLLAR locking, with set screw, Replaces: P/N 102411A1 cable stop

2шт.

25

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set, hex socket headless, 1/4 NC x 1/4 inch, cup point

2шт.

26

H438179

CABLE ASSY.

CABLE at latch, upper, left-hand

1шт.

27

213-115

ADJUSTABLE CLEVIS,5/16" - 24

CLEVIS, ADJUSTABLE, 5/16"-24

1шт.

28

A18709

CLEVIS

cable end

2шт.

29

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

30

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

31

H673609

BAR

right-hand restraint, with cushion, Start Serial: JAF0097243

1шт.

32

H673608

BAR

left-hand restraint, with cushion, Start Serial: JAF0097243

1шт.

33

H673162

PIVOT ASSY.

PIVOT parking latch, right-hand, Serial Range: -JAF0037367

1шт.

34

H673179

PIVOT ASSY.

PIVOT parking latch, left-hand, Serial Range: -JAF0037367

1шт.

35

H673555

PIVOT

parking latch, right-hand, Start Serial: JAF0037367

1шт.

36

H673554

PIVOT

parking latch, left-hand, Start Serial: JAF0037367

1шт.

120923A1

SET

KIT service, parking brake rod, includes instruction sheet, see parts list Figure 6-12

1шт.
