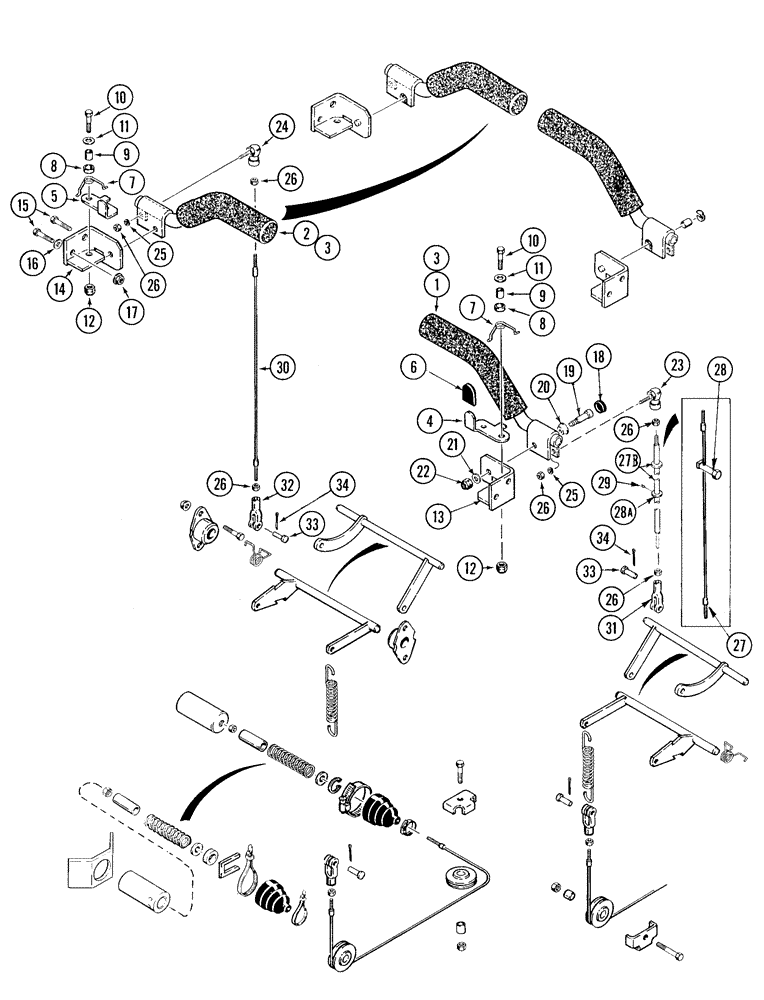

Запчасти Case 1835C (7-02) - PARKING LATCH AND SEAT BARS - USED ON MODELS WITH DUAL SEAT BARS AND TWO PULLEYS PER SIDE (07) - BRAKES

1

D132324

BRACKET

BAR right-hand restraint, with cushion, no longer available, order P/N H673609 bar and Ref. 3, 4, 18 and 19, see Figure 7-12, Serial Range: -JAF037367

1шт.

2

D132323

BRACKET

BAR left-hand restraint, with cushion, no longer available, order P/N H673608 bar and Ref. 3, 5, 18 and 19, see Figure 7-12, Serial Range: -JAF037367

1шт.

3

H436484

GRIP

CUSHION grip, restraint bar

1шт.

4

D131228

LATCH

parking, right-hand

1шт.

5

D131229

LATCH

parking, left-hand

1шт.

6

D134924

HANDLE

GRIP latch, vinyl

2шт.

7

D134464

SPRING

latch

2шт.

8

D44352

BUSHING

at latch

2шт.

9

H270777

SPACER

tubular, at latch

2шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

2шт.

12

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

13

D131233

BRACKET

mounting, right-hand, used with P/N D132324 bar, Ref. 1, Serial Range: -JAF0037077

1шт.

14

D131234

BRACKET

mounting, left-hand, used with P/N D132323 bar, Ref. 2, Serial Range: -JAF0037077

1шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

16

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

4шт.

18

D134923

CAP

bolt, if used

2шт.

19

121-125

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 1/2"

SCREW, , If used Hex Soc Hd, Shdr, 5/16"-18 x 1/2"

2шт.

20

D134922

WASHER

special, if used

2шт.

21

H426775

WASHER

flat, special, hardened, if used

2шт.

22

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, , If used 5/16"-18, GC

2шт.

23

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ball, 1/4 inch NF, Replaces: P/N H358374 joint

1шт.

24

H358374

PIVOT,1/4" - 28 x 1-1/3"

JOINT ball, female, 1/4 inch NF, Replaces: P/N H169920 joint

1шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

26

425-114

NUT,1/4"-28, G5

6шт.

27

D134898

CABLE ASSY.

CABLE latch, right-hand upper, no longer available, Replaced: with Ref. 27A and 28

1шт.

27a

H438179

CABLE ASSY.

CABLE at latch, upper, not shown, no longer available, order P/N 120923A1 kit, see Figure 6-12 for component parts

1шт.

27b

123236A1

ROD

seat bar, Replaces: P/N D134898 cable

1шт.

28

H438181

CABLE ASSY.

STOP cable, right-hand cable, no longer available, order P/N 120923A1 kit, see Figure 6-12 for component part

1шт.

28a

120777A1

COLLAR

COLLAR locking, with set screw, Replaces: P/N H438181 cable stop

2шт.

29

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set, hex socket headless, 1/4 NC x 1/4 inch, cup point

2шт.

30

H438179

CABLE ASSY.

CABLE at latch, upper, left hand, Replaces: P/N D134899

1шт.

31

213-115

ADJUSTABLE CLEVIS,5/16" - 24

CLEVIS, ADJUSTABLE, 5/16"-24

1шт.

32

A18709

CLEVIS

cable end

1шт.

33

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

34

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

120923A1

SET

KIT service, parking brake rod, includes instruction sheet, see parts list Figure 6-12

1шт.
