Запчасти Case 1835C (6-60) - AXLES AND DRIVE CHAINS, P.I.N. JAF0037911 AND AFTER (06) - POWER TRAIN

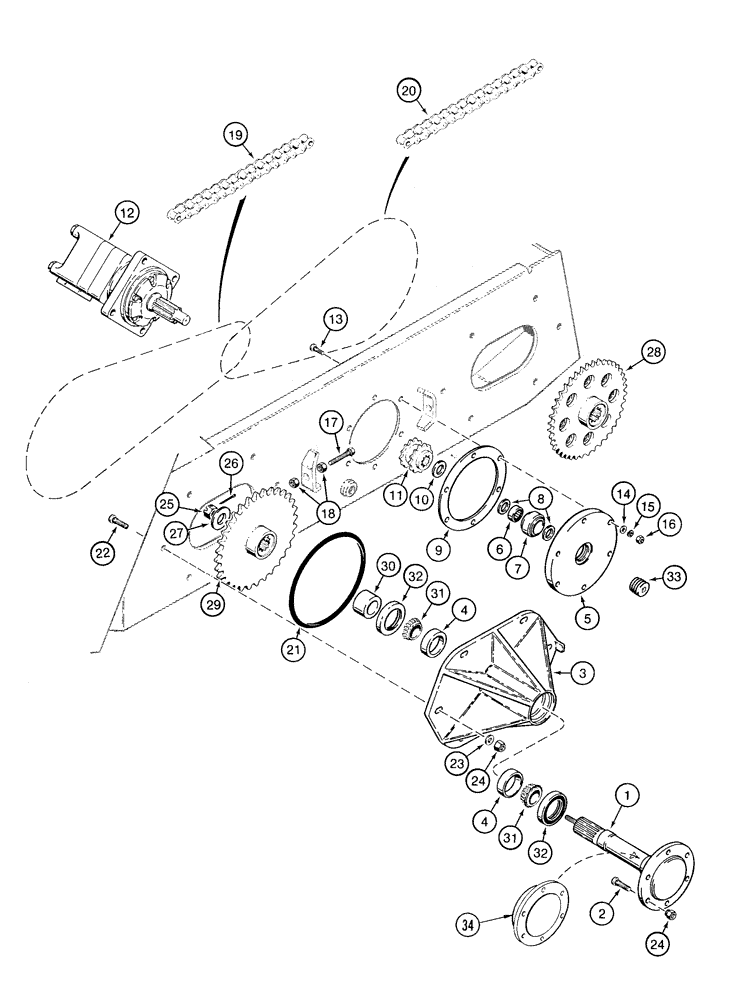

Схема запчастей Case 1835C - (6-60) - AXLES AND DRIVE CHAINS, P.I.N. JAF0037911 AND AFTER (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

103825A1

AXLE

ASSEMBLY, drive wheel, Includes: Ref. 1 and all 2's, Serial Range: -JAF0150990

4шт.

199281A1

HUB

AXLE ASSEMBLY, drive wheel, Includes: Ref. 1 and all 2's, Start Serial: JAF0150990

4шт.

1

NSS

NOT SOLD SEPARAT

AXLE wheel

1шт.

2

130782A1

WHEEL BOLT,Rnd Hd, 9/16" - 18 x 40mm, Gr 5

BOLT special, 40 mm long, used with P/N 103825A1 axle

6шт.

2

H439302

WHEEL BOLT

BOLT wheel, special, 9/16 inch NF, 47.5 mm long, used with P/N 199281A1 axle

6шт.

3

H438366

HUB

axle, used with P/N 103825A1 axle, Serial Range: -JAF0150990

4шт.

3

199283A1

HUB

axle, used with P/N 199281A1 axle, Start Serial: JAF0150990

4шт.

4

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

CUP tapered roller bearing, 2-57/64 inch OD

8шт.

5

H439300

BEARING HOUSING

HOUSING bearing

2шт.

6

D80554

NEEDLE BEARING CAGE

BEARING needle, hydraulic motor shaft

2шт.

7

D36203

BUSHING,38.1mm ID x 61.91mm OD x 33.33mm W

BEARING self-aligning

2шт.

8

D132922

BEARING WASHER,28.57mm ID x 38.27mm OD x 3.05mm Thk

RETAINER bearing

4шт.

9

D136535

GASKET,1.57mm Thk

bearing housing

2шт.

10

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

thrust, drive sprocket

2шт.

11

H436803

DRIVE SPROCKET

SPROCKET drive, 10 teeth

2шт.

Has 21 teeth, two rows of ten and mates with P/N's H673449 and H673511.

1шт.

12

REF

INSTRUCTION

MOTOR ASSEMBLY, hydraulic drive, see parts list Figure 6-48 - 6-54

2шт.

13

H435895

BOLT

pressed-in type, special, bearing, Serial Range: housing-chassis

12шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

flat, hardened, 13/32 x 13/16 x 3/32", Replaces P/N 495-11041 washer

12шт.

15

492-11038

LOCK WASHER,3/8"

if used 3/8"

12шт.

16

232-4116

NUT,3/8"-16, GC

NUT, LOCK, (Replaces P/N 425-106) 3/8"-16, GC

12шт.

17

113-476

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5, Full Thd

Hex, 1/2"-13 x 2 3/4", G5, Full Thd

4шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

19

H435116

CHAIN,#80H, 62 Links x 25.4mm = 1574.8mm

CHAIN drive, 62 pitches, endless, special, rear

2шт.

20

H435117

CHAIN (CE)

CHAIN drive, 56 pitches, endless, special, front

2шт.

21

238-5445

O-RING,0.275" Thk x 7.97" ID, -445, Cl 5, 75 Duro

Hub, if used -444, 70 Duro, 7.975" ID x .275" Thk

4шт.

22

192103A1

STUD,Pan Hd, Ribbed Nk, 9/16" - 18 x 47.50mm, Gr 5

BOLT wheel, special 9/16 inch NF, pressed-in type, Replaces: P/N H439302 bolt

24шт.

23

H439308

WASHER,16mm ID x 33.3mm OD x 4.7mm Thk

flat, hardened, special

24шт.

24

G49041

WHEEL NUT

wheel, special, 9/16 inch NF

48шт.

25

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

4шт.

26

32-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

4шт.

27

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

flat, special

1шт.

28

H435243

DRIVE SPROCKET

SPROCKET axle, 33 teeth, front

2шт.

29

H435258

DRIVE SPROCKET

SPROCKET axle, 33 teeth, rear

2шт.

30

H438367

SPACER,42.97mm ID x 57.23mm OD x 30mm L

43 x 57 x 30 mm long

4шт.

31

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

CONE tapered roller bearing, 1-25/32 inch ID

8шт.

32

D53767

OIL SEAL,57.15mm ID x 85.75mm OD x 11mm Thk

oil

8шт.

33

221-846

PLUG,Hex Soc, 1"-11 1/2

hex socket, 1 inch PT

2шт.

34

198783A1

GUARD

seal, if used, Start Serial: JAF0150990

4шт.

Выбрано товаров: 39
