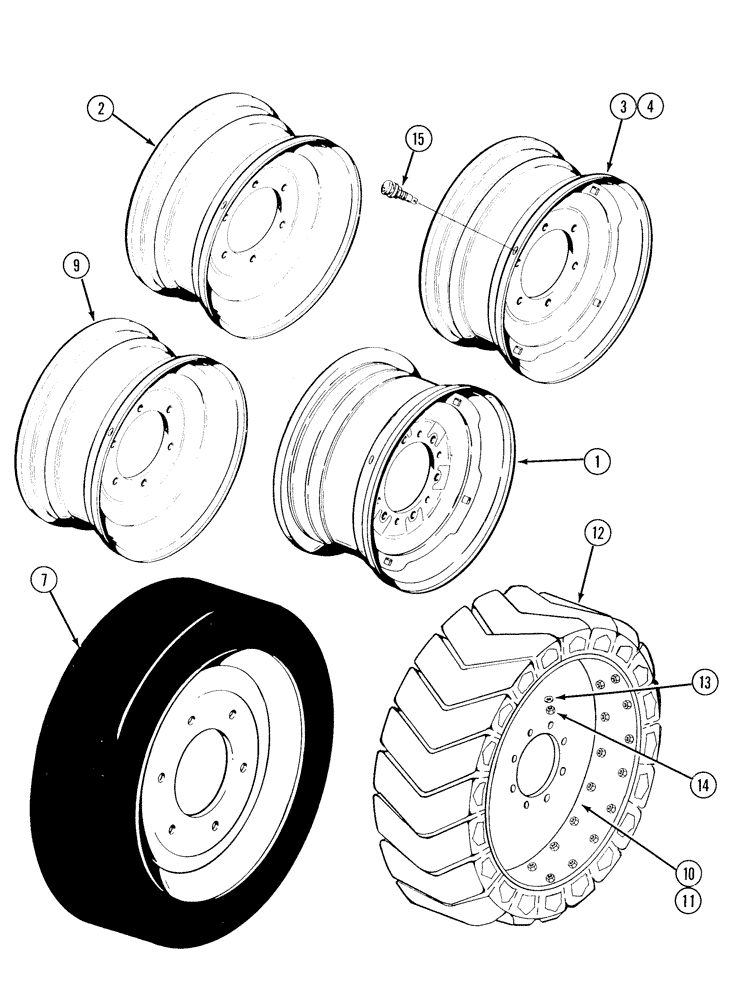

Запчасти Case 1835C (6-56) - TIRES AND WHEELS (06) - POWER TRAIN

1

T40663

WHEEL

rim, 7 x 15 inch tire, stamped steel

4шт.

2

H438705

WHEEL

rim, 7 x 15 inch tire, full plate center

4шт.

REF

INSTRUCTION

TIRE, 7 x 15 inch, nylon, not shown, purchase locally

4шт.

REF

INSTRUCTION

TIRE, 7 x 15 inch, steel cap, not shown, purchase locally

4шт.

REF

INSTRUCTION

TUBE, 7 x 15 inch, used with Ref. 2, P/N H438705 wheels, not shown, purchase locally

1шт.

3

D136529

WHEEL

rim, 10 x 16.5 inch flotation tire, Serial Range: -JAF0037367

4шт.

4

H436532

WHEEL ASSY.

WHEEL rim, 10 x 16.6 inch flotation tire, if used, no longer available, order P/N H438566 wheel, Ref. 5 for service

4шт.

5

H438566

RIM

WHEEL rim, 10 x 16.5 inch tire, full plate center

4шт.

6

258685A1

WHEEL

rim, special offset, used with 10 x 16.5 inch tires, not shown

4шт.

REF

INSTRUCTION

TIRE, 10 x 16.5 inch, flotation, not shown, purchase locally

4шт.

REF

INSTRUCTION

TIRE, 10 x 16.5 inch, heavy duty Galaxy, not shown, purchase locally

4шт.

7

REF

INSTRUCTION

WHEEL with solid rubber tire, machinery item, order from Machinery Price List

4шт.

8

H437812

RIM

WHEEL rim, 8.50 x 15 inch tire, used with 27 x 15 inch tires, not shown

4шт.

9

246885A1

RIM

WHEEL rim, used with 31.5 x 13 x 16.5 inch tires

4шт.

REF

INSTRUCTION

TIRE, 31.5 x 13 x 16.5 inch, Flatfoot, purchase locally, not shown

4шт.

10

REF

INSTRUCTION

WHEEL rim, right-hand, used with segmented tire, machinery item, order from Machinery Price List

2шт.

11

REF

INSTRUCTION

WHEEL rim, left-hand, used with segmented tire, machinery item, order from Machinery Price List

2шт.

12

253735A1

CLAMP

SEGMENT tire, 10 x 16.5 inch, Airboss flotation

20шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

80шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

80шт.

15

T57461

VALVE STEM

tire inflation, used with Ref. 2 and 3 wheel

4шт.
