Запчасти Case 1835C (6-50) - HYDRAULIC DRIVE MOTOR USED ON MODELS P.I.N. JAF0130893 THROUGH JAF0283110 (06) - POWER TRAIN

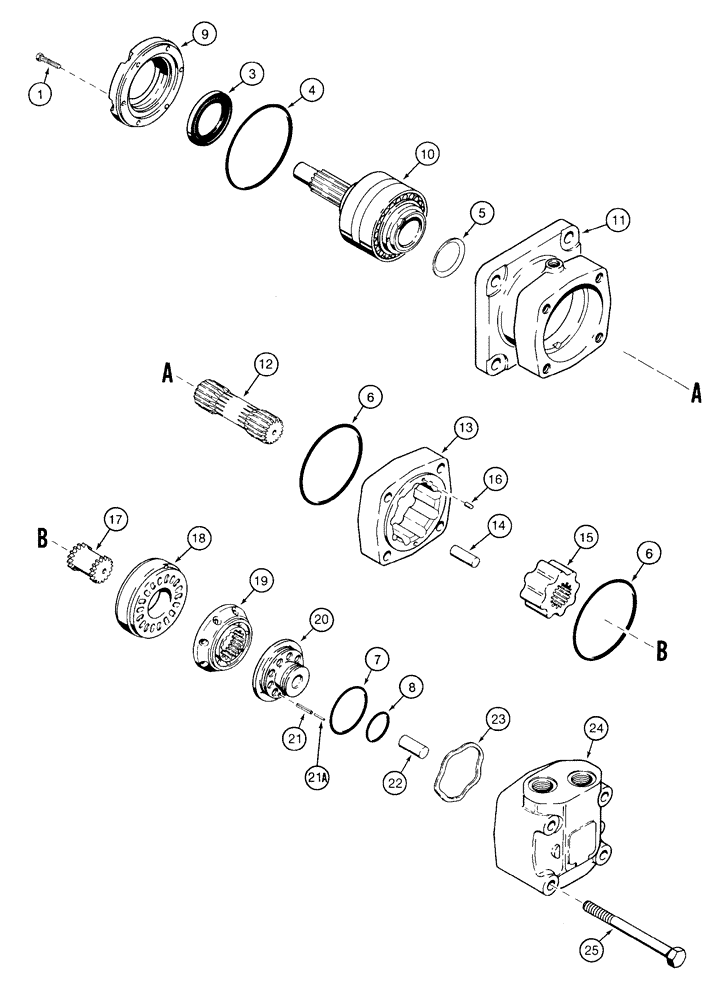

Схема запчастей Case 1835C - (6-50) - HYDRAULIC DRIVE MOTOR USED ON MODELS P.I.N. JAF0130893 THROUGH JAF0283110 (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

141388A2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY, hydraulic, drive, no longer available, order P/N 230462A1 motor assembly, see Figure 6-52, Includes: Ref. 1 - 25

1шт.

1

195268A1

SCREW

BOLT hex, full threads, special, 8-1.25 x 25 mm

6шт.

H673765

SEAL PACKAGE

KIT seal, motor, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING out put shaft

1шт.

5

NSS

NOT SOLD SEPARAT

RING seal

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING gerotor

2шт.

7

NSS

NOT SOLD SEPARAT

O-RING thrust plate, large

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING thrust plate, small

1шт.

9

H436753

FLANGE

CARRIER seal

1шт.

10

195264A1

SHAFT

output, with bearings

1шт.

11

195267A1

BEARING HOUSING

HOUSING bearing

1шт.

12

H436756

SHAFT

long

1шт.

H436765

GEAR

GEROTOR ASSEMBLY, motor, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

STATOR gerotor

1шт.

14

NSS

NOT SOLD SEPARAT

ROLLER gerotor

9шт.

15

NSS

NOT SOLD SEPARAT

ROTOR gerotor

1шт.

16

E37942

GUIDE PIN

PIN guide, 4 x 10 mm

1шт.

17

H436757

SHAFT

short

1шт.

18

H436759

CHAMBER

MANIFOLD short shaft

1шт.

19

H436760

VALVE

disc

1шт.

20

H436763

LARGE PLATE

PLATE thrust

1шт.

21

838-1528

LOCK PIN,M5 x 28, Slotted

PIN roll, 5 x 28 mm

1шт.

21a

838-1324

LOCK PIN,M3 x 24, Slotted

PIN roll, 3 x 24 mm

1шт.

22

H436761

SPACER

port end cover

1шт.

23

H436762

SPACER

WASHER spring wave

1шт.

24

H436758

COVER

port end

1шт.

25

195269A1

SCREW

BOLT hex, 14-2.0 x 160 mm

4шт.

Выбрано товаров: 28
