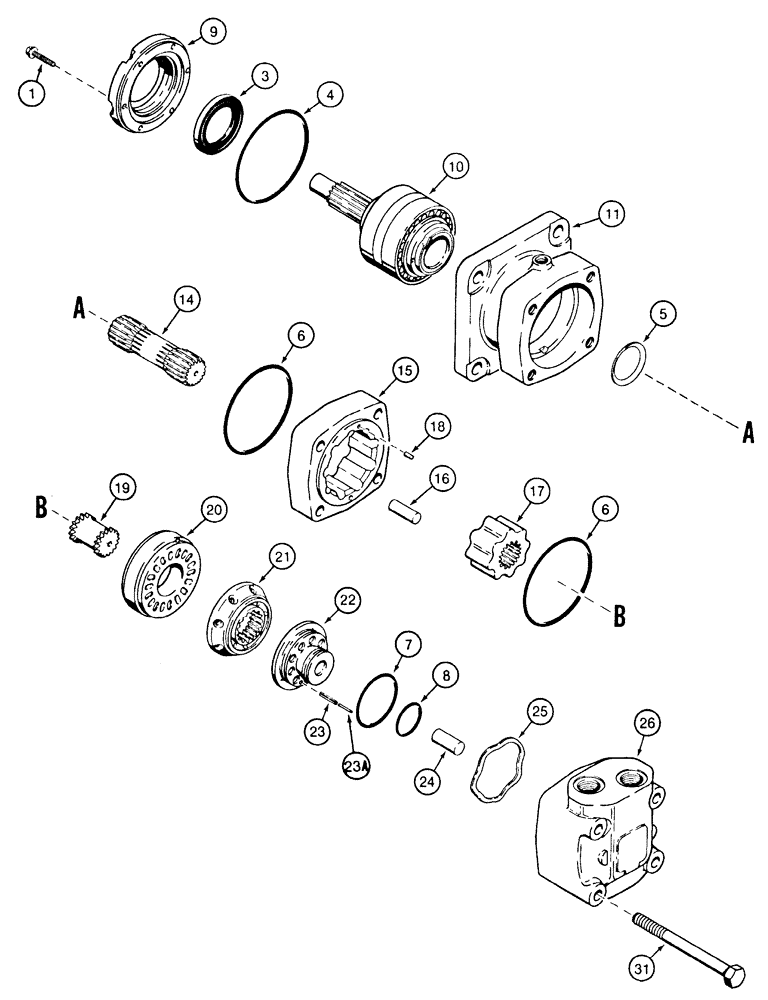

Запчасти Case 1835C (6-48) - HYDRAULIC DRIVE MOTOR, P.I.N. JAF0037476 THROUGH P.I.N. JAF0130893 (06) - POWER TRAIN

H673511

MOTOR, HYDRAULIC

MOTOR ASSEMBLY, hydraulic, no longer available, order P/N 231816A1 motor assembly, see Figure 6-54, Includes: Ref. 1 - 31

2шт.

1

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8-1.25 x 25 mm

6шт.

H673765

SEAL PACKAGE

KIT seal, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING output shaft

1шт.

5

NSS

NOT SOLD SEPARAT

RING seal

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING gear housing

2шт.

7

NSS

NOT SOLD SEPARAT

O-RING thrust plate, large

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING thrust plate, small

1шт.

9

H436753

FLANGE

CARRIER seal

1шт.

10

H436752

SHAFT

output, with bearings

1шт.

11

H436754

BEARING HOUSING

HOUSING bearing

1шт.

14

H436756

SHAFT

long

1шт.

H436765

GEAR

GEROTOR ASSEMBLY, motor, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

STATOR gerotor

1шт.

16

NSS

NOT SOLD SEPARAT

ROLLER gerotor

9шт.

17

NSS

NOT SOLD SEPARAT

ROTOR gerotor

1шт.

18

E37942

GUIDE PIN

PIN guide

1шт.

19

H436757

SHAFT

short

1шт.

20

H436759

CHAMBER

MANIFOLD short shaft

1шт.

21

H436760

VALVE

disc

1шт.

22

H436763

LARGE PLATE

PLATE thrust

1шт.

23

838-1528

LOCK PIN,M5 x 28, Slotted

PIN roll, 5 x 28 mm, guide, Replaces P/N N14681, Use with Ref. 23A inner roll pin

1шт.

23a

838-1324

LOCK PIN,M3 x 24, Slotted

PIN roll, 3 x 24 mm, Assemble inside of Ref. 23 roll pin guide

1шт.

24

H436761

SPACER

port end cover

1шт.

25

H436762

SPACER

WASHER spring wave

1шт.

26

H436758

COVER

port end

1шт.

31

195269A1

SCREW

BOLT hex, 14-2.0 x 160 mm

4шт.
