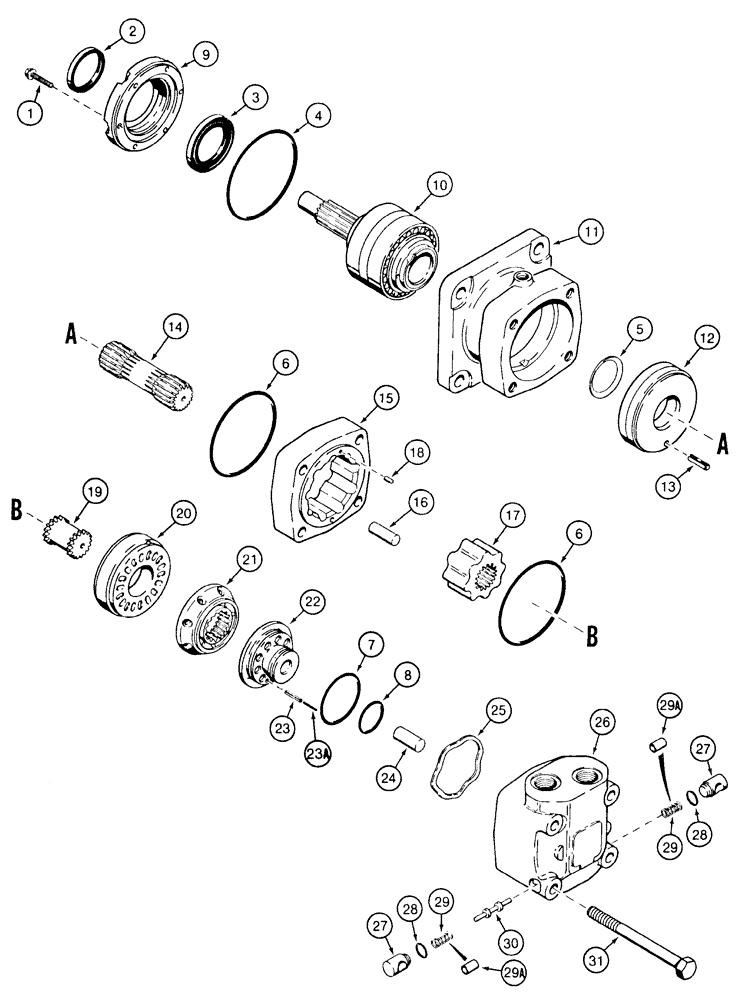

Запчасти Case 1835C (6-46) - HYDRAULIC DRIVE MOTOR PRIOR TO P.I.N. JAF0037454 AND SOME MODELS THROUGH P.I.N. JAF0037475 (06) - POWER TRAIN

H434949

MOTOR

ASSEMBLY, hydraulic drive, no longer available, order P/N H673511 motor, see Fig. 6-48 for new motor, Start Serial: JAF0012931

2шт.

H673039

MOTOR

ASSEMBLY, hydraulic, no longer available, order P/N H673511 motor, see Figure 6-48 for new motor, Serial Range: JAF0012931-JAF0037366

2шт.

1

853-6035

BOLT

hex flange, 6-1 x 35 mm, class 10.9

6шт.

N14690

SEAL KIT

seal, P/N H434949 motor, Includes: Ref. 2 - 8

1шт.

H436217

SEAL KIT

seal, P/N H673039 motor, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

WIPER shaft

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING output shaft

1шт.

5

NSS

NOT SOLD SEPARAT

RING seal

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING gear housing

2шт.

7

NSS

NOT SOLD SEPARAT

O-RING thrust plate, large, P/N N14690 kit

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING thrust plate, large, P/N H436217 kit

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING thrust plate, small, P/N N14690 kit

1шт.

8

E37949

O-RING,45 mm ID

thrust plate, small, P/N H436217 kit

1шт.

9

N14670

FLANGE

CARRIER seal

1шт.

10

N14671

SHAFT

output, with bearings

1шт.

11

N14672

BEARING HOUSING,104 mm ID x 160 mm OD x 117 mm

HOUSING bearing

1шт.

12

N14673

WASHER

PLATE wear

1шт.

13

N14674

PIN

guide

1шт.

14

N14675

SHAFT

long

1шт.

N14676

GEROTOR

ASSEMBLY, motor, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

STATOR gerotor

1шт.

16

NSS

NOT SOLD SEPARAT

ROLLER gerotor

9шт.

17

NSS

NOT SOLD SEPARAT

ROTOR gerotor

1шт.

18

E37942

GUIDE PIN

PIN guide

1шт.

19

N14677

SHAFT

short

1шт.

20

N14678

PLATE

MANIFOLD short shaft

1шт.

21

N14679

FLANGE

VALVE disc

1шт.

22

N14680

LARGE PLATE

PLATE thrust

1шт.

23

N14681

SPLIT PIN/SAFETY PIN

PIN roll, guide, no longer available, order P/N 838-1528 pin

1шт.

23

838-1528

LOCK PIN,M5 x 28, Slotted

PIN roll, 5 x 28 mm, guide, Use with Ref. 23A

1шт.

23a

838-1324

LOCK PIN,M3 x 24, Slotted

PIN roll, 3 x 24 mm, Assemble inside of P/N 838-1528 pin, not shown

1шт.

24

N14682

SPACER

port end cover

1шт.

25

N14683

BLOCK

WASHER spring wave

1шт.

26

N14684

HOUSING

COVER port end, P/N H434949 motor

1шт.

26

H436216

COVER

port end, P/N H673039 motor

1шт.

27

N14688

RETAINER

PLUG shuttle valve

2шт.

28

N14687

SEAL

shuttle valve, if used

2шт.

29

N14686

SPRING

shuttle valve, if used

2шт.

29a

H435329

SPACER

shuttle valve, if used

2шт.

30

N14685

SPOOL

shuttle valve

1шт.

31

814-16160

BOLT,Hex, M16 x 2 x 160mm, Cl 8.8

hex, 16-2.0 x 160 mm

4шт.
