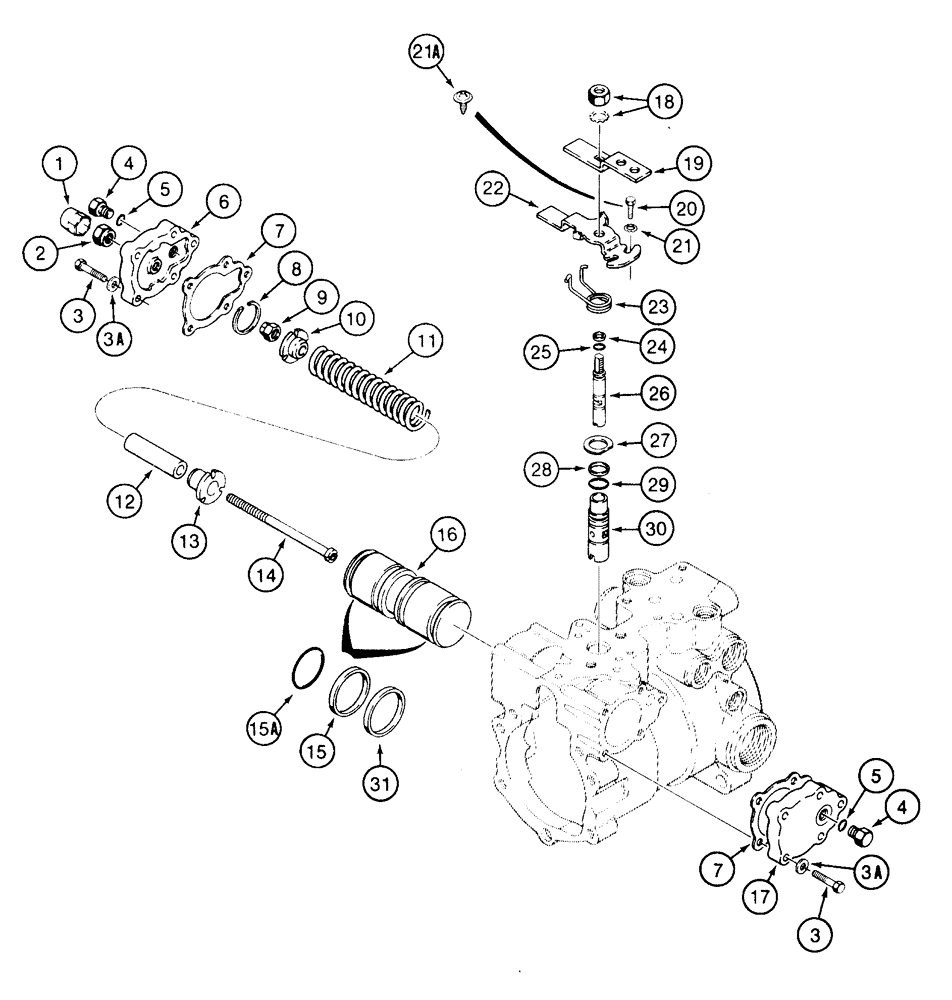

Запчасти Case 1835C (6-38) - TANDEM PUMP ASSEMBLY REAR DRIVE PUMP NEUTRAL START AND SERVO (06) - POWER TRAIN

H672849

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46209, see Figure 6-24 - 6-42, no longer available, order 127930A1R pump for service, Includes: Ref. 1 - 14, Start Serial: 17940460

1шт.

H672996

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46223, see Figure 6-24 - 6-42, no longer available, order P/N 127930A1R pump for service, Includes: Ref. 1 - 14, Serial Range: 17940460-JAF0013277

1шт.

H673152

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46262, see Figure 6-24 - 6-42, no longer available, order P/N 127930A1R pump for service, Includes: Ref. 1 - 14, Serial Range: JAF0013278-JAF0037366

1шт.

H673667

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46262, see Figure 6-24 - 6-42, no longer available, order P/N 127930A1R pump for service, Includes: Ref. 1 - 14, Serial Range: JAF0037367-JAF0118499

1шт.

127930A1

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46139, and after, see Figure 6-24 - 6-42, order P/N 127930A1R remanufactured pump, service replacement for all pumps, Includes: Ref. 1 - 14, Start Serial: JAF0118500

1шт.

127930A2

PUMP

1шт.

127930A2R

PUMP

Remanufactured PUMP - N.A. Only

1шт.

127930A2C

PUMP

Return No, PUMP - N.A. Only

1шт.

1

N13249

CAP

servo adjusting nut, no longer available

1шт.

2

N13260

NUT,Inverted Lock

special, adjusting, 5/8 inch NF

1шт.

3

413-422

BOLT,Hex, 1/4" - 20 x 1-3/8", Gr 5

P/N H672849 pump Hex, 1/4"-20 x 1 3/8", G5

10шт.

3

H438321

BOLT,M6 x 1 x 20mm, Cl 10.9

SCREW hex, special, 1/4 NC x 1-1/4 inch, grade 8, servo cover, P/N's H672996, H673152, H673667, or 127930A1 pump

10шт.

3a

A22354

WASHER

flat, special, 1/4 inch, P/N H672849 pump

10шт.

3a

A23082

SPRING

WASHER flat, special, 1/4 inch, P/N's H672996, H673152, H673667, or 127930A1 pump

10шт.

4

9672438

PLUG,7/16" - 20 ORB

Servo cover, Incl. Ref. 5 Hex Hd, 7/16"-20 ORB

2шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

6

N14473

PLATE

COVER servo, adjusting end, no longer available, order P/N H436065 cover, P/N's H672849, H672996, or H673152 pump

1шт.

6

H436065

COVER

servo, P/N H673667 or 127930A1 pump

1шт.

7

N14063

GASKET

servo cover

2шт.

Part of Servo Piston Kit, P/N H673393

1шт.

8

N13255

RING

retaining, servo

1шт.

Part of Servo Piston Kit, P/N H673393

1шт.

9

131-528

LOCK NUT,3/8"-24

NUT light hex, self-locking, 3/8 inch NF, Inner, P/N's H672849, H672996, or H673152 pump

1шт.

9

425-156

JAM NUT,Jam, 3/8"-24, G5

P/N H673667 or 127930A1 pump Jam, 3/8"-24, G5

1шт.

10

N14666

GUIDE,1.292" OD

spring, outer

1шт.

11

N13226

SPRING

servo

1шт.

12

N14664

STOP

SLEEVE bolt

1шт.

13

N13241

GUIDE,1.292" OD

spring, inner

1шт.

14

N13267

SCREW

special, servo

1шт.

H673393

PISTON ASSY.

KIT servo piston, Includes: Ref. 7, 8, 16, 31 and P/N's H673393, H673773 and 100536A1 see Figure 6-38 and 6-40, no longer available, order primes

1шт.

Part of Servo Piston Kit, P/N H673393

1шт.

140008A1

GASKET KIT

KIT seal, overhaul P/N 127903A1 pump, component parts not serviced seperately

1шт.

REF

INSTRUCTION

PUMP ASSEMBY tandem, pump options are P/N's H672849, H672996, H673152, H673667 and H127930A1, Includes: P/N H673773 and Ref. 15 - 31

1шт.

H673773

KIT

ring, Includes: Ref. 15 and 15A

1шт.

Part of Servo Piston Kit, P/N H673393

1шт.

15

N14668

RING, PISTON

RING piston, servo

2шт.

15a

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

2шт.

16

N14470

PISTON

servo, P/N H672849 or H672996 pump, for service order P/N H673393 kit

1шт.

16

H435772

PISTON

servo, P/N's H673152, G673667 or 127930A1 pump

1шт.

Part of Servo Piston Kit, P/N H673393

1шт.

17

N14474

PLATE

COVER servo, non-adjusting end, P/N's H672849, H672996 or H673152 pump, no longer available, order H436053 cover

1шт.

17

H436053

COVER

servo, P/N H673667 or 127930A1 pump

1шт.

18

193-1009

NUT,Keps, w/LW, 5/16"-18

hex, with external tooth lock washer, 5/16 NC

1шт.

19

N13251

HANDLE

LEVER control

1шт.

20

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

P/N H672849 pump Hex, 1/4"-20 x 5/8", G5, Full Thd

1шт.

21

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER, , P/N H672849 pump Ext Tooth, 1/4"

1шт.

21a

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

flanged head, special, P/N's H672886, G673152, H673667, or 127930A1 pump

1шт.

22

N13250

BRACKET

neutral

1шт.

23

N13248

SPRING,3/4" OD

Neutral

1шт.

24

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

backup, control spool

1шт.

25

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Control spool, spline end, P/N's H672849, H672996 or H673152 pump

1шт.

25

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, P/N H673667 or 127930A1 pump

1шт.

26

N14475

SPOOL

control, rotary, P/N's H672849, H672996 or H673152 pump

1шт.

26

H435769

SPOOL

control, rotary, P/N H673667 or 127930A1 pump

1шт.

27

N13256

WASHER

special

1шт.

28

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

backup, control sleeve

1шт.

29

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

1шт.

30

N14477

SLEEVE VALVE

SLEEVE control spool, black, no longer available, order P/N 110671A1 sleeve

1шт.

30

110671A1

SLEEVE

control spool, gold

1шт.

31

100536A1

BEARING WASHER,47.24mm ID x 50.34mm OD x 3.1mm Thk

RING bearing, servo piston, P/N's H673152, H673667 or 127930A1 pump

2шт.

Part of Servo Piston Kit, P/N H673393

1шт.
