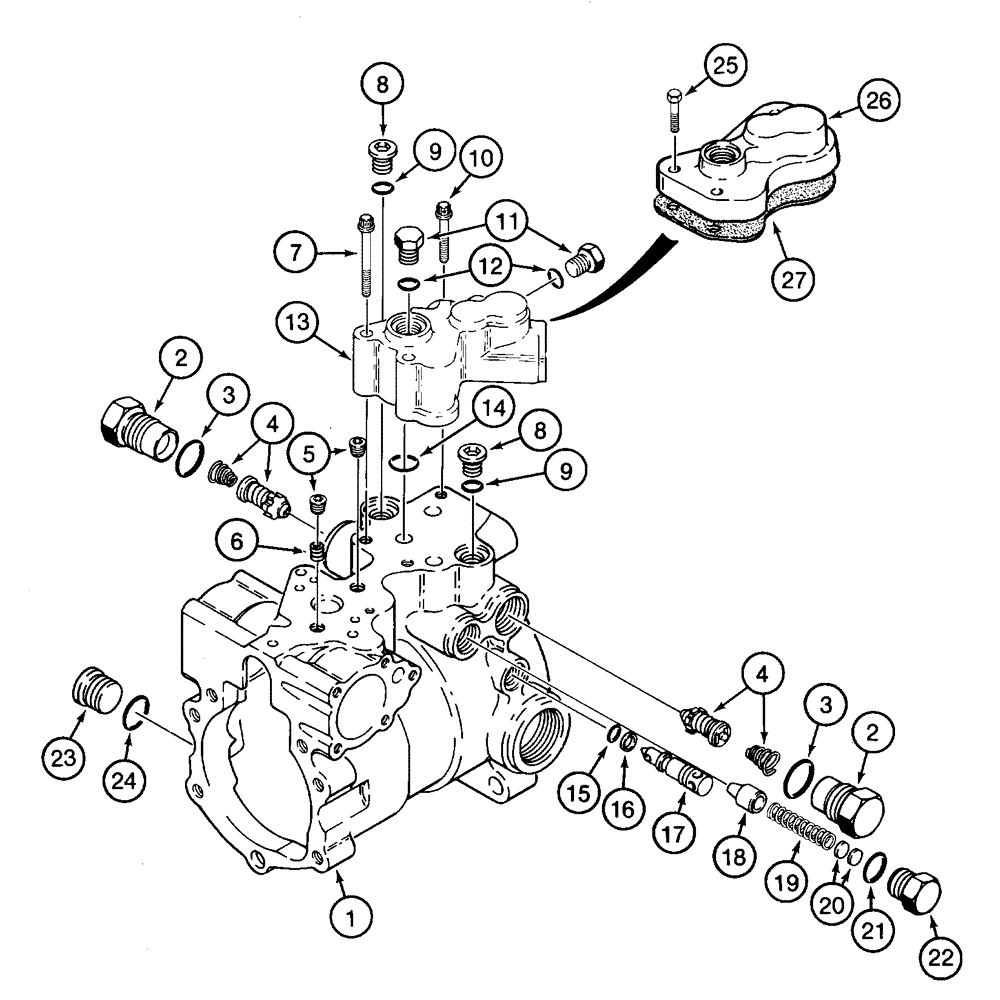

Запчасти Case 1835C (6-36) - TANDEM PUMP ASSEMBLY REAR DRIVE PUMP HOUSING VALVES AND FILTER ADAPTER (06) - POWER TRAIN

H672849

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46209, see Figure 6-24 - 6-42, no longer available, order P/N 127930A1R pump for service, Includes: Ref. 1 - 27, Start Serial: 17940460

1шт.

H672996

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46223, see Figure 6-24 - 6-42, no longer available, order P/N 127930A1R pump for service, Includes: Ref. 1 - 27, Serial Range: 17940460-JAF0013277

1шт.

H673152

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46262, see Figure 6-24 - 6-42, no longer available, order P/N 127930A1R pump for service, Includes: Ref. 1 - 27, Serial Range: JAF0013278-JAF0037366

1шт.

H673667

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46262, see Figure 6-24 - 6-42, no longer available, order P/N 127930A1R pump for service, Includes: Ref. 1 - 27, Serial Range: JAF0037367-JAF0118499

1шт.

127930A1

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46139, see Figure 6-24 - 6-42, order P/N 127930A1R remanufactured pump, service replacement for all pumps, Includes: Ref. 1 - 27, Start Serial: JAF0118500

1шт.

127930A2

PUMP

1шт.

127930A2R

PUMP

Remanufactured PUMP - N.A. Only

1шт.

127930A2C

PUMP

Return No, PUMP - N.A. Only

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING rear drive pump

1шт.

N14667

KIT

VALVE ASSEMBLY, relief, P/N H672849 pump, Includes: Ref. 2 - 4

2шт.

H673227

VALVE

ASSEMBLY, relief, P/N's H672996, H673152, H673667, or 127930A1 pump, Includes: Ref. 2 - 4

2шт.

2

N14669

PLUG

hex, special, used with P/N N14667 relief valve assembly

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG hex, special, used with P/N H673227 relief valve assembly

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Use with either Ref. 2

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE relief, pump

1шт.

5

F23137

PLUG

pipe, special

2шт.

6

H435773

PLUG

orifice, P/N H672849 pump, Replaces: P/N N14000 plug

1шт.

6

H436007

PLUG

orifice, P/N's H672996, H673152, H673667, or 127930A1 pump

1шт.

7

166-31

12 PT SCREW,Flg, 5/16" - 18 x 2 1/4", Gr 8

BOLT 12 point flange, 5/16 NC x 2-1/4 inch, grade 8

2шт.

8

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 9 Hex Soc, 9/16"-18 ORB

2шт.

10

380-2524

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2"

BOLT 12 point flange, chemical locking, 5/16 NC x 1-1/2 inch

1шт.

11

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 12 Hex Hd, 9/16"-18 ORB

2шт.

13

N13998

ADAPTER

filter, no longer available, order P/N 101462A1 adapter

1шт.

14

N13987

O-RING

adapter, if used

3шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

backup, bypass valve

1шт.

17

N14663

BY-PASS VALVE

VALVE bypass, P/N H672849 pump

1шт.

17

H436008

BY-PASS VALVE

VALVE bypass, P/N's H672996, H673152, H673667, or 127930A1 pump

1шт.

18

V38371

VALVE

POPPET relief valve

1шт.

19

V38370

SPRING

relief valve

1шт.

20

H570283

SHIM

KIT shim, relief valve, P/N H672849 pump, no longer available, order P/N H407767 kit

1шт.

20

H407767

KIT

shim, relief valve, P/N's H672996, H673152, H673667, or 127930A1

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

N13266

PLUG

hex, special

1шт.

23

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 24 Hex Soc, 1 1/16"-12 ORB

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

25

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

Used with Ref. 26, if used Hex, 5/16"-18 x 1", G8, Full Thd

3шт.

26

101462A1

ADAPTER

filter, used with Ref. 25 and 27, see Ref. 13 above

1шт.

27

101463A1

SEAL

PLATE seal, adapter, used with Ref. 26 adapter, if used

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
