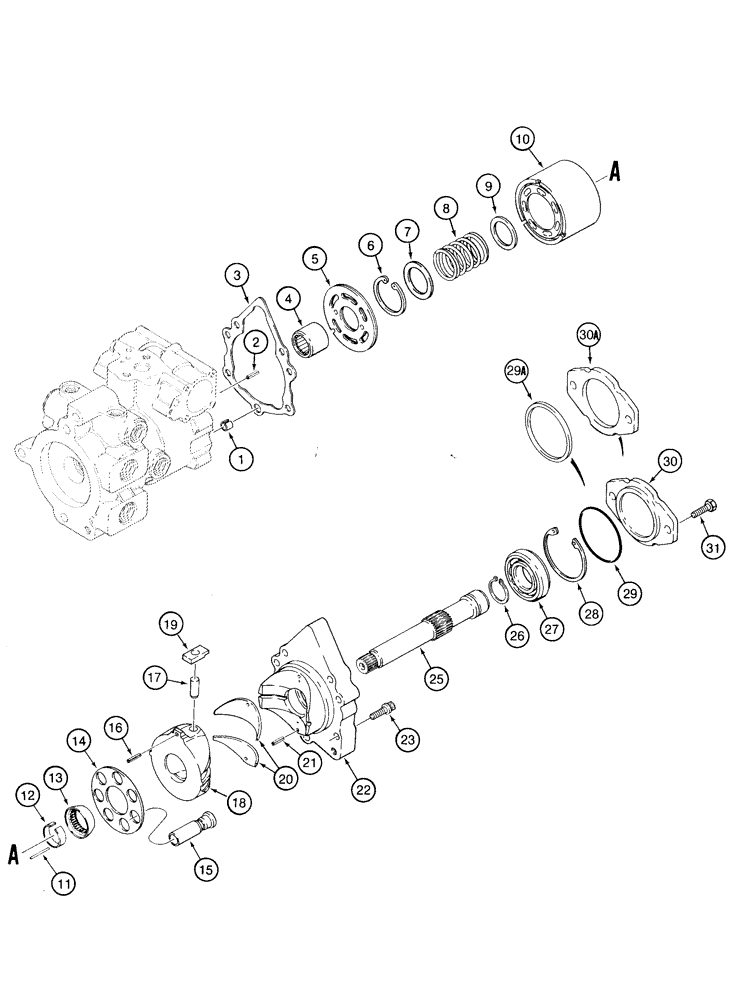

Запчасти Case 1835C (6-32) - TANDEM PUMP ASSEMBLY FRONT DRIVE PUMP CYLINDER BLOCK AND SHAFT (06) - POWER TRAIN

H672849

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46209, see Figure 6-24 - 6-42, no longer available, order P/N 127930A1R pump for service, Includes: Ref. 1 - 19, Start Serial: 17940460

1шт.

H672996

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46223, see Figure 6-24 - 6-42, no longer available, order P/N 127930A1R pump for service, Includes: Ref. 1 - 19, Serial Range: 17940460-JAF0013277

1шт.

H673152

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46262, see Figure 6-24 - 6-42, no longer available, order P/N 127930A1R pump for service, Includes: Ref. 1 - 19, Serial Range: JAF0013278-JAF0037366

1шт.

H673667

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46262, see Figure 6-24 - 6-42, no longer available, order P/N 127930A1R pump for service, Includes: Ref. 1 - 19, Serial Range: JAF0037367-JAF0118499

1шт.

127930A1

PUMP

ASSEMBLY, tandem, Sundstrand No. M91-46139, see Figure 6-24 - 6-42, order P/N 127930A1R remanufactured pump, service replacement for all pumps, Includes: Ref. 1 - 19, Start Serial: JAF0118500

1шт.

127930A2

PUMP

1шт.

127930A2R

PUMP

Remanufactured PUMP - N.A. Only

1шт.

127930A2C

PUMP

Return No, PUMP - N.A. Only

1шт.

1

N13994

SPACER

PIN roll, special, cover locating

1шт.

2

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

Pin, 3/16" x 7/16", Slotted

1шт.

3

H436704

GASKET,0.79mm Thk

cover, front

1шт.

4

1277297C1

NEEDLE BEARING

neeedle, shaft

1шт.

5

N14468

PLATE

valve, Start Serial: JAF0118500

1шт.

5

128929A1

LARGE PLATE

PLATE valve, left-hand rotation, Start Serial: JAF0118500

1шт.

115952A1

SET

BLOCK ASSEMBLY, cylinder, Replaces: P/N 4902/10015 block assembly, Includes: Ref. 6 - 15

1шт.

6

NSS

NOT SOLD SEPARAT

RING snap, spring

1шт.

7

115950A1

WASHER

WASHER spring, inner, Replaces: P/N 4902/10014 seat

1шт.

8

115948A1

SPRING

cylinder block, Replaces: P/N 4902/10013 spring

1шт.

9

115946A1

WASHER

WASHER spring, outer, Replaces: P/N 4902/10012 seat

1шт.

10

115944A1

CYLINDER BLOCK

BLOCK cylinder, Replaces: P/N 4902/10011 block

1шт.

11

110873A1

PIN,2.38mm OD x 33.53mm L

retaining, Serial Range: guide-shaft

3шт.

12

115943A1

SNAP RING

RING retaining, guide, Replaces: P/N 4902/10009 ring

1шт.

13

115942A1

GUIDE

retainer, Replaces: P/N 4902/10008 guide

1шт.

14

NSS

NOT SOLD SEPARAT

RETAINER piston

1шт.

15

NSS

NOT SOLD SEPARAT

PISTON cylinder block

7шт.

178632A1

COVER

PLATE ASSEMBLY, swash, block, Includes: Ref. 16 - 18

1шт.

16

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

1шт.

17

N13254

PIN

swash plate

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE swash, block

1шт.

19

N13224

SLEEVE

RETAINER pin

1шт.

140008A1

GASKET KIT

KIT seal, overhaul P/N 127930A1 pump, component parts not serviced seperately

1шт.

REF

INSTRUCTION

PUMP ASSEMBLY, tandem, pump options are P/N's H672849, H672996, H673152, H673667 and H127930A1, Includes: Ref. 20 - 31

1шт.

20

N14472

BEARING

JOURNAL bearing, used with P/N 138-51 roll pin

2шт.

20a

193488A1

BEARING LINER

JOURNAL bearing, used with P/N 193494A1 flanged pin, not shown

2шт.

21

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, , Used with P/N N14472 journal 1/8" x 3/8", Slotted

2шт.

21a

193494A1

PIN, ROLL

PIN flanged, used with P/N 193488A1 journal, not shown

2шт.

22

N14665

COVER

front, P/N's H672849, H672996, or H673152 pump, uses 3/8 inch bolt

1шт.

22

H436705

COVER

P/N H673667 or 127930A1 pump, uses 7/16 inch bolt

1шт.

23

27279R1

12 PT SCREW,Flg, 3/8" - 16 x 1"

BOLT - 12 point flange, 3/8 NC x 1 inch, grade 8, Used with P/N N14665 cover

6шт.

23

223677A1

SCREW,Torx, 7/16"

torx head, special, 7/16 inch, Replaces: P/N 80-1716, 12 point flange bolt, used with P/N H436705 cover

6шт.

25

N13222

SHAFT

front, tandem pump

1шт.

26

100-11137

SNAP RING,#137, Ext

Ring, Snap, , shaft cover, bearing #137, Ext

1шт.

27

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING ball, front cover

1шт.

28

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

Ring, Snap, , Front cover, brg 2.812", Int, #281

1шт.

29

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

Plate -152, 70 Duro, 3.237" ID x .103" Thk

1шт.

29a

H438062

SHAFT SEAL

O-RING quad, if used

1шт.

30

N13258

PLATE

cover, no longer available, order P/N H438062 O-ring, Ref. 29A and P/N H438063 plate

1шт.

30a

H438063

LARGE PLATE

PLATE cover, if used

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

2шт.
