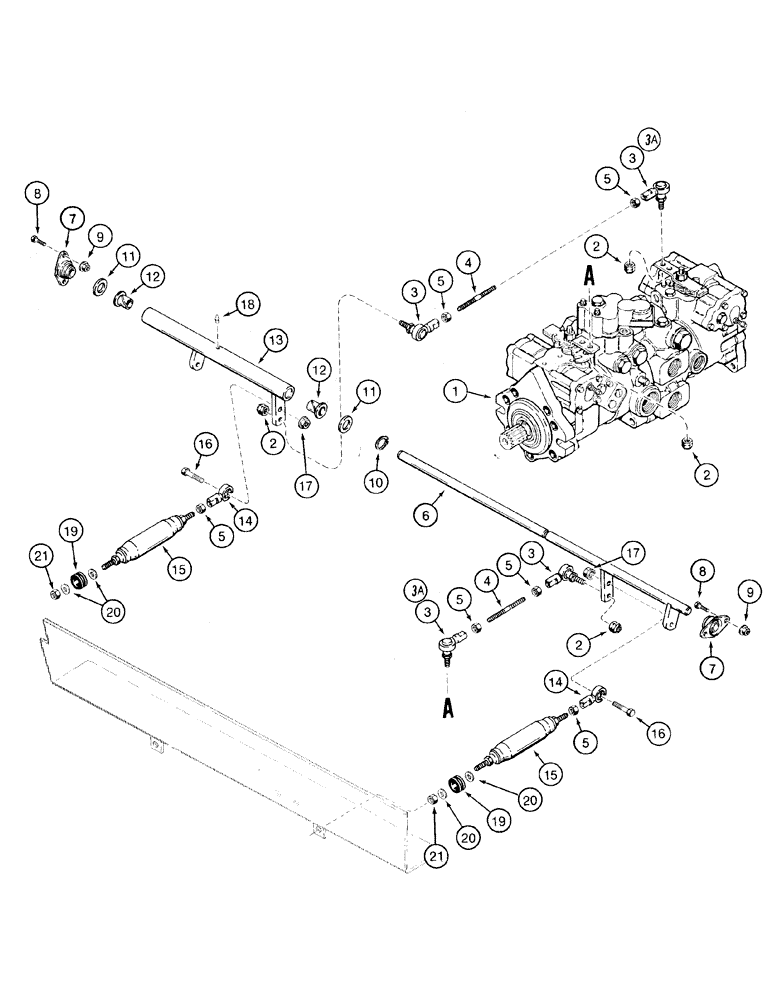

Запчасти Case 1835C (6-20) - TANDEM PUMP LINKAGE, P.I.N. JAF0037682 AND AFTER (06) - POWER TRAIN

1

H673667

PUMP

ASSEMBLY, tandem, see Figure 6-24 -6-42, no longer available, order P/N 127930A1R pump, see Figure 6-24 - 6-42, Serial Range: JAF0037682-JAF0118499

1шт.

1

127930A1

PUMP

ASSEMBL, tandem, see Figure 6-24 - 6-42, order P/N 127930A1R remanufactured pump, service replacement for all pumps, Start Serial: JAF0118500

1шт.

1

127930A2

PUMP

1шт.

1

127930A2R

PUMP

Remanufactured PUMP - N.A. Only

1шт.

1

127930A2C

PUMP

Return No, PUMP - N.A. Only

1шт.

2

231-2446

NUT,3/8"-24, GB

NUT hex, self-locking, 3/8 inch NF

4шт.

3

R47940

BALL JOINT

JOINT ball, 3/8 inch NF, if used

4шт.

3a

230425A1

BALL JOINT,3/8" - 24 x 1-3/5"

JOINT ball, with hex slot, 3/8 inch NF, if used

2шт.

4

H435922

ROD

control

2шт.

5

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

6шт.

6

H674402

SHAFT

cross, with two lugs, pump control

1шт.

7

D139039

BEARING ASSY,19mm ID

BEARING flange type, cross shaft mounting

2шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

4шт.

10

103-1475

SNAP RING,#75, Ext

Ring, Snap, , Cross shaft to bellcrank (Replaces P/N R39773) #75, Ext

1шт.

11

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER special, hardened, spacer

2шт.

12

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

nylon, if used

2шт.

13

H674401

CONTROL LEVER

BELLCRANK cross shaft, used without Ref. 12 bushings

1шт.

13

H674644

CRANK

BELLCRANK cross shaft, used with Ref. 12 bushings

1шт.

14

A32398

BALL JOINT

JOINT ball, female, 3/8 inch NF

2шт.

15

D66538

SHOCK ABSORBER

ABSORBER shock, pump controls

2шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

2шт.

17

231-5146

FLANGE NUT,3/8"-16

2шт.

18

219-86

LUBE NIPPLE,1/8" NPTF

FITTING grease, straight, self-tap 1/8 PT x 5/8 inch

1шт.

19

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

rubber, 5/8 inch groove diameter, shock absorber

2шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

4шт.

21

231-2446

NUT,3/8"-24, GB

NUT hex, self-locking, 3/8 inch NF

2шт.
