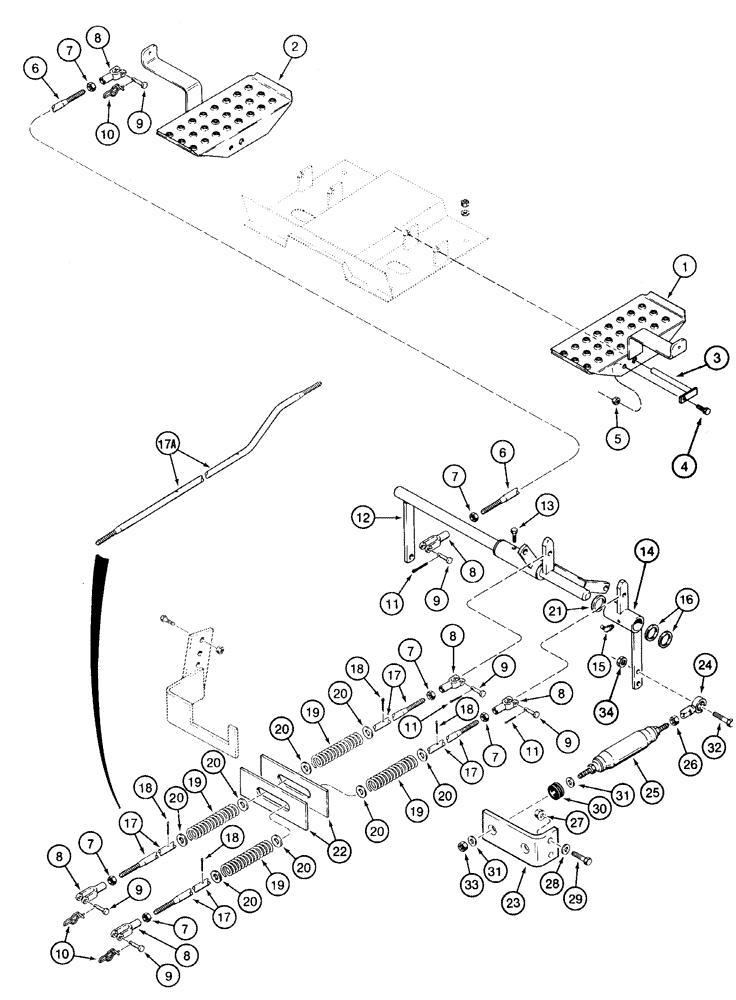

Запчасти Case 1835C (6-14) - LOADER CONTROLS, USED ON MODELS WITH FOOT CONTROLS (06) - POWER TRAIN

1

H673772

PEDAL

foot control, right-hand

1шт.

2

H673783

PEDAL

foot control, left-hand

1шт.

3

H673771

PIN,12.7mm OD x 140mm L

pedal mounting

2шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch

2шт.

5

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

6

H436801

ROD ASSY.

ROD foot pedal

2шт.

7

425-115

NUT,5/16"-24, G5

hex, 5/16 inch NF

8шт.

8

H382283

YOKE,5/16" - 24

CLEVIS adjustable, special, Replaces: P/N E20573 clevis

8шт.

9

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN clevis

8шт.

10

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

RETAINER clevis pin, special

4шт.

11

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

4шт.

12

H674386

SHAFT

cross, loader

1шт.

13

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

1шт.

14

H674388

CONTROL LEVER

BELLCRANK cross shaft

1шт.

15

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING grease, 1/8 PT self-tap x 3/4 inch, 90°

1шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch

2шт.

17

H437515

ROD

loader valve connecting, straight, used without self-leveling

2шт.

17a

H437737

ROD

loader valve connecting, with two bends, used with loader valves P/N 108222A1 and P/N H674275, models with self-leveling

2шт.

18

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.

19

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

rod

4шт.

20

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Spacer 3/8"

8шт.

21

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER special, hardened, centering

1шт.

22

H436963

LARGE PLATE

PLATE centering

2шт.

23

114834A1

ANGLE BAR

ANGLE shock mount

2шт.

24

A32398

BALL JOINT

JOINT ball, female, 3/8 inch NF, Replaces: P/N D59922 joint

2шт.

25

D66538

SHOCK ABSORBER

ABSORBER shock

2шт.

26

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

4шт.

28

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

30

248-2198

GROMMET,3/8" ID x 5/8" Groove Dia

rubber, 5/8 inch groove diameter, loader control

2шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

6шт.

32

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

2шт.

33

231-2446

NUT,3/8"-24, GB

NUT hex, self-locking, 3/8 inch NF

2шт.

34

231-5146

FLANGE NUT,3/8"-16

4шт.
