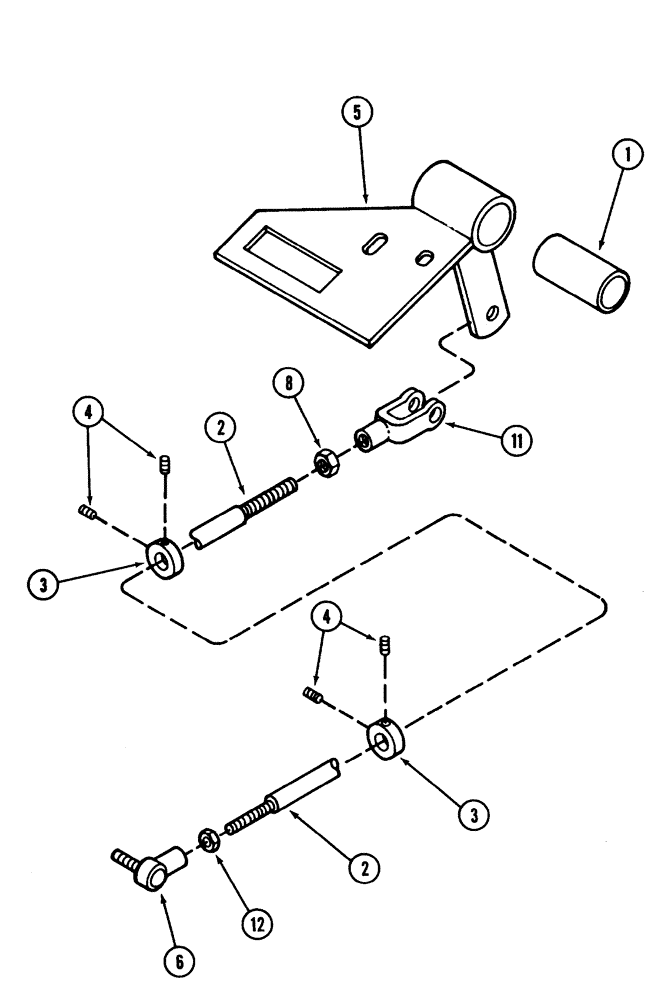

Запчасти Case 1835C (6-12) - LOADER CONTROLS USED ON MODELS WITH HAND CONTRLOS P.I.N. JAF0037367 AND AFTER (06) - POWER TRAIN

120923A1

SET

KIT service, parking brake rod, with instruction sheet, Includes: Ref. 1 - 12

1шт.

1

119616A1

BUSHING

bronze

1шт.

2

123236A1

ROD

seat bar

1шт.

3

120777A1

COLLAR

COLLAR locking, with set screw

2шт.

4

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW set, hex socket headless, cup point, 1/4 NC x 1/4 inch

4шт.

5

119815A1

LARGE PLATE

PLATE lock

1шт.

6

121303A1

ROD

JOINT ball, male

1шт.

8

425-115

NUT,5/16"-24, G5

hex, 5/16 inch NF

1шт.

9

120950A1

DECAL

Danger, before leaving the seat, English, not shown, see Figure 9-62

1шт.

10

120951A1

DECAL

Danger, keep out of this area, English, not shown, see Figure 9-62

1шт.

11

213-115

ADJUSTABLE CLEVIS,5/16" - 24

CLEVIS, ADJUSTABLE, 5/16"-24

1шт.

12

425-114

NUT,1/4"-28, G5

1шт.
