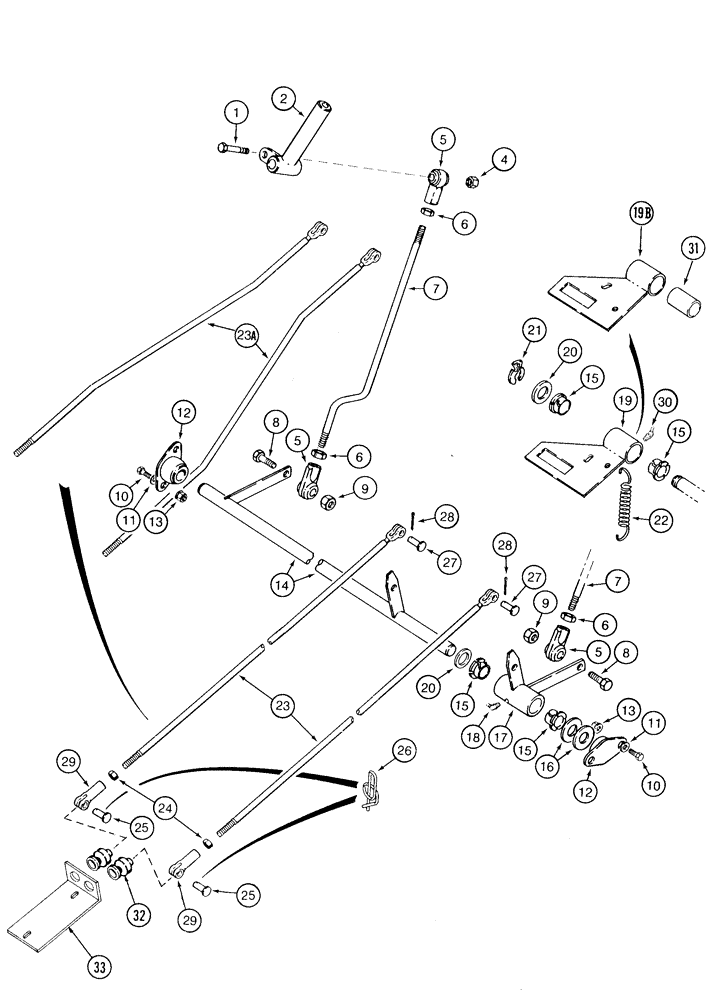

Запчасти Case 1835C (6-10) - LOADER CONTROLS USED ON MODELS WITH HAND CONTROLS, P.I.N. JAF0037367 AND AFTER (06) - POWER TRAIN

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

2шт.

2

D128278

LEVER

pump control, left-hand or right-hand

1-2шт.

3

D133283

LEVER

pump control, right-hand, models with horn, not shown

1шт.

4

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

5

A32398

BALL JOINT

JOINT ball, female, 3/8 inch NF, Replaces: P/N D59922 joint

4шт.

6

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

4шт.

7

D128257

ROD

control lever to cross shaft

2шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

2шт.

9

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

11

H426775

WASHER

flat, special, hardened, if used

4шт.

12

D139039

BEARING ASSY,19mm ID

BEARING flange type, cross shaft mounting

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

4шт.

14

H673557

SHAFT ASSY.

SHAFT cross, loader

1шт.

15

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

nylon, used with P/N H672918, Ref. 19 lock plate, if used

4шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch

2шт.

17

H674387

LEVER

BELLCRANK cross shaft, used with dual seat bars

1шт.

17

132431A1

PITMAN

BELLCRANK cross shaft, used on models with single seat bars

1шт.

18

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING grease, 1/8 PT self-tap x 3/4 inch, 90°

2шт.

19

H672918

LOCK

PLATE loader lock, used with Ref. 15 nylon bushings, no longer available, order P/N 120923A1 kit

1шт.

19a

H674396

PLATE

loader lock, used without Ref. 15 nylon bushings, used on models with dual seat bars, not shown, no longer available, order P/N 120923A1 kit, parts list see Figure 6-12, Start Serial: JAF0097243

1шт.

19b

119815A1

LARGE PLATE

PLATE lock, loader, used on models with dual seat bars, Start Serial: JAF0097243

1шт.

20

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER special, hardened

1шт.

21

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RING retaining

1шт.

22

D124939

SPRING

lock, control lever

1шт.

23

H435759

ROD

loader valve connecting, straight, used on models without self-leveling

2шт.

23a

H436766

ROD

loader valve connecting, two bends, used on models with self-leveling

2шт.

24

425-115

NUT,5/16"-24, G5

hex, 5/16 inch NF

2шт.

25

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN clevis, loader rod

2шт.

26

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

RETAINER clevis pin, special

2шт.

27

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

28

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

29

H382283

YOKE,5/16" - 24

CLEVIS adjustable, special, loader valve connecting rod, Replaces: P/N E20573 clevis

2шт.

30

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

FITTING grease, 1/8 PT self-tap x 3/4 inch, 90°

2шт.

31

119616A1

BUSHING

bronze

2шт.

32

195614A1

BOOT

rubber, loader valve, Start Serial: JAF0150933

2шт.

33

194403A2

SUPPORT

RETAINER boot, Start Serial: JAF0150933

2шт.

120923A1

SET

KIT service, parking brake rod, includes, instruction sheet and see parts list Figure 6-12

1шт.
