Запчасти Case 1835C (6-06) - FORWARD AND REVERSE CONTROL LEVERS AND LINKAGE P.I.N. JAF0037367 AND AFTER (06) - POWER TRAIN

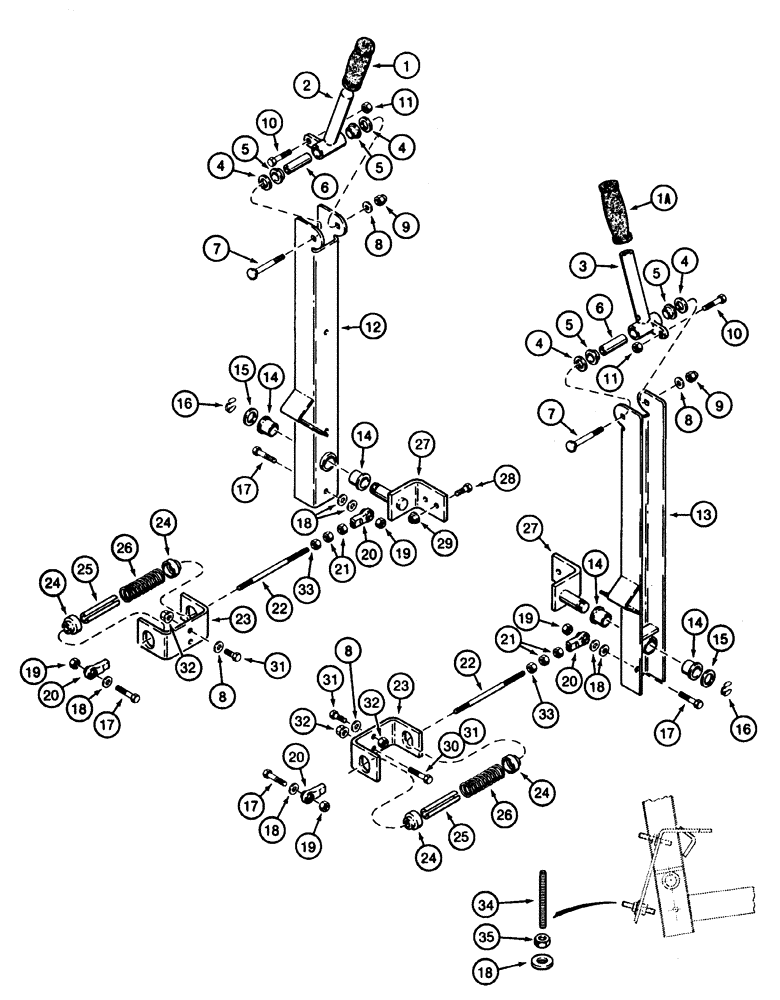

Схема запчастей Case 1835C - (6-06) - FORWARD AND REVERSE CONTROL LEVERS AND LINKAGE P.I.N. JAF0037367 AND AFTER (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

D128268

HANDLE

GRIP control lever, black, without hole, if used

1-2шт.

1a

D133282

HANDLE

GRIP control lever, black, with hole for horn button, if used

1шт.

2

D128278

LEVER

pump control, left-hand or right-hand

1-2шт.

3

D133283

LEVER

pump control, right-hand, models with horn

1шт.

4

D128964

WASHER

flat, special, if used

4шт.

4

495-11066

WASHER,5/8", SAE

flat, 21/32 x 1-5/16 x 3/32 inch, if used, used with foot controls

4шт.

5

E20959

BUSHING

control lever, Replaces: P/N D123758 bushing

4шт.

6

H435707

SPACER,11.66mm ID x 15.88mm OD x 53mm L

control lever

2шт.

7

411-544

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 2

BOLT carriage, 5/16 NC x 2-3/4 inch, grade 2

2шт.

8

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

1шт.

9

234-10431

CROWN NUT,Crown, 5/16"-18

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

2шт.

11

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

12

H673190

ARM

control lever, left-hand

1шт.

13

H673191

ARM

control lever, right-hand

1шт.

14

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

nylon

4шт.

15

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER special, hardened

1шт.

16

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RING retaining, control lever arm, Replaces: P/N D95097 ring

2шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

4шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

10шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

10шт.

19

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

20

A32398

BALL JOINT

JOINT ball, female, 3/8 inch NF, Replaces: P/N S108030 joint

4шт.

21

425-156

JAM NUT,Jam, 3/8"-24, G5

4шт.

22

H435920

ROD

control, pump cross shaft

2шт.

23

D127561

BRACKET

spring retaining

2шт.

24

D63156

SPRING CUP

SEAT spring

4шт.

25

D127563

PIN, SPLIT (COTTER)

PIN roll, special

2шт.

26

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

rod

2шт.

27

D128237

PIVOT

BRACKET control lever arm, with shaft

2шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

4шт.

29

231-5146

FLANGE NUT,3/8"-16

4шт.

30

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch, if used

1шт.

31

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

3-4шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

4шт.

33

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

2шт.

34

481-33832

SET SCREW,3/8"-16 x 2", Slotted

SCREW set, slotted headless, 3/8 NC x 2 inch, flat point

4шт.

35

425-146

JAM NUT,3/8" - 16, Gr 5

hex, jam, 3/8 inch NC

4шт.

Выбрано товаров: 38
