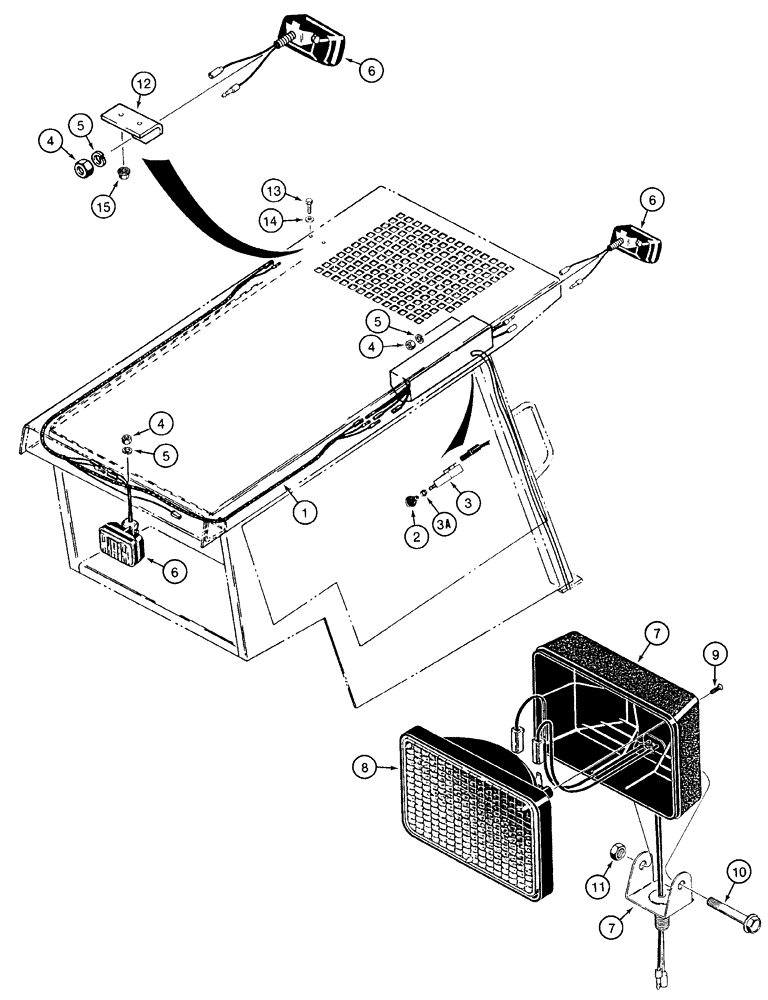

Запчасти Case 1835C (4-26) - LAMPS, FRONT AND REAR (04) - ELECTRICAL SYSTEMS

1

D139709

HARNESS

horn and lamp

1шт.

2

D95781

BUTTON

KNOB lamp switch, without symbol, if used

1шт.

2

108314A1

BUTTON

KNOB lamp switch, with symbol, if used

1шт.

3

D74330

SWITCH

ASSEMBLY, lamps

1шт.

3a

N7557

NUT

hex, special, 3/8 inch NF

1шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2-3шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

6

D126237

HEADLIGHT

LAMP ASSEMBLY, 12 volt

3шт.

7

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

8

N13125

LAMP

BULB sealed beam

1шт.

9

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW self-tapping, flat head slotted, No. 8-18 x 1/2 inch

2шт.

10

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

11

231-1445

NUT,5/16"-18, GB

NUT hex, self-locking, 5/16 inch NC

1шт.

12

H435451

BRACKET

lamp mounting, left-hand front lamp, if used

1шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch, If used

2шт.

14

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), If used 1/4", SAE

2шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

If used Flg, USR, 1/4"-20

2шт.

16

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

If used, not shown Flg, USR, 1/2"-13

1шт.
