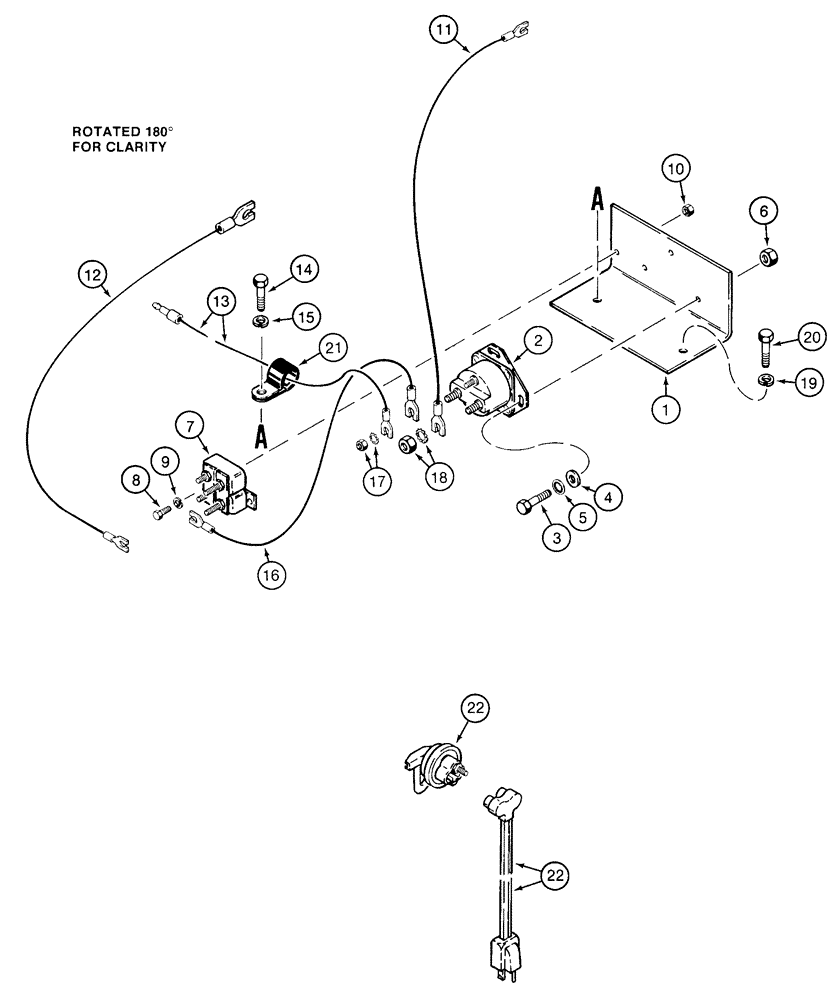

Запчасти Case 1835C (4-24) - ENGINE HEATING COMPONENTS, DIESEL MODELS ONLY, DIESEL OR GASOLINE MODELS (04) - ELECTRICAL SYSTEMS

1

H434861

BRACKET

relay and circuit breaker mounting

1шт.

2

A39079

SOLENOID

magnetic relay, glow plug

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch

2шт.

4

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

5

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER internal tooth lock, 1/4 inch

2шт.

6

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

7

A59704

BREAKER

circuit, 80 amperes, starter

1шт.

8

163-32

SCREW,Hex, #10 - 24 x 1/2"

machine, hex head, No. 10 NC x 1/2 inch

2шт.

9

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

10

225-14110

NUT,#10-24

2шт.

11

D139532

ELECTRICAL WIRE

WIRE, relay to glow plug

1шт.

12

D139539

ELECTRICAL WIRE

WIRE, starter to circuit breaker

1шт.

13

D139540

ELECTRICAL WIRE

WIRE, relay to ignition switch

1шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

1шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16

D139533

ELECTRICAL WIRE

WIRE, circuit, Serial Range: breaker-relay

1шт.

17

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

18

193-1009

NUT,Keps, w/LW, 5/16"-18

hex, with external tooth lock washer, 5/16 NC

2шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

1шт.

21

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type, Rear harness and relay to ignition switch wire 1/2", Insul, 5/16" Bolt

1шт.

22

1981595C1

BLOCK

HEATER block, engine coolant, cold start, Replaces: P/N 1959660C1 block heater DIESEL OR GASOLINE ENGINES

1шт.
