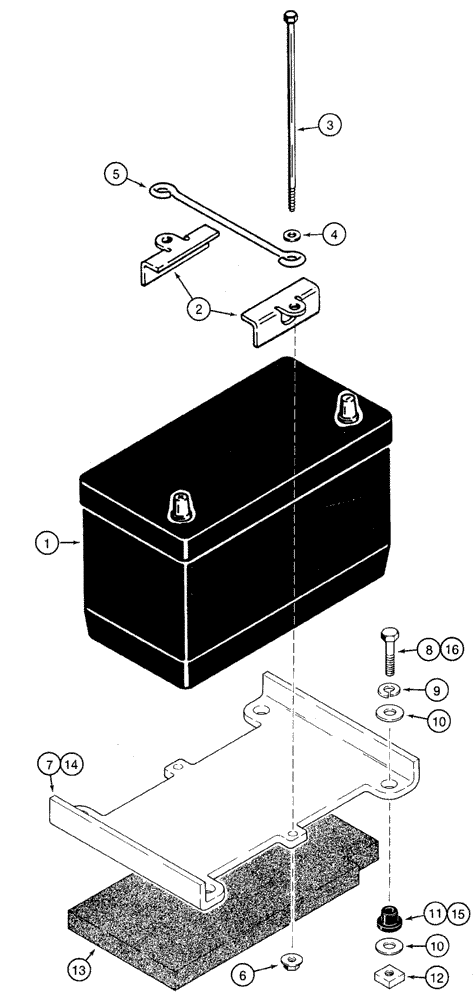

Запчасти Case 1835C (4-22) - BATTERY MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

BHC30685W

WET BATTERY

dry, 12 volt, service replacement, Replaces: P/N BMF31E battery, see Figure 4-18 and 4-20 for cables and harnesses

1шт.

2

D125079

BRACKET

battery hold-down

2шт.

3

413-6152

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

hex, 3/8 NC x 9-1/2 inch

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

2шт.

5

D135073

BRACKET

ROD battery hold-down

1шт.

6

231-5146

FLANGE NUT,3/8"-16

2шт.

7

H435259

TRAY

battery, 8 mm thick, used with P/N D52276 insulator, no longer available, order P/N H437552 tray and 4 P/N H438341 insulators, Ref. 14 and 15

1шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch, use with Ref 7 tray only

4шт.

9

492-11038

LOCK WASHER,3/8"

4шт.

10

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

8шт.

11

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR rubber, use with P/N H435259 Ref. 7, tray only

4шт.

12

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

4шт.

13

H435275

SPACER

PAD rubber, battery tray

1шт.

14

H437552

SUPPORT

TRAY battery, 3 mm thick, if used, use with Ref. 15 insulator

1шт.

15

H438341

O-RING

INSULATOR rubber, use with Ref. 14 tray only

4шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch, use with Ref. 14 tray only

4шт.
