Запчасти Case 1835C (4-20) - REAR HARNESS AND BATTERY, P.I.N. JAF0037682 AND AFTER (04) - ELECTRICAL SYSTEMS

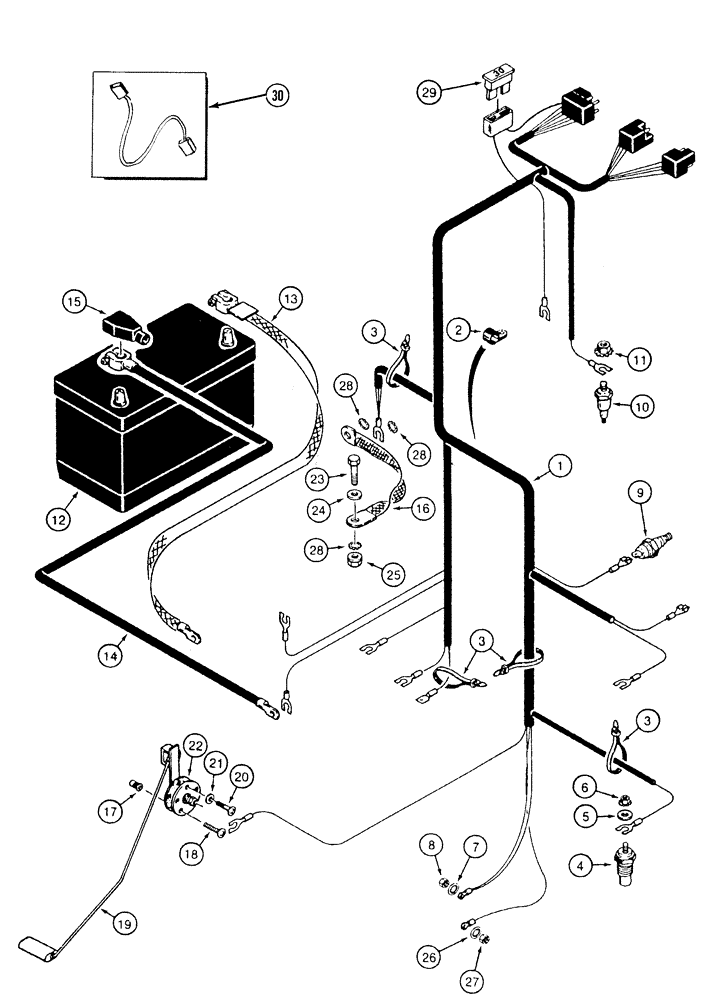

Схема запчастей Case 1835C - (4-20) - REAR HARNESS AND BATTERY, P.I.N. JAF0037682 AND AFTER (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

115741A1

HARNESS

rear, used with P/N H435964 front harness see Figure 4-12 Ref. 24, Replaces: P/N H435963 harness

1шт.

2

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

P-type, Rear harness 9/16", Insul, 3/8" Bolt

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

4

1983238C1

SENSOR,1/2" - 14

SENDER engine coolant temperature

1шт.

5

195-513

WASHER,#10

flat, 7/32 x 1/2 x 3/64 inch

1шт.

6

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

7

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

8

825-1408

NUT,M8, Cl 8

1шт.

9

A162297

SWITCH

SENDER engine oil pressure

1шт.

10

H439301

SWITCH

transmission temperature

1шт.

11

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

12

BHC30685W

WET BATTERY

dry, 12 volt, service replacement, Replaces: P/N BMF31E battery, for battery mounting parts and hardware see Figure 4-22

1шт.

13

H437801

CABLE

battery, negative

1шт.

14

D126896

CABLE

ASSEMBLY, battery, 58 inch/1475 mm long, positive, Includes: Ref. 15

1шт.

15

383619R1

COVER

BOOT positive battery cable

1шт.

16

D73383

STRAP

ground, Serial Range: engine-frame

1шт.

17

H435860

INSERT

threaded

5шт.

18

H435859

SCREW,#10 - 32 x 3/4"

special, sealing

4шт.

19

D125062

TRANSMITTER

SENDER fuel level

1шт.

20

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

machine, pan Phillips, No. 10 NF x 3/4 inch

1шт.

21

D83885

WASHER

flat, copper, special

1шт.

22

528359R4

GASKET,3.05mm Thk

fuel level sender, Replaces: P/N 104812C3 gasket

1шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

1шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

1шт.

25

231-5146

FLANGE NUT,3/8"-16

1шт.

26

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

27

825-1405

NUT,M5, Cl 8

1шт.

28

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

3шт.

29

A149804

FUSE

light green, 30 ampere

1шт.

30

1981594C1

ELECTRICAL WIRE

WIRE starter to coil, 610 mm/24 inch long, used with external resistor

1шт.

Выбрано товаров: 30
