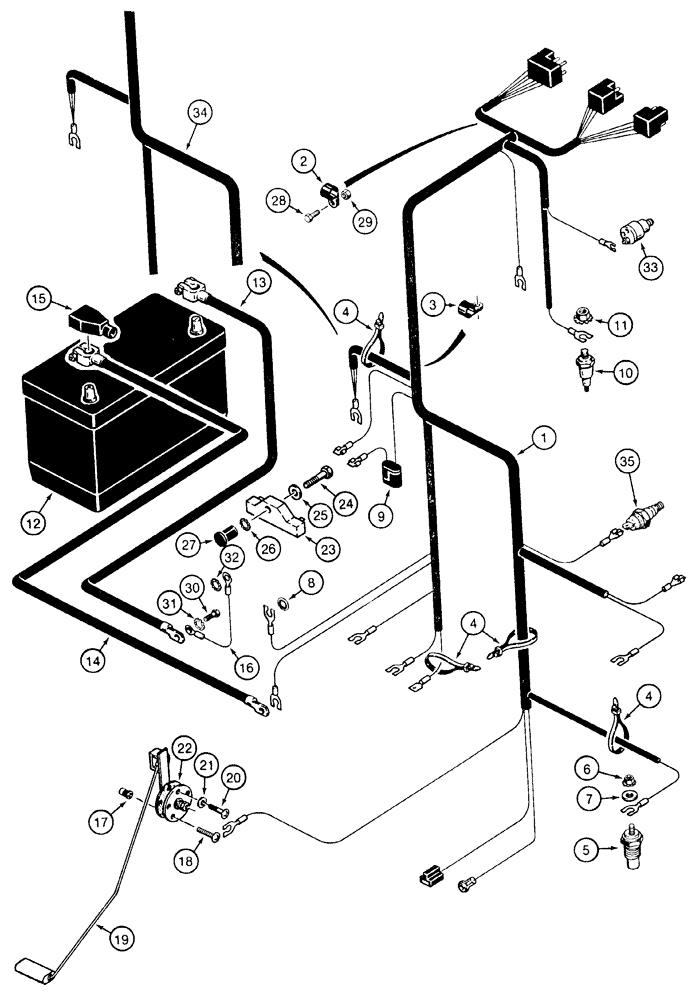

Запчасти Case 1835C (4-18) - REAR HARNESS AND BATTERY, PRIOR TO P.I.N. JAF0037682 (04) - ELECTRICAL SYSTEMS

1

D128959

HARNESS

rear, resistor at engine, used with P/N D139145 front harness, Includes: Ref. 23 - 27 and see Figure 4-12 Ref. 4, if used

1шт.

2

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

P-type, Rear harness 3/4", Insul, 5/16" Bolt

1шт.

3

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type, Mounts to P/N H434861 bracket, See Figure 4-24 Ref. 1 and See Ref. 14 and 15 for mounting hardware 1/2", Insul, 5/16" Bolt

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

5

A154283

SWITCH

SENDER engine coolant temperature, no longer used, order P/N 1983238C1 sender, Serial Range: -JAF0037367

1шт.

5

1983238C1

SENSOR,1/2" - 14

SENDER engine coolant temperature, Includes: Ref. 6 and 7, Start Serial: JAF0037367

1шт.

6

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

7

195-513

WASHER,#10

flat, 7/32 x 1/2 x 3/64 inch

1шт.

8

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER internal tooth lock, 1/4 inch

1шт.

9

L71879

DIODE ELEMENT,400V, 3A

DIODE harness, if used

1шт.

10

H439301

SWITCH

transmission temperature

1шт.

11

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

12

A180406

BATTERY

dry, service replacement, order P/N BMF31E, 12 volt, see Figure 4-22 for mounting parts

1шт.

13

D126897

CABLE

battery, 38 inch/965 mm long, negative

1шт.

14

D126896

CABLE

ASSEMBLY, battery, 58 inch/1475 mm long, positive, Includes: Ref. 15

1шт.

15

383619R1

COVER

BOOT positive battery cable

1шт.

16

D87572

ELECTRICAL WIRE

WIRE ground, Serial Range: engine-frame

1шт.

17

H435860

INSERT

threaded

5шт.

18

H435859

SCREW,#10 - 32 x 3/4"

special, sealing

4шт.

19

D125062

TRANSMITTER

SENDER fuel level

1шт.

20

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

machine, pan Phillips, No. 10 NF x 3/4 inch

1шт.

21

D83885

WASHER

flat, copper, special

1шт.

22

528359R4

GASKET,3.05mm Thk

fuel level sender, Replaces: P/N 104812C3 gasket

1шт.

23

107558C1

RESISTOR

at flywheel housing cover, used with P/N D128959 harness

1шт.

24

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch, if used

1шт.

25

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), If used

1шт.

26

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, , if used Ext Tooth, 5/16"

1шт.

27

D135342

ISOLATOR

MOUNT isolation, if used

1шт.

28

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

1шт.

29

230-4215

NUT,5/16"-18, GA

NUT hex, self-locking, 5/16 inch NC

1шт.

30

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

31

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

32

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

33

H436247

SWITCH, PRESSURE

SWITCH charge pressure, Replaces: P/N D123864 switch

1шт.

34

115741A1

HARNESS

rear, used with P/N H435964 front harness, see Figure 4-12 Ref. 24, if used, Replaces: P/N H435963 harness

1шт.

35

A162297

SWITCH

SENDER engine oil pressure

1шт.
