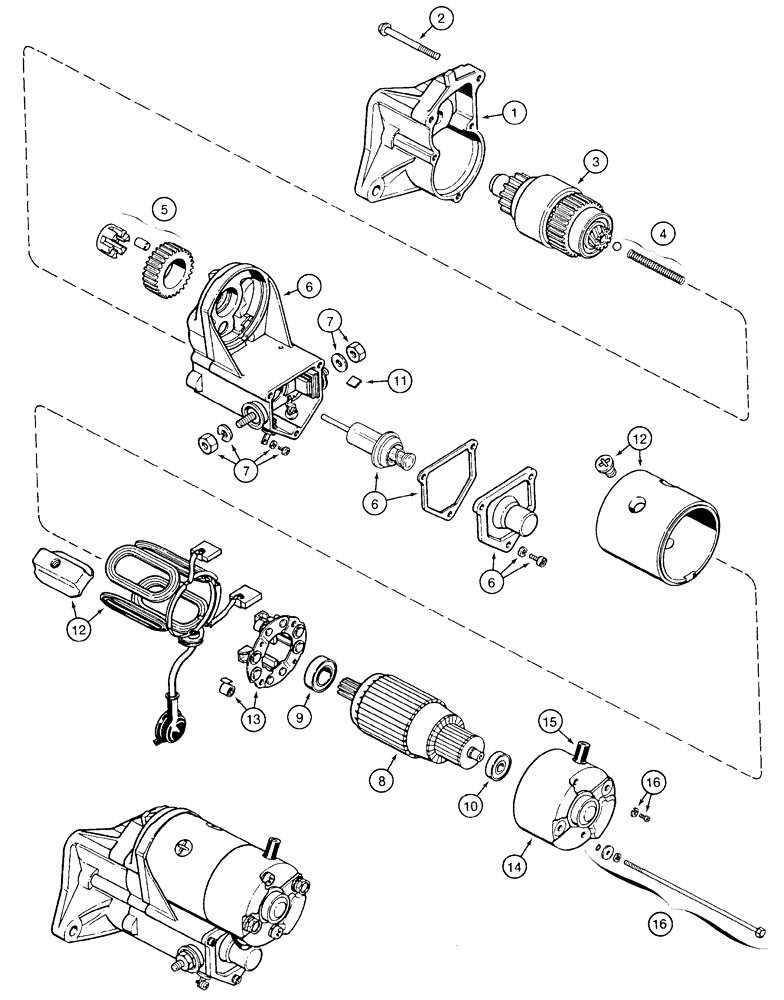

Запчасти Case 1835C (4-06) - STARTER, DIESEL MODELS ONLY (04) - ELECTRICAL SYSTEMS

1959854C1

STARTING MOTOR

STARTER ASSEMBLY, diesel engine, Includes: Ref. 1 - 16

1шт.

87297368

REMAN-STARTER

Remanufactured STARTER - For N.A. Only

1шт.

87297369

CORE-STARTER

Return number - For N.A. only

1шт.

1

1981581C1

HOUSING

HOUSING drive end

1шт.

2

1981582C1

SCREW

BOLT hex flange, special

3шт.

3

1981576C1

CLUTCH

CLUTCH ASSEMBLY, starter drive, components not serviced separately

1шт.

4

1981578C1

SPRING

KIT hardware, starter drive

1шт.

5

1981577C1

PINION

KIT repair, reduction gear

1шт.

6

1981579C1

SWITCH

SWITCH ASSEMBLY, magnetic

1шт.

7

1981580C1

KIT

KIT hardware, magnetic switch

1шт.

8

NSS

NOT SOLD SEPARAT

ARMATURE starter

1шт.

9

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

BEARING drive end

1шт.

10

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

BEARING, BALL

1шт.

11

A47241

PLATE

PLATE lock

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY, includes coil and brushes

1шт.

13

NSS

NOT SOLD SEPARAT

HOLDER ASSEMBLY brush, includes brush holder and springs

1шт.

14

NSS

NOT SOLD SEPARAT

FRAME commutator end, not shown

1шт.

15

1981573C1

COVER

COVER end frame

1шт.

16

1981575C1

KIT

KIT hardware

1шт.
