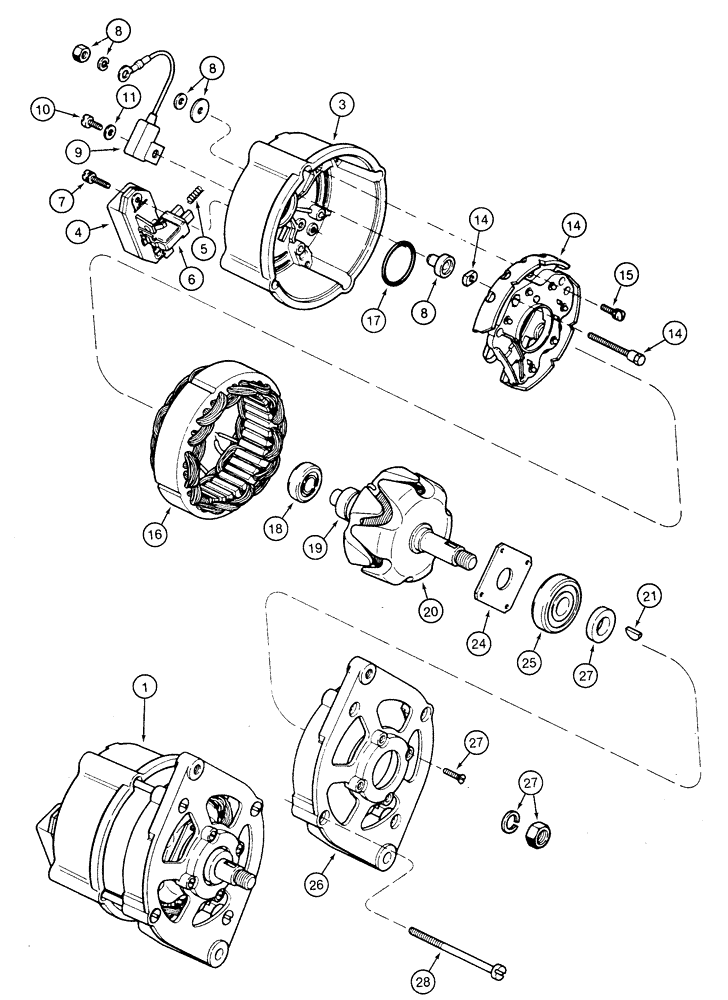

Запчасти Case 1835C (4-02) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

A186125

ALTERNATOR

ALTERNATOR ASSEMBLY engine, 65 ampere, no longer available, for service order P/N A187873 alternator and Includes: Ref. 3 - 28, plus Ref. 26 - 30, see Figure 4-04

1шт.

1

AR186125GV

ALTERNATOR

Value

1шт.

1

AR186125

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

AC186125

CORE-ALTERNATOR

Return Number

1шт.

1

87297230

REMAN-ALTERNATOR

REMANUFACTURED Bosch 12v 65a ALTERNATOR

1шт.

1

87297231

CORE-ALTERNATOR

Return Number, Bosch 12 v 65a ALTERNATOR

1шт.

3

A186187

HOUSING

HOUSING collector ring end

1шт.

4

A186189

REGULATOR

REGULATOR voltage, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING compression

2шт.

6

NSS

NOT SOLD SEPARAT

BRUSH ASSEMBLY alternator

1шт.

7

A186194

SCREW,M4 x 18mm

SCREW hex flange, special, with washer

2шт.

8

3079135R1

TERMINAL CONNECTOR

KIT terminal

1шт.

9

A186195

CAPACITOR

CAPACITOR alternator

1шт.

10

625589C1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8

SCREW special

1шт.

11

A186196

WASHER

WASHER special

1шт.

14

A186197

RECTIFIER

BRIDGE rectifier, includes hardware

1шт.

15

A186188

SCREW

BOLT with washer, rectifier bridge retaining

3шт.

16

A186192

STATOR

STATOR alternator

1шт.

17

3079386R1

O-RING

O-RING bearing

1шт.

18

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BEARING ball

1шт.

19

A186185

RING

RING collector

1шт.

20

A186184

ROTOR

ROTOR alternator

1шт.

21

NSS

NOT SOLD SEPARAT

KEY rotor, no longer used, order P/N 3078897R1 rotor kit Ref. 27

1шт.

24

3078379R1

COVER

PLATE bearing retaining

1шт.

25

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING ball

1шт.

26

A186182

HOUSING

HOUSING drive end

1шт.

27

3078897R1

SET OF PARTS

KIT rotor retaining, for kit contents see Figure 4-04, Ref. 19 - 23

1шт.

28

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT slotted, special

4шт.
