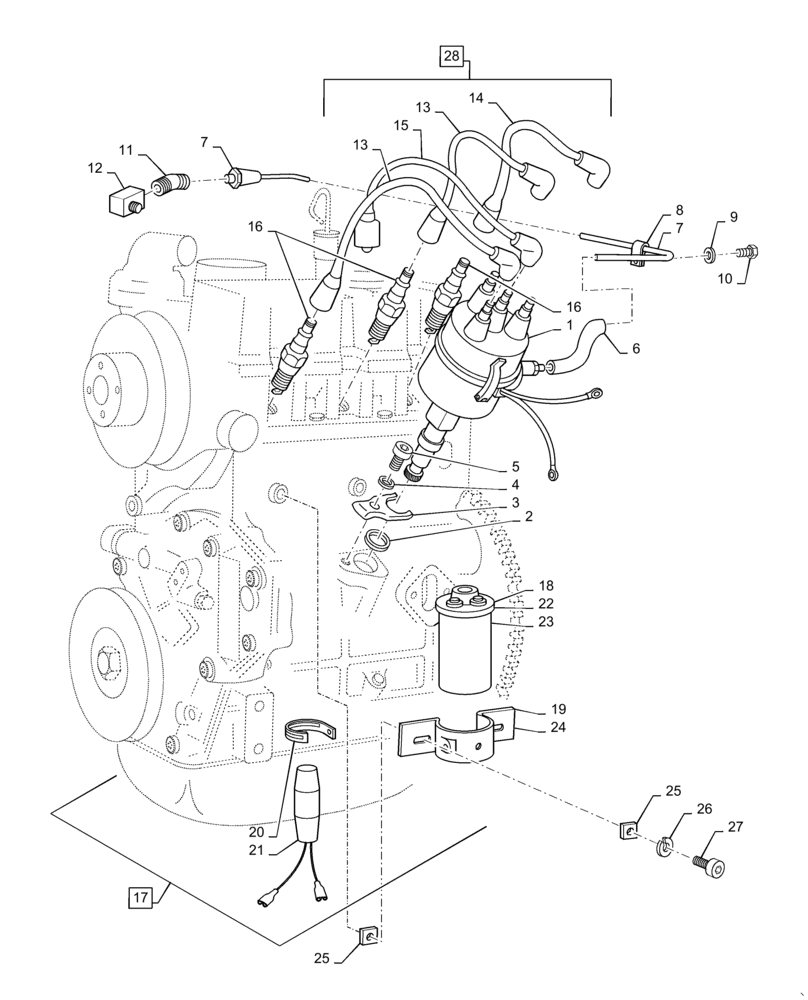

Запчасти Case 1835C (3-24) - IGNITION SYSTEM, TM-20 GASOLINE ENGINE (03) - FUEL SYSTEM

1

1959916C1

DISTRIBUTOR

ASSEMBLY, electrical, 3 cylinder gasoline engine, parts list see Figure 3-26

1шт.

2

1959917C1

GASKET

distributor, included in kit P/N1981593C1, see Figure 2-50

1шт.

3

1959918C1

CLAMP

holdown, distributor to block, special

1шт.

4

892-16008

LOCK WASHER,M8, Hvy

lock, 8 mm, clamp to block

1шт.

5

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

SCREW, , Clamp to block Hex Soc Hd, M8 x 25, 8.8

1шт.

6

1959921C1

HOSE

203 mm/8 inch long

1шт.

7

1959919C1

TUBE

vacuum advance, distributor to intake manifold

1шт.

8

1959922C1

CLIP

CLAMP P-type, 3/16 inch ID, vacuum tube to cylinder rear

1шт.

9

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

10

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

SCREW, Hex Soc Hd, M6 x 16, 8.8

1шт.

11

222-801

HYD CONNECTOR,3/8"-24, 45 Degree Fl x 1/8" NPT

ADAPTER straight, 3/8-24, 45° flare x 1/8 inch PT

1шт.

12

217-50

TEE,1/8"-27 NPTF Fem x 1/8"-27 NPTF Male Run

pipe, brass, 1/8 inch, intake manifold

1шт.

13

NSS

NOT SOLD SEPARAT

WIRE distributor to No. 1 and 2 cylinder plugs, order P/N 251497A1 kit

2шт.

14

NSS

NOT SOLD SEPARAT

WIRE distributor to No. 3 cylinder plug, order P/N 251497A1 kit

1шт.

15

NSS

NOT SOLD SEPARAT

WIRE high tension, distributor to coil, order P/N 251497A1 kit

1шт.

16

NS

NOT SERVICED

PLUG spark, Champion No. RN12YC, purchase locally

3шт.

17

1959923C1

COIL

ASSEMBLY ignition, external ballast, if used, Includes: Ref. 18 - 24

1шт.

18

NSS

NOT SOLD SEPARAT

COIL ignition

1шт.

19

1959848C1

BRACKET

ignition coil

1шт.

20

1959849C1

BRACKET

resistor

1шт.

21

NSS

NOT SOLD SEPARAT

RESISTOR ignition coil, no longer available, order P/N 179462A1 coil assembly

1шт.

22

179462A1

COIL

ASSEMBLY ignition, internal ballast, if used

1шт.

23

NSS

NOT SOLD SEPARAT

COIL ignition

1шт.

24

1959848C1

BRACKET

ignition coil

1шт.

25

1959924C1

SUPPORT

ignition coil

4шт.

26

892-16008

LOCK WASHER,M8, Hvy

lock, 8 mm

2шт.

27

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 25, 8.8

2шт.

28

251497A1

ELECTRICAL WIRE

KIT spark plug wires, Includes: Ref. 13 - 15

1шт.
