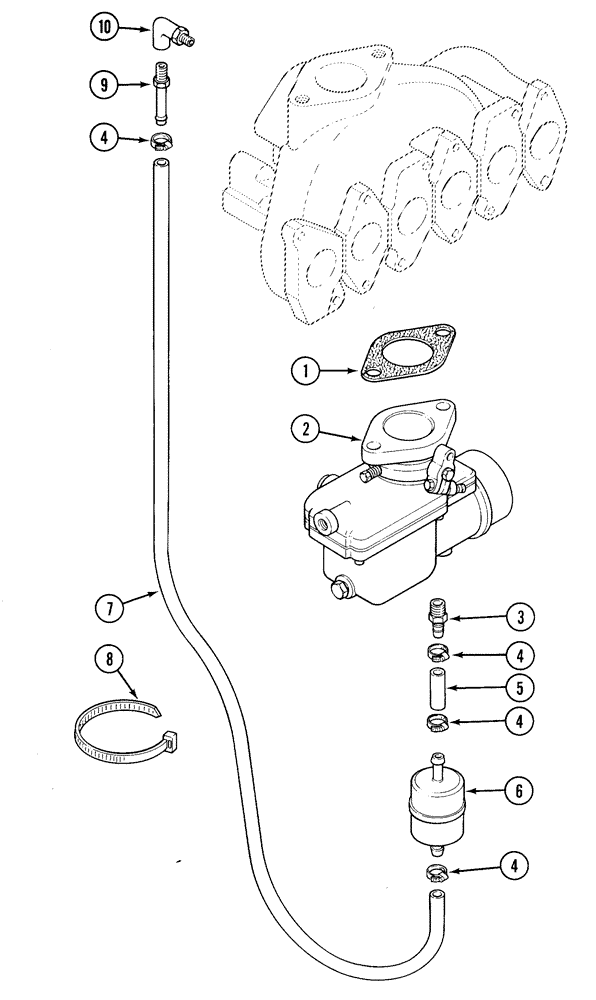

Запчасти Case 1835C (3-22) - CARBURETOR FUEL DRAIN, TM-20 GASOLINE ENGINE (03) - FUEL SYSTEM

1

39256

GASKET

carburetor, included in kit P/N 1981593C1, see Figure 2-50

1шт.

2

1960015C2

CARBURETOR

gas engine, up-draft, parts list Figure 3-20

1шт.

3

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

ADAPTER straight, brass, 1/4 barb end x 1/8 inch PT

1шт.

4

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjusting #4, 0.25/0.62 Type M Worm

4шт.

5

1289483C1

HOSE

65 mm/2-1/2 inch long, cut from P/N A21561X bulk hose

1шт.

6

1701232C91

FILTER

FILTER fuel, Replaces: P/N H413666 filter

1шт.

7

H435604

FUEL HOSE,6.35 mm ID x 381.00 mm, SAE 30R6, SAE 30R7

Cut from Bulk Hose 6.35 mm ID x 381.00 mm, SAE 30R6, SAE 30R7

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

9

H435581

FITTING

ADAPTER straight, special, 0.025 inch orifice

1шт.

10

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

A21561X

HOSE,6.35mm ID x 7620mm L

bulk, 6/1/4 x 13/1/2 x 7620 mm/300 inch long

1шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

bulk, 6/1/4 x 13/1/2 x 15240 mm/600 inch long, sold by the foot

1шт.
