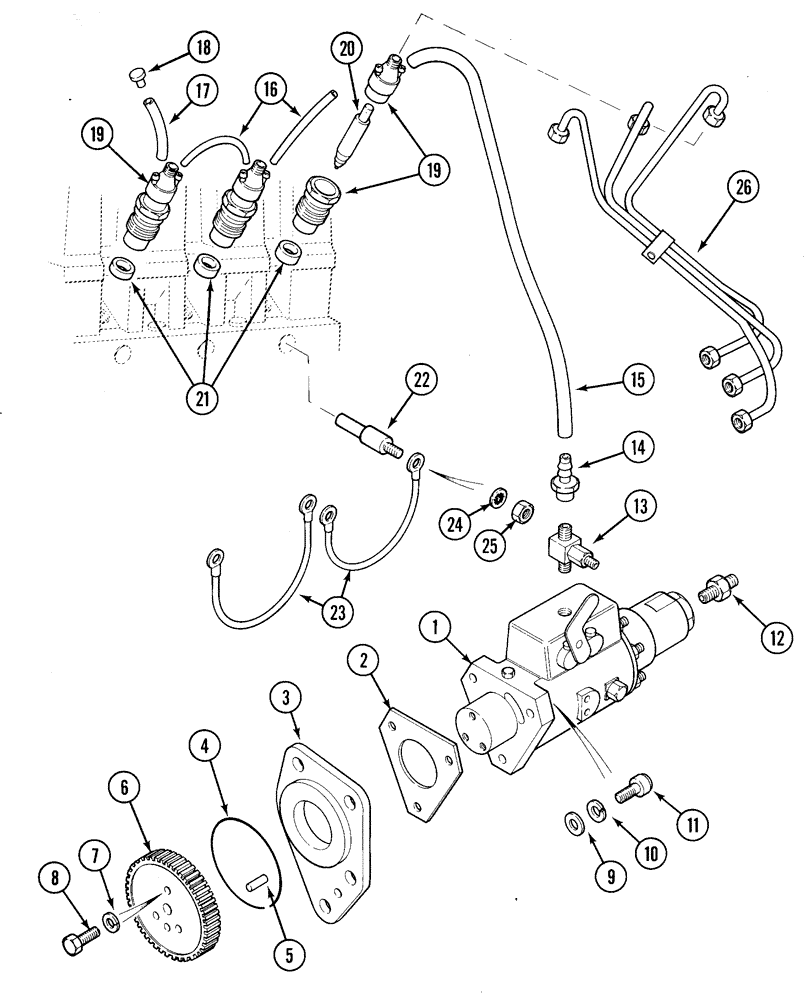

Запчасти Case 1835C (3-14) - FUEL INJECTION SYSTEM, TMD-20 DIESEL ENGINE (03) - FUEL SYSTEM

1

1959781C1

PUMP

fuel injection

1шт.

2

1959786C1

GASKET

, Serial Range: pump-adapter

1шт.

3

1959787C1

ADAPTER

, Serial Range: pump-block

1шт.

4

1959788C1

O-RING,3.383" ID x 3.637" OD x 0.143"

adapter to gear

1шт.

5

1959784C1

PIN

pump gear

1шт.

6

1959783C1

GEAR

pump driven

1шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

8

1959785C1

SCREW

hex, special, Serial Range: gear-pump

3шт.

9

1959993C1

WASHER

flat, special

3шт.

10

1959846C1

LOCK WASHER

WASHER lock

3шт.

11

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 25, 8.8

3шт.

12

218-5056

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

ADAPTER straight, 1/2-20 inch flare x O-ring boss, injection pump inlet

1шт.

13

217-50

TEE,1/8"-27 NPTF Fem x 1/8"-27 NPTF Male Run

pipe, 1/8 inch, brass, pump return

1шт.

14

1959797C1

ADAPTER

straight, special, 1/8 PT x barb end

1шт.

15

1959794C1

FUEL HOSE

, Serial Range: Leak-Off-Pump

1шт.

16

1959792C1

FUEL HOSE,3.20 mm ID x 139.70 mm

3.20 mm ID x 139.70 mm

2шт.

17

1959793C1

FUEL HOSE,3.20 mm ID x 50.80 mm

Leak Off End 3.20 mm ID x 50.80 mm

1шт.

P/N 1959793C1 is being substituted to C2 cap, replace this hose and P/N 1959795C1 plug

1шт.

18

1959795C1

PLUG

barbed, leak-off end

1шт.

A190819

KIT

injector nozzle, 3 needed, comes with one injector, Includes: Ref. 19 - 21

1шт.

19

1981586C1

KIT

INJECTOR fuel, with holder and edge filter

3шт.

20

1959790C1

TIP

injector nozzle

1шт.

21

1959791C1

SHIELD

heat, fuel injector

1шт.

22

1959799C1

GLOW PLUG

PLUG glow

3шт.

23

1959800C1

ELECTRICAL WIRE

WIRE electrical, with eyelets

2шт.

24

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

3шт.

25

825-1405

NUT,M5, Cl 8

3шт.

26

1981587C1

FUEL TUBE

TUBE fuel injection, set of 3 complete with clamp

1шт.
