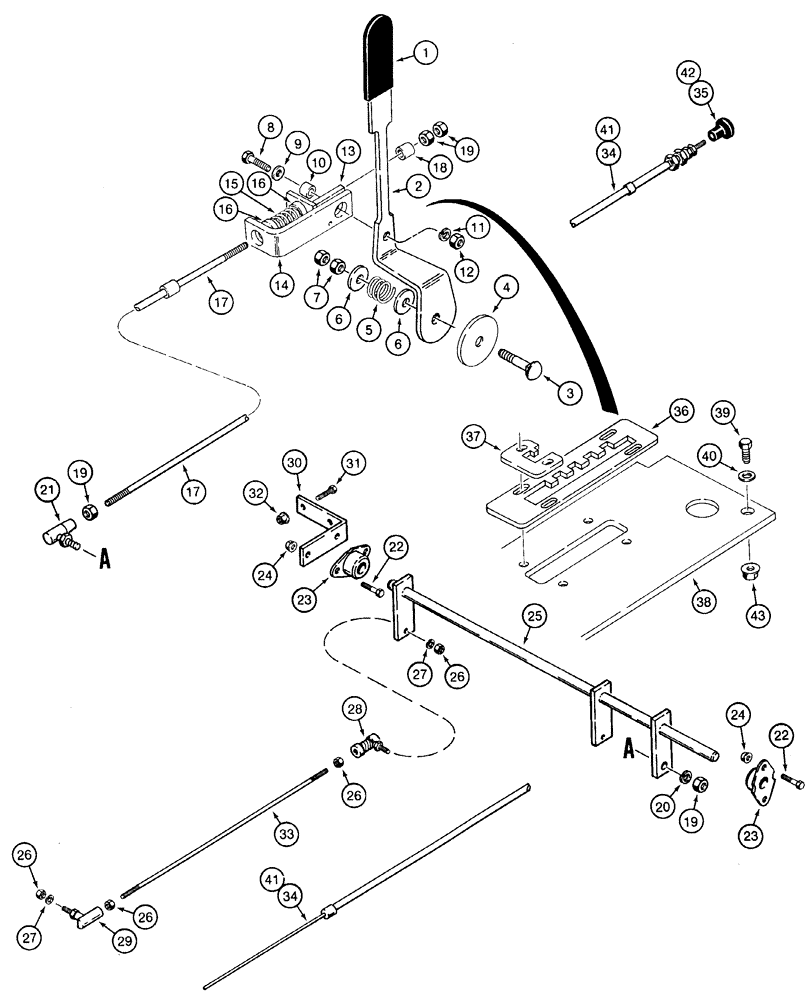

Запчасти Case 1835C (3-10) - GASOLINE ENGINE CONTROLS, PRIOR TO P.I.N. JAF0037367 (03) - FUEL SYSTEM

1

D126613

HANDLE

GRIP lever, vinyl

1шт.

2

H672947

LEVER

throttle control

1шт.

3

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT carriage, 3/8 NC x 2-1/4 inch

1шт.

4

D138421

WASHER

flat, special, throttle lever

1шт.

5

H46334

SPRING

throttle lever

1шт.

6

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

1шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

1шт.

10

S104740

SPACER,5/8" Tube x 5/8"

control lever

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

H672917

BLOCK

BRACKET spring retainer, upper

1шт.

14

H672919

ANGLE

BRACKET spring retainer, lower

1шт.

15

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

throttle rod

1шт.

16

D63156

SPRING CUP

SEAT spring

2шт.

17

H672929

ROD

throttle, lever to crossover shaft

1шт.

18

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

10 ID x 16 OD x 6 mm long

1шт.

19

425-115

NUT,5/16"-24, G5

hex, 5/16 inch NF

4шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

A19105

BALL JOINT

JOINT ball, 5/16 inch NF, throttle rod, lever to crossover shaft

1шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch

4шт.

23

R29593

FLANGED BEARING,1.125" OD x 0.562"

BEARING flange

2шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

25

D126632

SHAFT

crossover

1шт.

26

425-114

NUT,1/4"-28, G5

4шт.

27

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

28

H169920

BALL JOINT

JOINT ball, 1/4 inch NF, crossover shaft to carburetor throttle rod

1шт.

29

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ball, 1/4 inch NF, throttle, Serial Range: rod-carburetor

1шт.

30

D127894

BRACKET

crossover shaft

1шт.

31

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch

2шт.

32

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

33

D129303

ROD

throttle

1шт.

34

D91272

CABLE

choke control, 33 inch, used with Ref. 35 knob, no longer available, order Ref. 41 cable and Ref. 42 knob

1шт.

35

D91274

KNOB

choke control cable

1шт.

36

H435207

LARGE PLATE

PLATE throttle, for plate mounting hardware see Figure 9-36 and 9-38

1шт.

37

H435208

LARGE PLATE

PLATE throttle stop

1шт.

38

H672916

COVER ASSY

PANEL closure, right-hand

1шт.

39

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

40

H426775

WASHER

flat, special, hardened

2шт.

41

H435934

CABLE

choke control, 36 inch, used with Ref. 42 knob

1шт.

42

H435935

KNOB

choke control cable, 1/4 inch NC

1шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.
