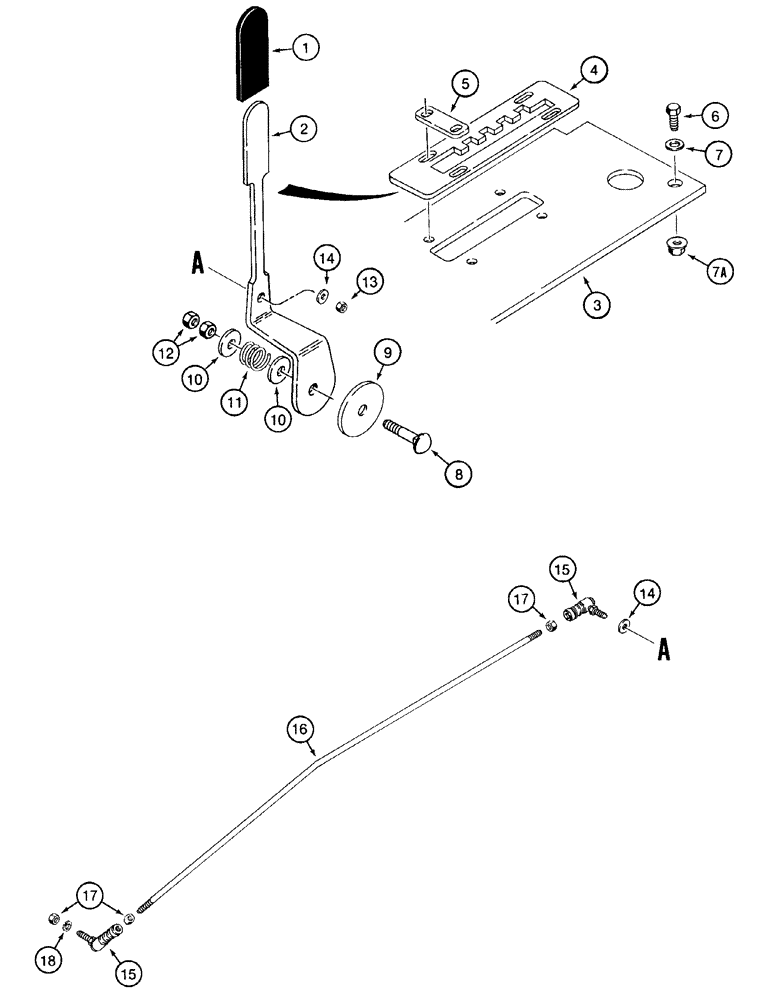

Запчасти Case 1835C (3-08) - DIESEL ENGINE CONTROLS, MODELS WITHOUT CROSSOVER SHAFT (03) - FUEL SYSTEM

1

D126613

HANDLE

GRIP lever, vinyl

1шт.

2

H672947

LEVER

throttle control

1шт.

3

H672916

COVER ASSY

PANEL closure, right-hand

1шт.

4

H435207

LARGE PLATE

PLATE throttle, for plate mounting hardware see Figure 9-36 and 9-38

1шт.

5

H435241

PLATE

throttle stop

1шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

7

H426775

WASHER

flat, special, hardened

2шт.

7a

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT hex serrated flange, 5/16 inch NC

2шт.

8

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT carriage, 3/8 NC x 2-1/4 inch

1шт.

9

D138421

WASHER

flat, special, hardened, throttle lever

1шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

11

H46334

SPRING

throttle control

1шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

230-4714

LOCK NUT,1/4"-28, GA

NUT hex, self-locking, 1/4 inch NF

1шт.

14

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

15

H169920

BALL JOINT

JOINT ball, 1/4 inch NF, throttle control rod

2шт.

16

H435972

ROD

throttle control, lever to fuel injection pump

1шт.

17

425-114

NUT,1/4"-28, G5

3шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
