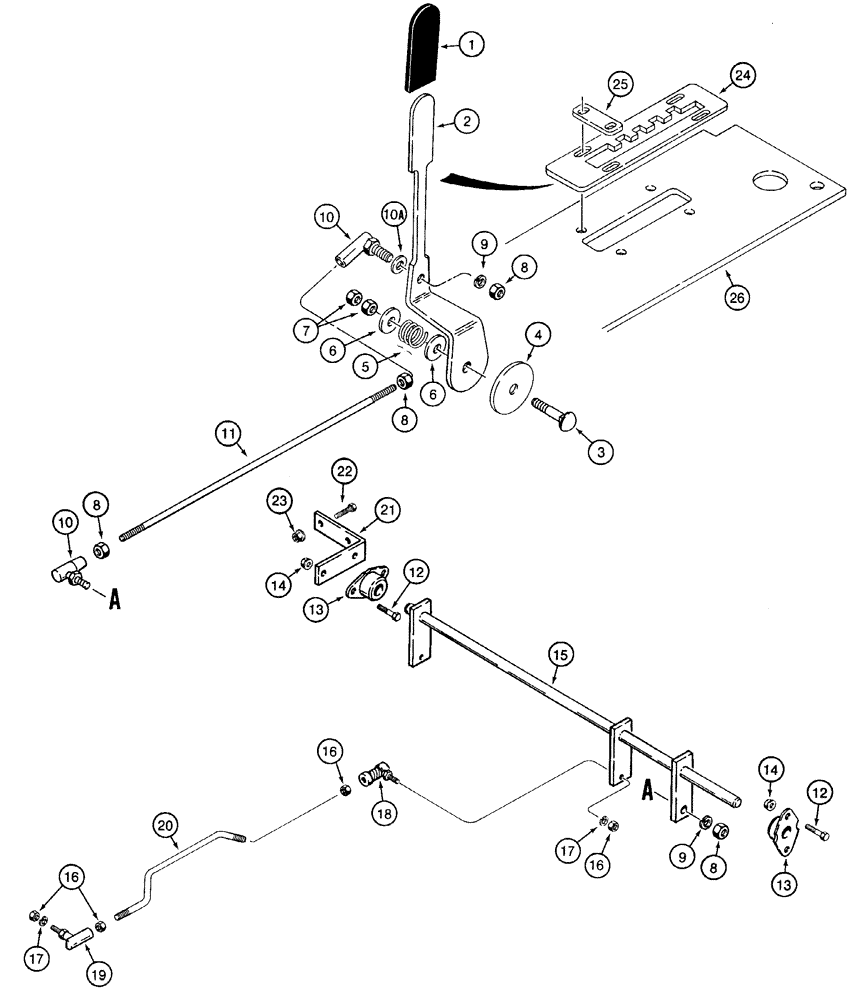

Запчасти Case 1835C (3-06) - DIESEL ENGINE CONTROLS MODELS WITH CROSSOVER SHAFT (ITEM 15) (03) - FUEL SYSTEM

1

D126613

HANDLE

GRIP lever, vinyl

1шт.

2

H672947

LEVER

throttle control

1шт.

3

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT carriage, 3/8 NC x 2-1/4 inch

1шт.

4

D138421

WASHER

flat, special

1шт.

5

H46334

SPRING

throttle control

1шт.

6

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

425-115

NUT,5/16"-24, G5

hex, 5/16 inch NF

4шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

A19105

BALL JOINT

JOINT ball, 5/16 inch NF, throttle control rod, lever to crossover shaft

2шт.

10a

H426775

WASHER

flat, special, hardened

1шт.

11

H435240

ROD

throttle control, lever to crossover shaft

1шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch

4шт.

13

R29593

FLANGED BEARING,1.125" OD x 0.562"

BEARING flange

2шт.

14

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

15

D126632

SHAFT

crossover

1шт.

16

425-114

NUT,1/4"-28, G5

4шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

18

H169920

BALL JOINT

JOINT ball, 1/4 inch NF, crossover shaft to fuel injection pump rod

1шт.

19

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ball, 1/4 inch NF, at fuel injection pump

1шт.

20

D129304

ROD

to fuel injection pump

1шт.

21

D127894

BRACKET

crossover shaft

1шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch

2шт.

23

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

24

H435207

LARGE PLATE

PLATE throttle, for plate mounting hardware see Figure 9-36 and 9-38

1шт.

25

H435241

PLATE

throttle stop

1шт.

26

H672916

COVER ASSY

PANEL closure, right-hand, for plate mounting hardware see Figure 9-36

1шт.
