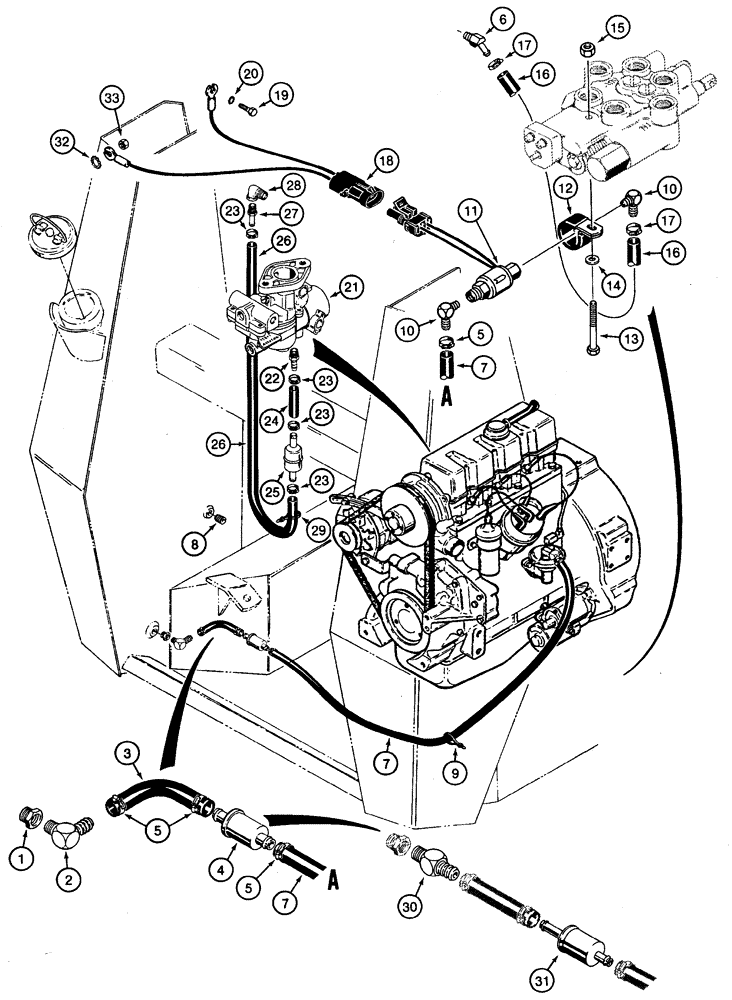

Запчасти Case 1835C (3-04) - FUEL LINES, GASOLINE MODELS ONLY (03) - FUEL SYSTEM

1

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

pipe, 3/8 male x 1/8 inch female

1шт.

2

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

ELBOW, 1/4 barb end x 1/8 inch PT, 90°, Serial Range: -JAF0037367

1шт.

3

D59944

FUEL HOSE,0.25" ID x 7.20", SAE 30R6 or SAE 30R7

Cut From P/N A21561X Bulk Hose, From Tank to Fuel Filter 0.25" ID x 7.20", SAE 30R6 or SAE 30R7

1шт.

4

1701232C91

FILTER

FILTER fuel, Serial Range: -JAF0037367

1шт.

5

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjusting #4, 0.25/0.62 Type M Worm

4шт.

6

217-140

ELBOW,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1/4 stem end x 1/8 inch PT, 45°

1шт.

7

D71599

HOSE,6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

FUEL HOSE, , Cut From P/N A21561X Bulk Hose, From Fuel Filter to Shutoff Valve 6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

1шт.

8

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

hex socket headless, 1/8 inch PT

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

10

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

ELBOW, 1/4 barb end x 1/8 inch PT, 90°, at solenoid valve

2шт.

11

D139832

SOLENOID

fuel shutoff, no longer available, order Ref. 11A and 11B

1шт.

11a

E20127

SOLENOID

fuel shutoff, not shown

1шт.

11b

700708761

ELEC CONNECTOR,Female

CONNECTOR straight, not shown

1шт.

12

515-22270

CLAMP,1-1/16", Insul, 5/16" Bolt

P-type, 1-1/16 inch ID, solenoid valve mounting

1шт.

13

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

hex, 5/16 NC x 2-3/4 inch

1шт.

14

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

15

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

16

D59944

FUEL HOSE,0.25" ID x 7.20", SAE 30R6 or SAE 30R7

Cut From P/N A21561X Bulk Hose, From Shutoff Valve to Fuel Pump 0.25" ID x 7.20", SAE 30R6 or SAE 30R7

1шт.

17

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjusting #4, 0.25/0.62 Type M Worm

2шт.

18

H435602

HARNESS

electrical, solenoid valve

1шт.

19

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 25, 8.8

1шт.

20

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

21

1960015C2

CARBURETOR

gas engine, up-draft

1шт.

22

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

ADAPTER straight, 1/4 barb end x 1/8 inch PT

1шт.

23

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjusting #4, 0.25/0.62 Type M Worm

4шт.

24

1289483C1

HOSE

fuel return to filter, 65 mm/2-1/2 inch long, cut from P/N A21561X bulk hose

1шт.

25

1701232C91

FILTER

FILTER fuel

1шт.

26

H435604

FUEL HOSE,6.35 mm ID x 381.00 mm, SAE 30R6, SAE 30R7

Cut from Bulk Hose, Fuel Return, Filter to Intake Manifold 6.35 mm ID x 381.00 mm, SAE 30R6, SAE 30R7

1шт.

27

H435581

FITTING

ADAPTER straight, special, 0.025 inch orifice

1шт.

28

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

Street 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

30

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

ADAPTER straight, 1/4 barb end x 1/8 inch PT, Start Serial: JAF0037367

1шт.

31

L79756

FILTER, FUEL

FILTER fuel, Start Serial: JAF0037367

1шт.

32

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

33

825-1410

NUT,M10, Cl 8

1шт.

A21561X

HOSE,6.35mm ID x 7620mm L

bulk, 6/1/4 x 13/1/2 x 7620 mm/300 inch long

1шт.

427683C1

HOSE,6.35mm ID x 7620mm L, SAE 30R7

bulk, 6/1/4 x 13/1/2 x 15240 mm/600 inch long, sold by the foot

1шт.
