Запчасти Case 1835C (3-02) - FUEL LINES, DIESEL MODELS ONLY (03) - FUEL SYSTEM

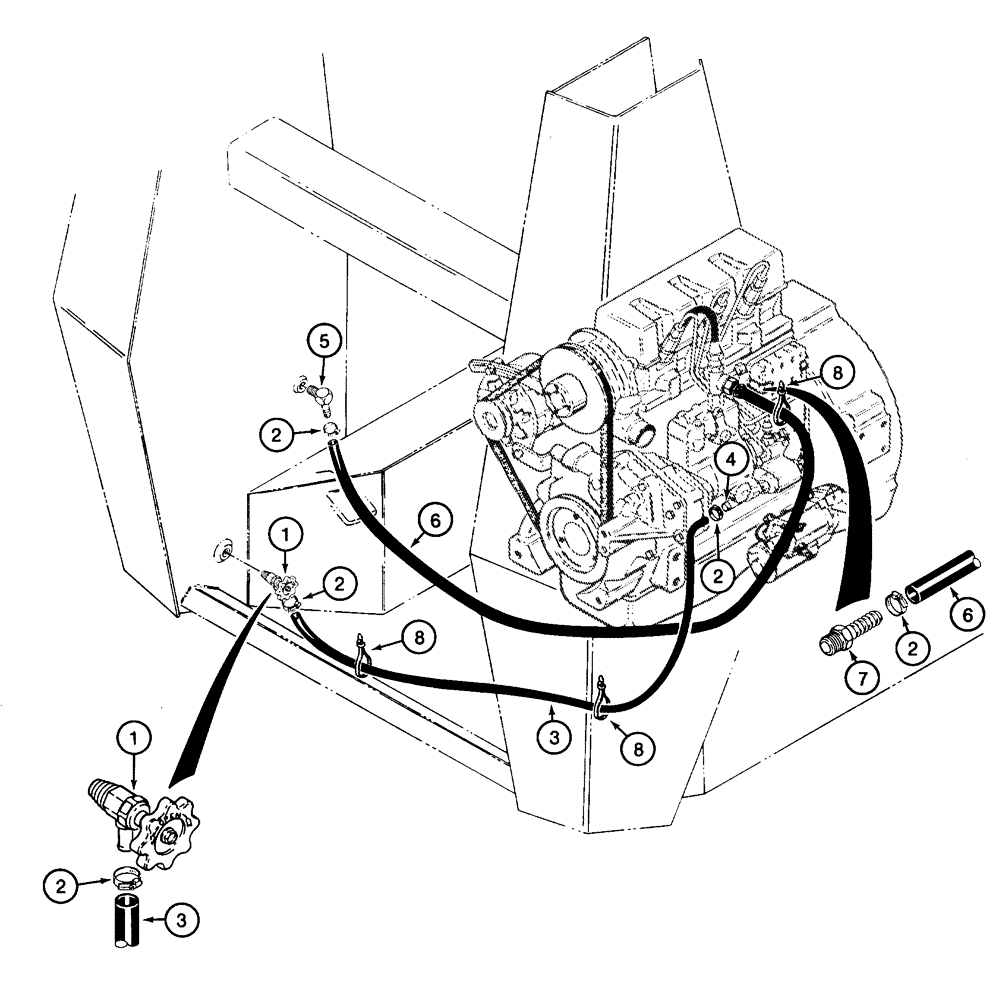

Схема запчастей Case 1835C - (3-02) - FUEL LINES, DIESEL MODELS ONLY (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

1

A154051

COCK, DRAIN

VALVE shutoff, fuel

1шт.

2

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjusting #4, 0.25/0.62 Type M Worm

4шт.

3

D124109

FUEL HOSE

HOSE fuel supply, 1200 mm/47-1/4 inch long, cut from P/N A21562X bulk hose

1шт.

4

D129438

TUBE ASSY.

TUBE fuel supply

1шт.

5

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

ELBOW, 1/4 barb end x 1/8 inch PT, 90°

1шт.

6

D127925

HOSE,6.35 mm ID x 1420.00 mm, SAE 30R6 or SAE 30R7

Fuel Return, Cut from P/N A21561X Bulk Hose 6.35 mm ID x 1420.00 mm, SAE 30R6 or SAE 30R7

1шт.

7

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

ADAPTER straight, 1/4 barb end x 1/8 inch PT

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

3шт.

A21561X

HOSE,6.35mm ID x 7620mm L

bulk, 6/1/4 x 13/1/2 x 7620 mm/300 inch long

1шт.

A21562X

LARGE HOSE,9.65mm ID x 711.2mm L

HOSE bulk, 10/3/8 ID x 7620 mm/300 inch long

1шт.

Выбрано товаров: 10
