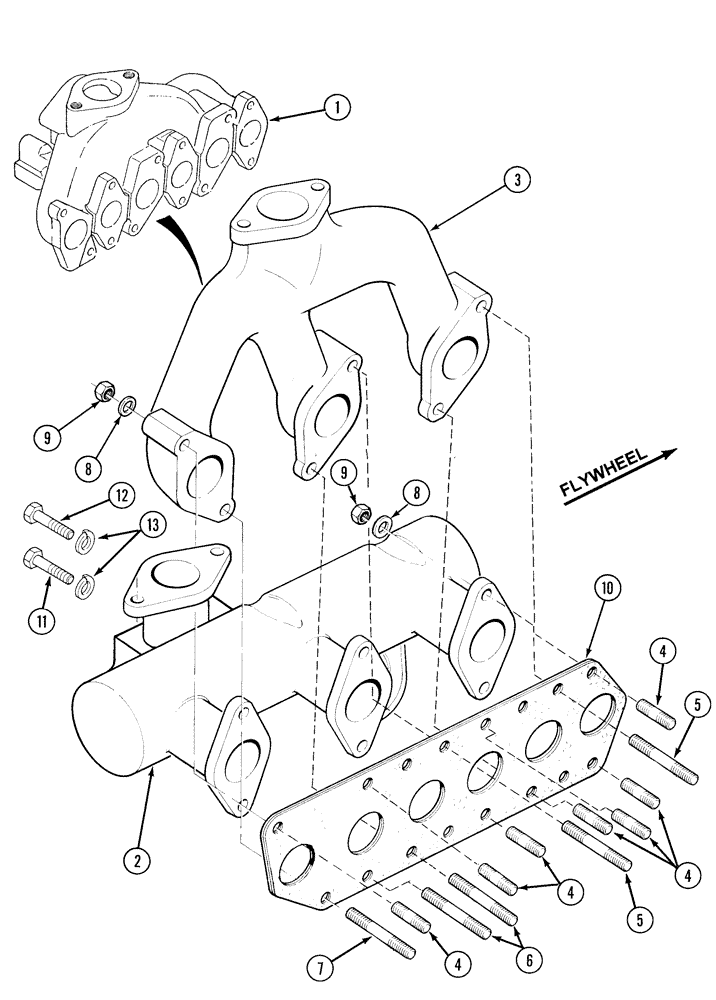

Запчасти Case 1835C (2-58) - INTAKE AND EXHAUST MANIFOLD, TM-20 GASOLINE ENGINE (02) - ENGINE

1

1960005C1

TUBE ASSY.

MANIFOLD intake and exhaust, no longer available, order P/N 132579A1 intake manifold, 132582A1 exhaust manifold, 1, P/N 814-10060 bolt, 1, P/N 814-10070 bolt and 2, P/N 892-11010 washers, Serial Range: -JAF0118550

1шт.

2

132579A1

MANIFOLD

intake, Start Serial: JAF0118550

1шт.

3

132582A1

MANIFOLD

exhaust, Start Serial: JAF0118550

1шт.

4

1959776C1

STUD

manifold mounting, M8 x 40 mm

7шт.

5

1959777C1

STUD

manifold mounting, M8 x 80 mm

2шт.

6

D62833

STUD

mounting, M8 x 55 mm

2шт.

7

1959899C1

STUD

manifold mounting, M8 x 65 mm

1шт.

8

1959993C1

WASHER

flat, special

12шт.

9

825-1408

NUT,M8, Cl 8

12шт.

10

1959774C2

MANIFOLD GASKET

manifold, included in kit P/N 1981593C1, see Figure 2-50

1шт.

11

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

Front manifold connection, used with P/N 132579A1 and P/N 132582A1 manifolds only Hex, M10 x 60, 8.8

1шт.

12

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

hex, 10-1.5 x 70 mm, rear manifold conection, used with P/N 132579A1 and P/N 132582A1 manifolds only

1шт.

13

892-11010

LOCK WASHER,M10

Used with P/N 132579A1 and P/N 132582A1 manifolds only M10

2шт.
