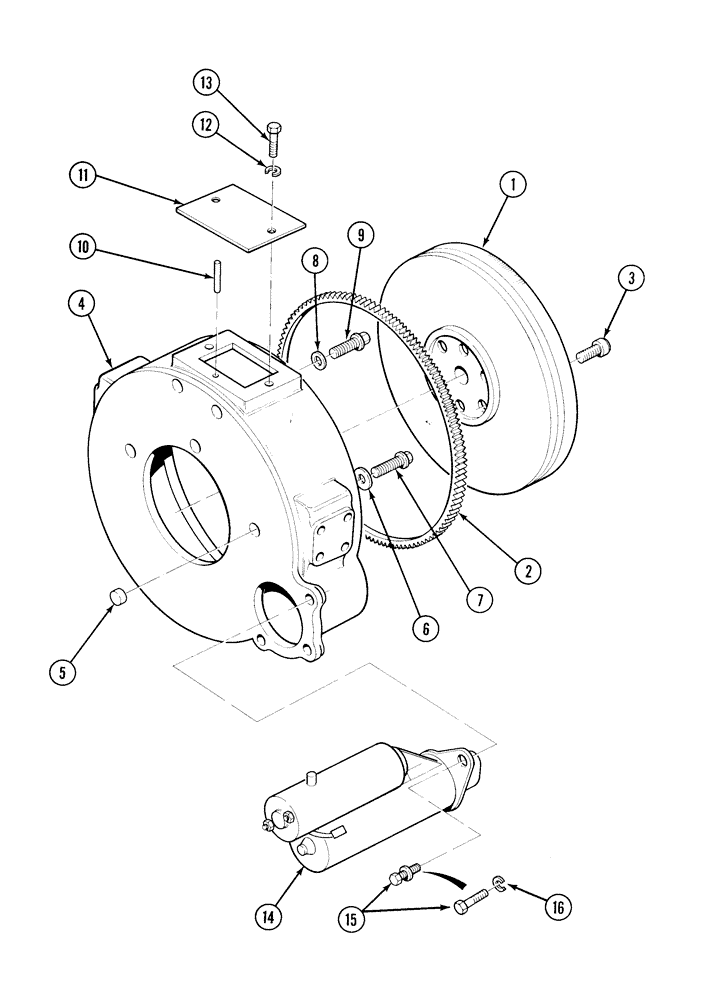

Запчасти Case 1835C (2-56) - FLYWHEEL, HOUSING AND STARTER, TM-20 GASOLINE ENGINE (02) - ENGINE

1960006C1

FLYWHEEL

ASSEMBLY, engine, with ring gear, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

FLYWHEEL, without ring gear, order P/N 1960006C1 flywheel assembly

1шт.

2

1959769C1

GEAR

RING gear

1шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

6шт.

4

1959770C1

HOUSING

flywheel, Serial Range: -96010761

1шт.

4

244032A1

HOUSING

flywheel, Start Serial: 96010761

1шт.

5

1959771C1

DOWEL

RING dowel, Serial Range: housing-flywheel

2шт.

6

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

2шт.

7

828-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

3шт.

9

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

10

1959896C1

PIN

roll, flywheel pointer

1шт.

11

1959897C1

COVER

flywheel timing hole

1шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

2шт.

14

1959930C1

STARTING MOTOR

STARTER ASSEMBLY, gasoline engine, see parts list Figure 4-08, no longer available, order P/N 235907A1 below

1шт.

14

235907A1

STARTING MOTOR

STARTER ASSEMBLY, gasoline engine, see parts list Figure 4-10, Replaces P/N 1959930C1 starter

1шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch, starter to flywheel housing, used with P/N 492-11038 washer, Replaces: P/N 11065 screw with washer

2шт.

16

492-11038

LOCK WASHER,3/8"

used with P/N 413-620 bolt 3/8"

2шт.
