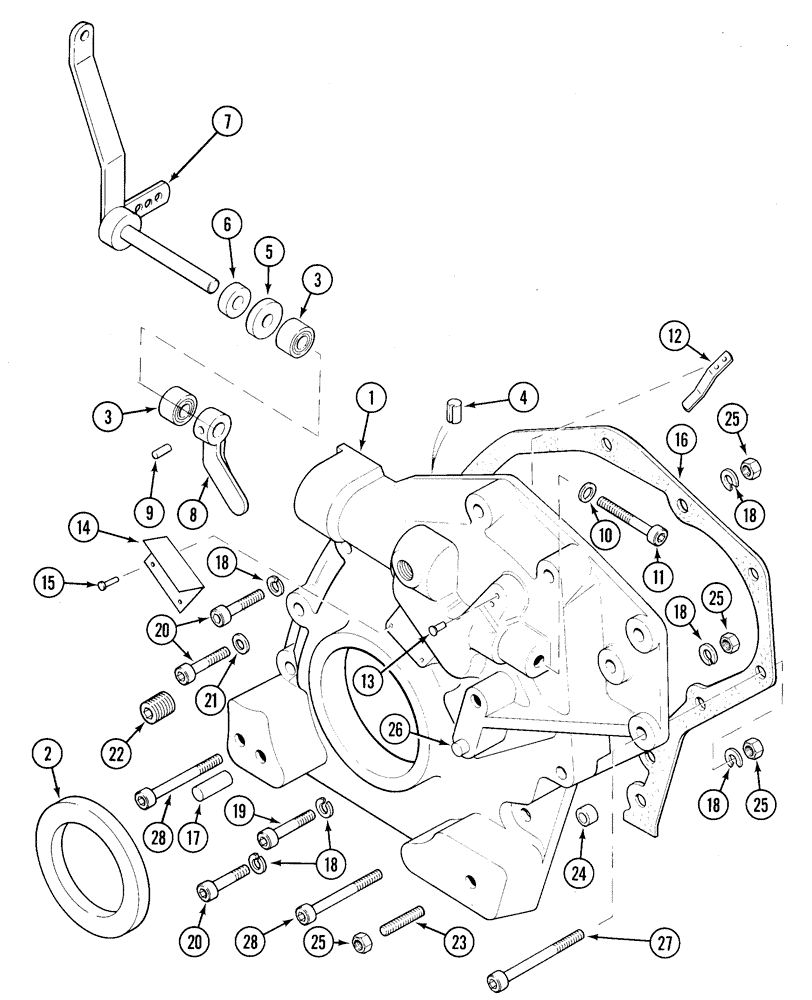

Запчасти Case 1835C (2-54) - GEAR COVER, TM-20 GASOLINE ENGINE (02) - ENGINE

A189175

COVER

KIT service, gear cover, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

COVER timing gear, order kit P/N A189175

1шт.

2

1959709C1

OIL SEAL

oil, crankshaft front, included in kit P/N 1959714C1, see Figure 2-44

1шт.

3

1959869C1

NEEDLE BEARING,0.437" ID x 0.688" OD x 0.5"

governor rocker shaft

2шт.

4

1959870C1

PIN

roll, 1/8 x 1/4 inch, needle bearing stop

1шт.

5

1959871C1

OIL SEAL

oil, governor rocker shaft, inner

1шт.

6

1959872C1

OIL SEAL

oil, governor rocker shaft, outer

1шт.

7

1959873C1

LEVER

governor shaft assembly

1шт.

8

1959874C1

ROCKER ARM

ARM governor rocker

1шт.

9

135-332

GROOVED PIN,5/32" x 3/4", Type F

Pin, Grooved, , full length tapered, rocker arm to shaft 5/32" x 3/4", Type F

1шт.

10

1959845C1

COPPER WASHER

copper

1шт.

11

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

BOLT hex socket, 6-1.0 x 35 mm

1шт.

12

1959877C1

SPRING

governor bumper

1шт.

13

1959878C1

RIVET

round head, governor, Serial Range: bumper-spring

2шт.

14

1959879C1

PLATE

timing marks

1шт.

15

1959880C1

RIVET

PIN drive, pointer to gear cover

2шт.

16

1959712C1

GASKET

timing gear cover, included in kit P/N 1959714C1, see Figure 2-44

1шт.

17

1959713C1

DOWEL

PIN dowel, gear, Serial Range: cover-crankcase

2шт.

18

892-16010

LOCK WASHER,M10, Hvy

lock, 10 mm

8шт.

19

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

SCREW, Hex Soc Hd, M10 x 30, 8.8

1шт.

20

864-10045

HEX SOC SCREW,M10 x 45mm, Cl 8.8

SCREW, Hex Soc Hd, M10 x 45, 8.8

3шт.

21

10298

COPPER WASHER

copper

1шт.

22

1959670C1

PLUG

hex socket, 1/4 inch PT

1шт.

23

1959677C1

STUD

gear, Serial Range: cover-block

2шт.

24

1959679C1

SPACER

tubular

2шт.

25

825-1410

NUT,M10, Cl 8

3шт.

26

1959713C1

DOWEL

PIN dowel

2шт.

27

864-10065

HEX SOC SCREW,M10 x 65mm, Cl 8.8

BOLT, Hex Soc Hd, M10 x 65, 8.8

1шт.

28

864-10090

HEX SOC SCREW,M10 x 90mm, Cl 8.8

2шт.
