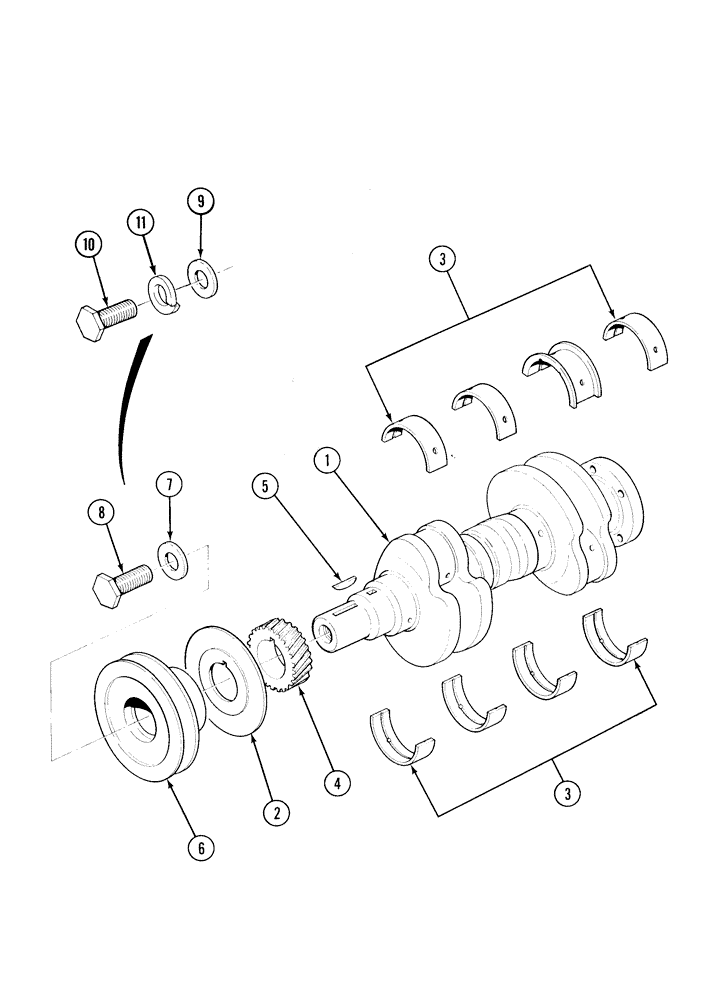

Запчасти Case 1835C (2-46) - CRANKSHAFT, BEARINGS AND PULLEY, TM-20 GASOLINE ENGINE (02) - ENGINE

1

1959960C1

CRANKSHAFT

gasoline engine

1шт.

2

1959689C1

SLINGER

oil

1шт.

3

1959690C1

CRANKSHAFT BEARING

KIT main bearing, standard

1шт.

3

1959948C1

KIT

main bearing, 0.25 mm undersize

1шт.

3

1959953C1

KIT

main bearing, 0.50 mm undersize

1шт.

3

1959954C1

KIT

main bearing, 0.75 mm undersize

1шт.

3

1959955C1

KIT

main bearing, 1.00 mm undersize

1шт.

NSS

NOT SOLD SEPARAT

BEARING thrust, upper

1шт.

NSS

NOT SOLD SEPARAT

BEARING main, upper

3шт.

NSS

NOT SOLD SEPARAT

BEARING main, lower

4шт.

4

1959706C1

GEAR

crankshaft

1шт.

5

1959707C1

KEY

crank gear

1шт.

6

1959834C1

PULLEY

crankshaft, 5/16 inch threaded holes, no longer available, order P/N 244035A1 pulley and Ref. 9 - 11 below, Serial Range: -96010761

1шт.

6

244035A1

PULLEY

crankshaft, M8 holes, Start Serial: 96010761

1шт.

7

1959835C1

WASHER

flat, special, pulley to crankshaft, used with P/N 1959834C1 pulley

1шт.

8

1959836C1

SCREW

special, 16 mm x 35 mm, pulley to crankshaft, used with P/N 1959834C1 pulley

1шт.

9

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Used with P/N 244035A1 pulley

6шт.

10

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

used with P/N 244035A1 pulley Hex, M8 x 40, 8.8

6шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Used with P/N 244035A1 pulley M8

6шт.
