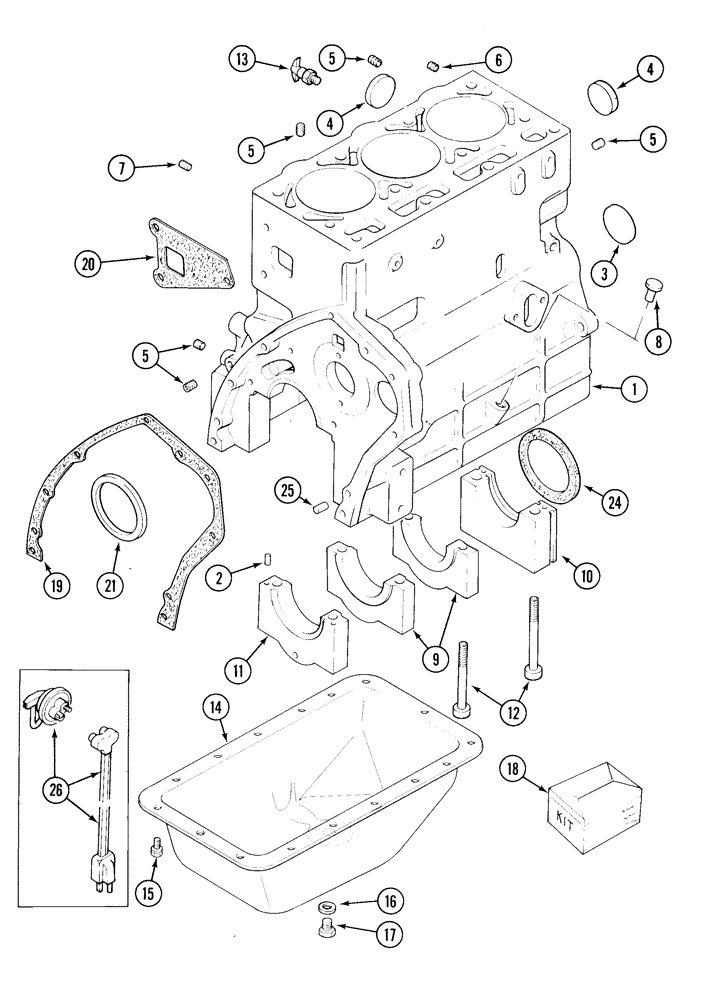

Запчасти Case 1835C (2-44) - CYLINDER BLOCK, TM-20 GASOLINE ENGINE (02) - ENGINE

1959856C1

BLOCK

ENGINE gasoline, TM-20

1шт.

Includes: cylinder block, tappets, camshaft, crankshaft, main bearings, bearing caps, pistons, piston pins, piston rings, connecting rods, rod bearings, thrust plate, cam gear, oil pump, oil gauge support, fuel pump hole cover, and gaskets

1шт.

1959857C1

ENGINE ASSEMBLY

ENGINE gasoline, TM-20, complete service

1шт.

Includes: P/N 1959856C1 plus cylinder head, valve guides, valves and associated parts, rocker arm shaft assembly, push rods, cylinder head cover, gear cover, oil pan, oil filler cap and gaskets

1шт.

1

1959945C1

BLOCK

cylinder, Includes: Ref. 2 - 12

1шт.

2

1959666C1

DOWEL

PIN dowel, front and rear bearing caps

4шт.

3

41-3034

PLUG,Exp, 2 1/8"

expansion, 2-1/8 inch diameter

1шт.

4

1959669C1

PLUG

cup, 1-5/8 inch OD

4шт.

4

1959959C1

PLUG

cup, 1 inch OD

1шт.

5

1959670C1

PLUG

hex socket, 1/4 inch PT

5шт.

6

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

1шт.

7

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

hex socket headless, 3/8 inch PT

1шт.

8

1959673C1

PLUG

button, oil gauge rod hole

1шт.

9

1959859C1

CAP

bearing, intermediate

2шт.

10

1959860C1

CAP

bearing, rear

1шт.

11

1959858C1

CAP

bearing, front

1шт.

12

1959667C1

SCREW

cap

8шт.

13

217-103

COCK, DRAIN

VALVE, 1/4 inch PT

1шт.

14

1959887C2

PAN

oil, center drain, Replaces: P/N 1959887C1

1шт.

15

1959743C1

SCREW

hex washer head

14шт.

16

1959744C1

WASHER

oil pan drain plug

1шт.

17

1959745C1

PLUG

oil pan drain

1шт.

18

1959746C1

OIL PAN GASKET SET

oil pan gasket

1шт.

1959714C1

GASKET KIT

gasket and seal, front, Includes: Ref. 19 - 23

1шт.

19

1959712C1

GASKET

timing gear cover

1шт.

20

1959831C1

GASKET

water pump

1шт.

21

1959709C1

OIL SEAL

oil, crankshaft front

1шт.

22

1959786C1

GASKET

pump to adapter, not shown

1шт.

23

NSS

NOT SOLD SEPARAT

O - RING, not shown

1шт.

24

1959688C1

OIL SEAL

SEAL oil, crankshaft rear

2шт.

25

1959713C1

DOWEL

PIN dowel, gear cover locating

2шт.

26

1981595C1

BLOCK

HEATER block, engine coolant

1шт.
