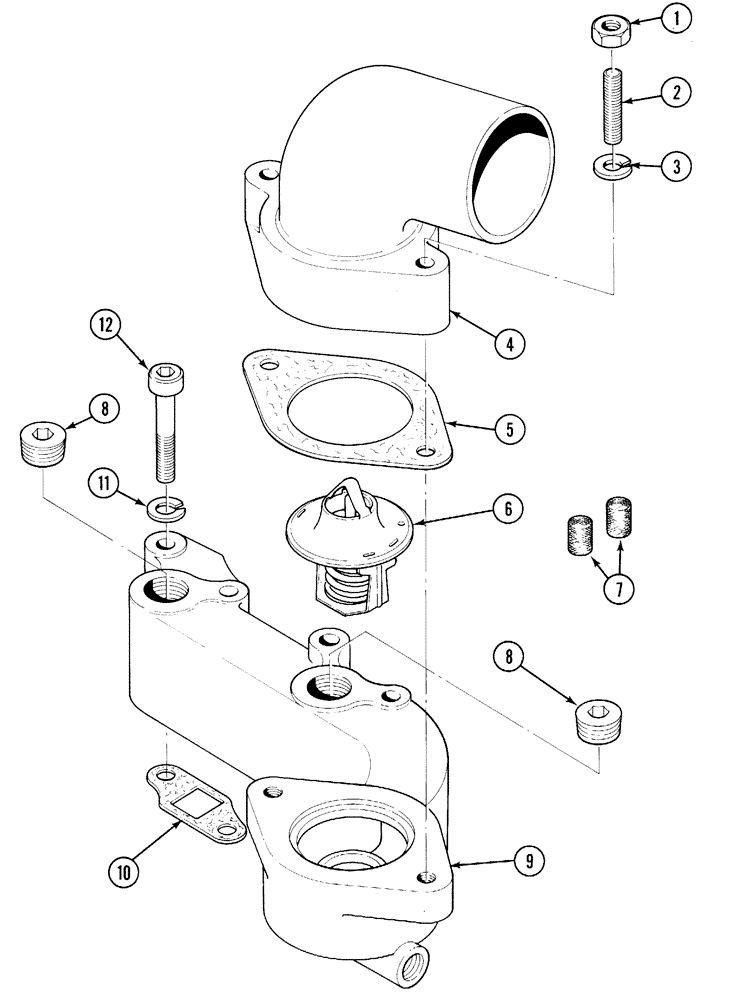

Запчасти Case 1835C (2-34) - WATER HEADER AND THERMOSTAT, TMD-20 DIESEL ENGINE (02) - ENGINE

1

825-1408

NUT,M8, Cl 8

2шт.

2

D62833

STUD

mounting, water, outlet elbow to water header

2шт.

3

892-16008

LOCK WASHER,M8, Hvy

lock, 8 mm

2шт.

4

1959841C1

ELBOW

water outlet

1шт.

5

10553

GASKET

thermostat housing, included in kit P/N 1981593C1, see Figure 2-24

1шт.

6

1959843C1

THERMOSTAT

cooling system

1шт.

7

1959844C1

PLUG

PELLET cooling system protection

2шт.

8

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

hex socket headless, 1/2 inch PT

2шт.

9

1959838C1

HEAT-EXCHANGER

HEADER water outlet

1шт.

10

1959839C2

GASKET

water outlet header, included in kit P/N 1981593C1, see Figure 2-24

2шт.

11

892-16008

LOCK WASHER,M8, Hvy

lock, 8 mm

4шт.

12

864-8070

HEX SOC SCREW,M8 x 70mm, Cl 8.8

BOLT hex socket, 8-1.25 x 70 mm

4шт.
