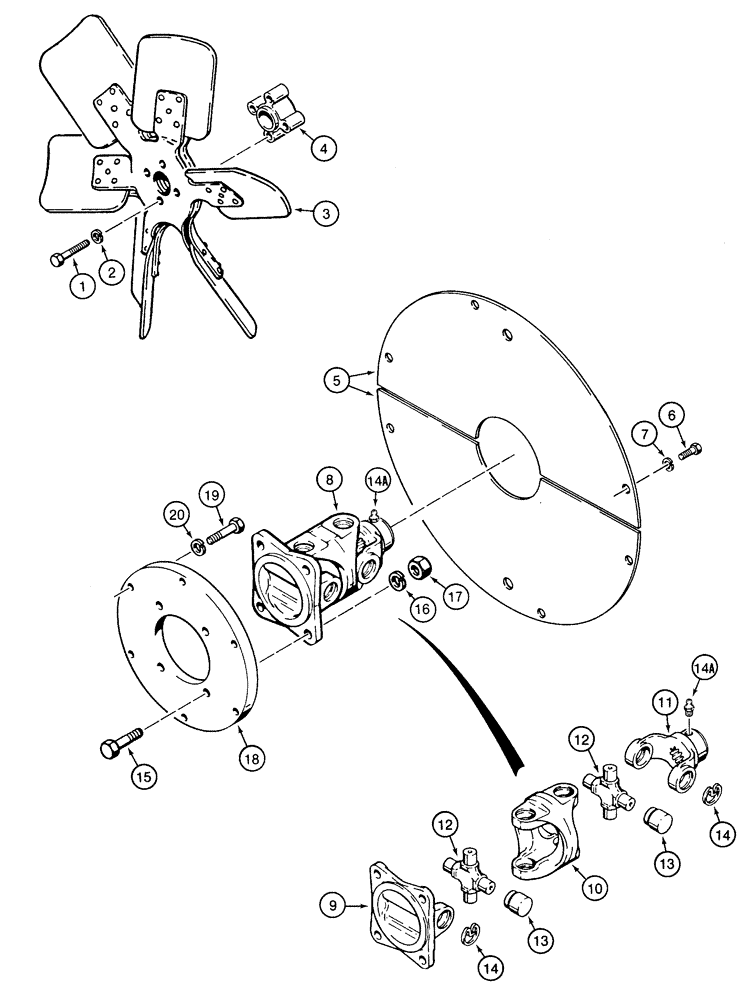

Запчасти Case 1835C (2-16) - FAN, FLYWHEEL COVER, AND DRIVE SHAFT (02) - ENGINE

1

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

hex, 8-1.25 x 45 mm

4шт.

2

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

A184872

FAN

pusher, engine cooling

1шт.

4

A184240

FAN

SPACER pusher fan

1шт.

5

D126395

COVER

flywheel

2шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

7

492-11038

LOCK WASHER,3/8"

6шт.

8

H435187

SHAFT

JOINT ASSEMBLY universal, drive shaft, no longer available, order component parts, Includes: Ref. 9 - 14A

1шт.

9

D70624

YOKE

flanged

1шт.

10

D70626

YOKE

CARRIER universal joint assembly

1шт.

11

H435903

YOKE

YOKE pump end

1шт.

D70629

U-JOINT SPIDER

KIT universal joint

2шт.

12

NSS

NOT SOLD SEPARAT

CROSS universal

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING universal

4шт.

14

11256

SNAP RING

retaining, bearing

4шт.

14a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

15

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

hex, 7/16 NC x 1-1/2 inch

4шт.

16

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

17

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

18

D126396

DRIVE SHAFT

ADAPTER drive shaft

1шт.

19

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

6шт.

20

492-11038

LOCK WASHER,3/8"

6шт.
